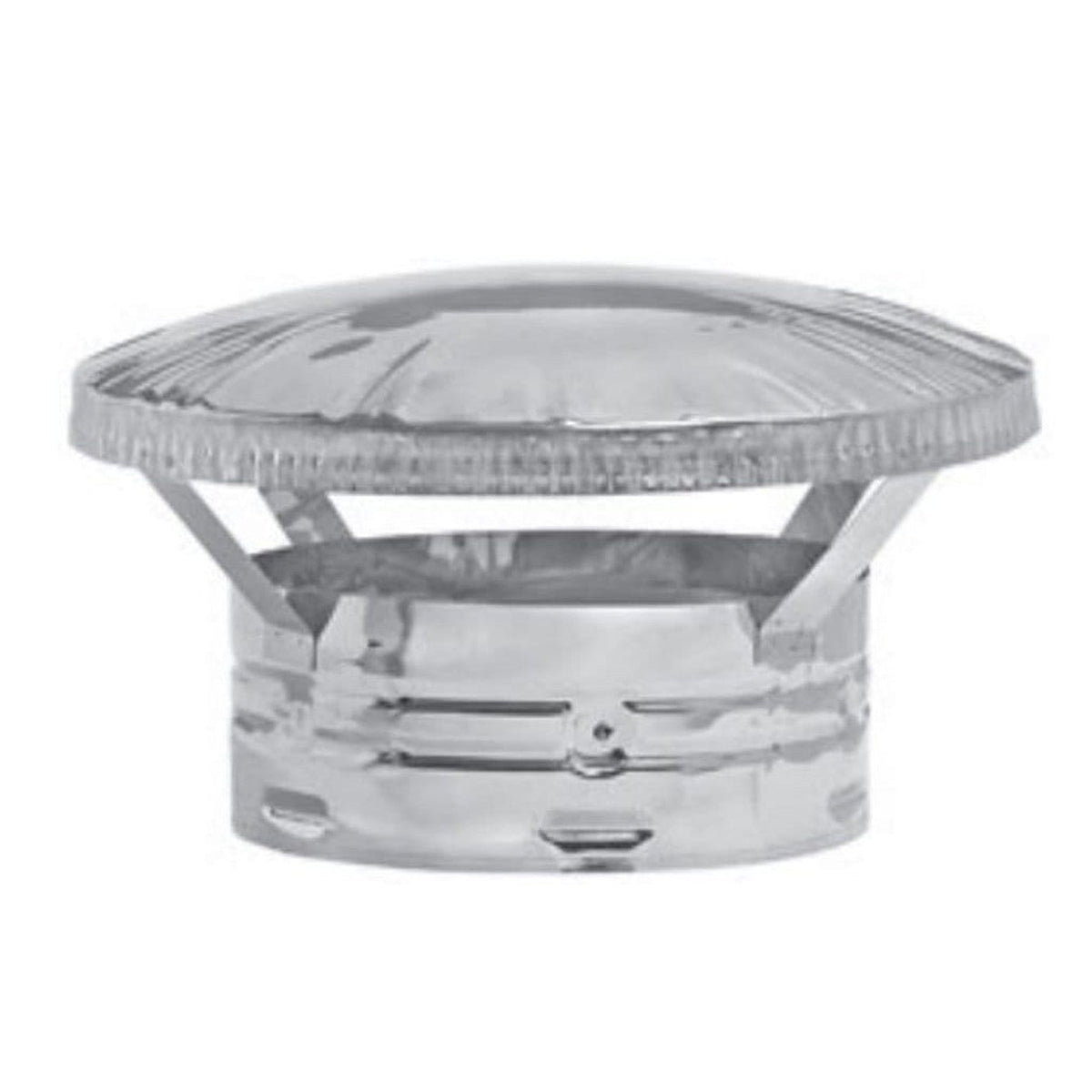

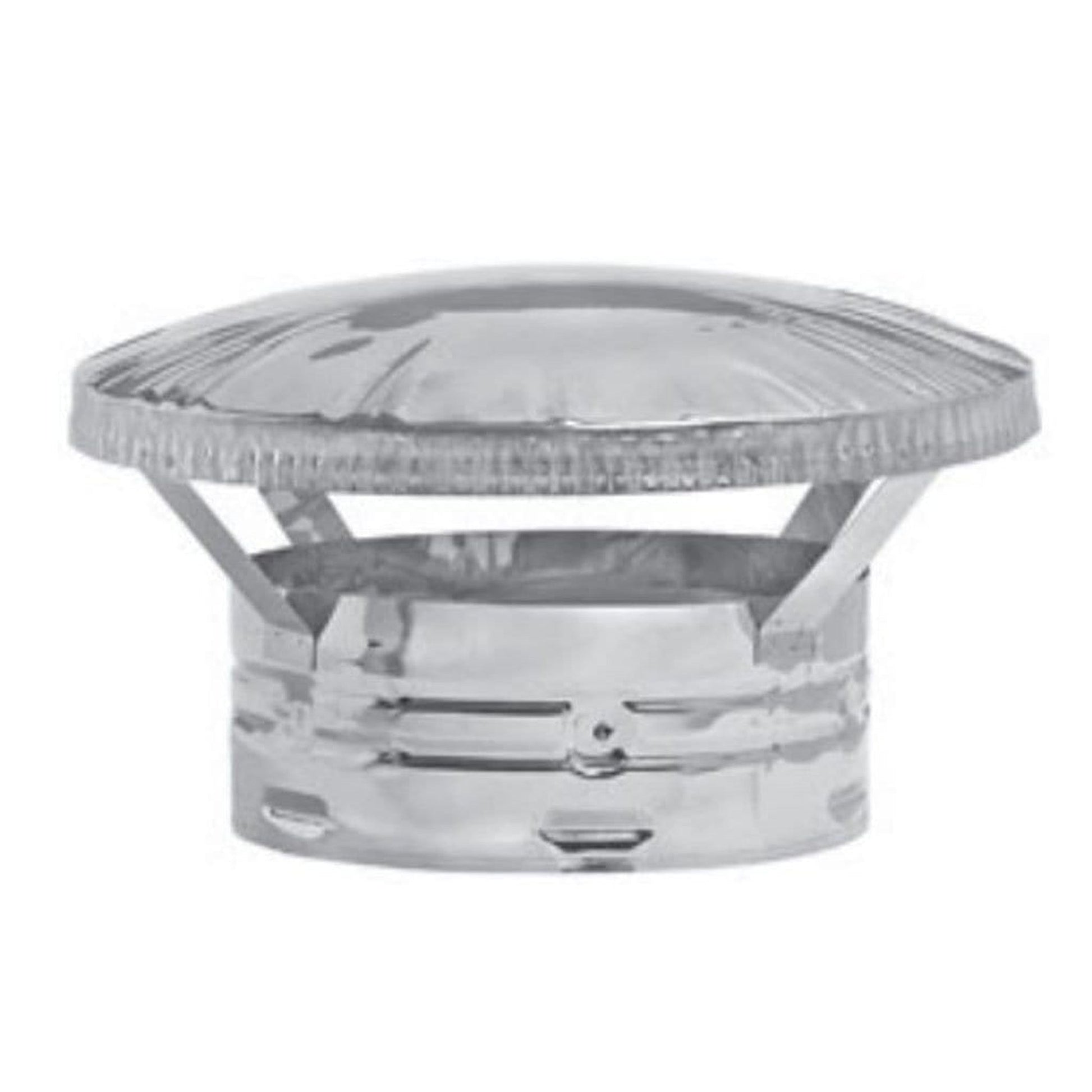

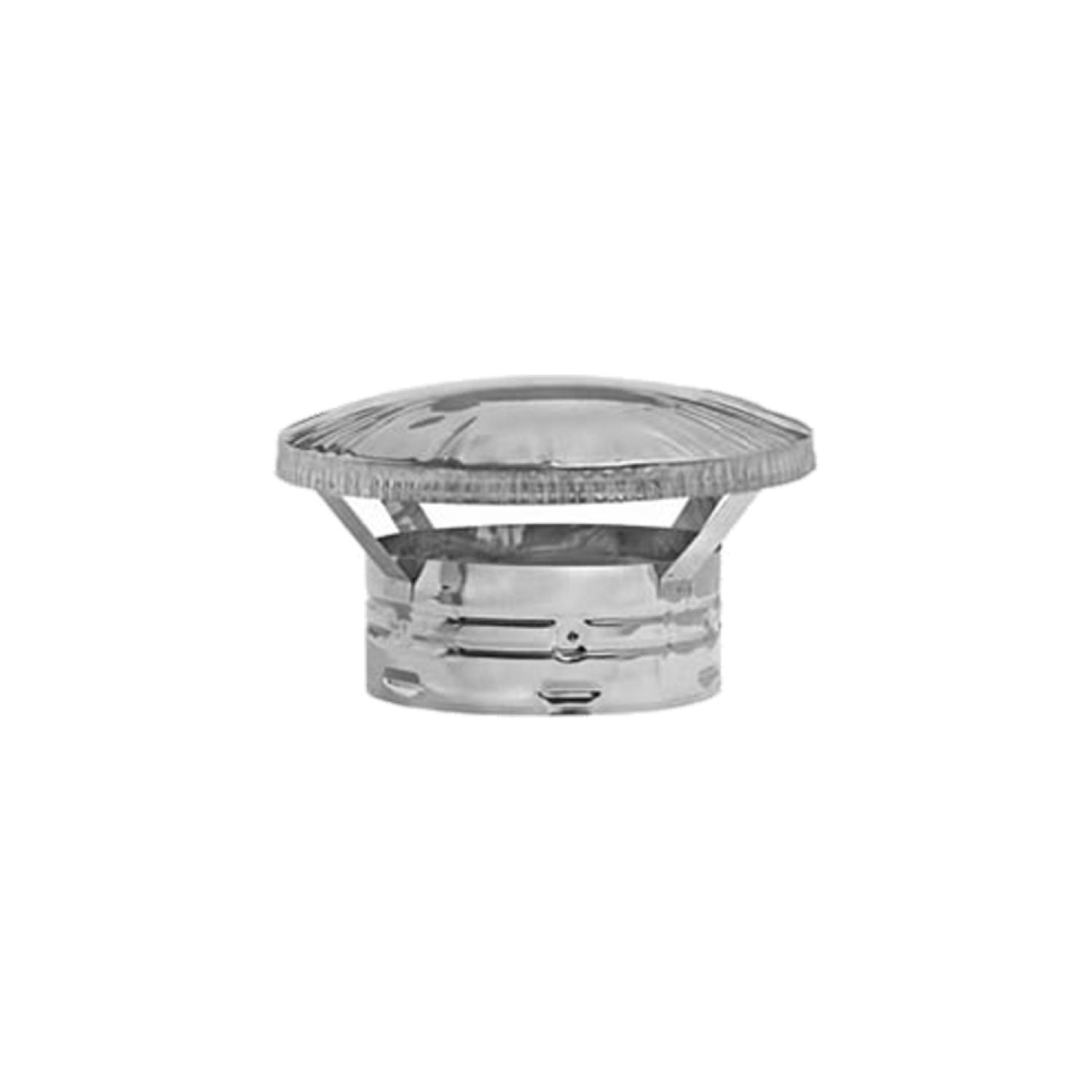

METAL-FAB 8TGRC 8-Inch Temp/Guard All-Fuel Chimney Rain Cap

Product Description

The METAL-FAB 8TGRC is a chimney rain cap suitable for residential and commercial heating appliances that utilize wood, oil, coal, or gas. It meets UL 103HT standards for safety and performance. Constructed from durable stainless steel, the rain cap is compatible with Class A pipes and features an easy-to-use twist-lock connection for simple assembly.

• Compatible with all-fuel heating appliances
• Made from stainless steel for durability
• Simple twist-lock connection for quick assembly

Product Highlights

This rain cap provides reliable protection from rain and debris while allowing proper venting of exhaust gases.

Product Information

Standard Information

• Manufacturer: Metal Fab
• MPN: 8TGRC

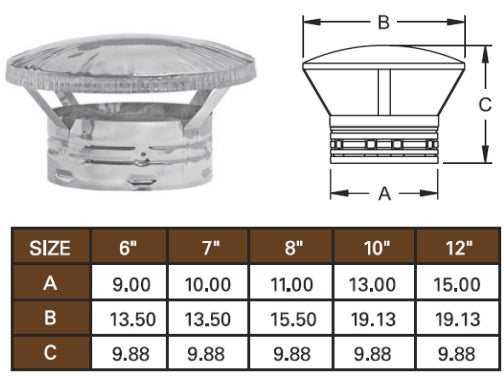

Technical Specifications

• Type: Rain Cap
• Material: 430 Stainless Steel
• Inner Diameter: 8 inches
• Outer Diameter: 11 inches
• Width: 15.5 inches
• Height: 9.88 inches
• Listings/Standards: NFPA 211, UL 103HT
• Application: For use with factory-built double wall chimneys for approved wood, coal, oil, or gas appliances
• Flue Material: 430 Stainless Steel
• Casing Material: 430 Stainless Steel
• Clearance: Minimum of 1.5 inches to combustibles for 6 to 8 inch pipes
• Color: Silver
• Weight: 3.60 lbs
