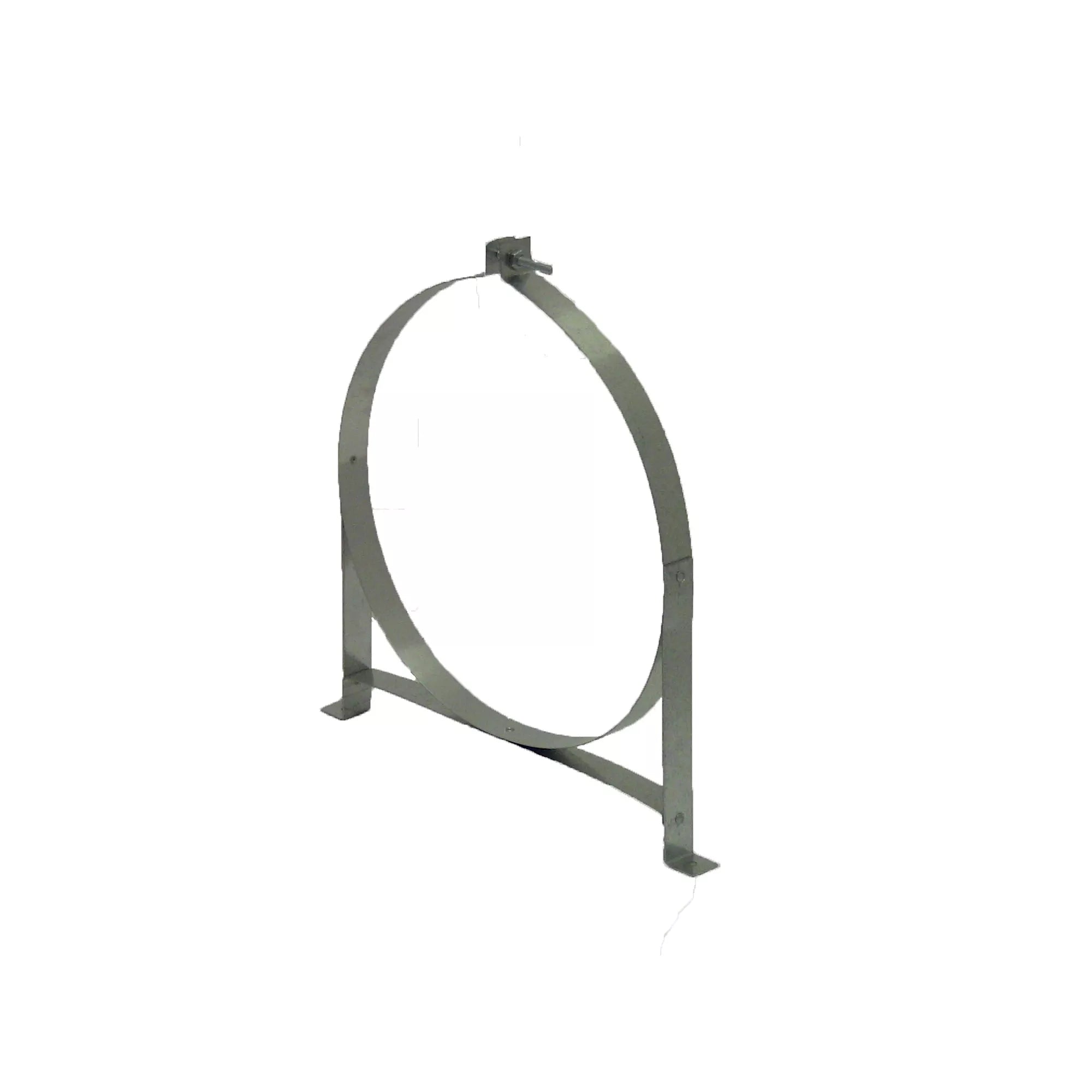

Metal-Fab 8MWB B-Vent Wall Band 8 inches

Product Description

The METAL-FAB 8MWB B-Vent Wall Band is listed by Underwriters Laboratories for use with approved category 1 gas furnaces, heaters, and boilers. Its double wall design enables use in homes and commercial buildings at close clearance to combustible. Metal-Fab's B-vent design incorporates features that make installation quick, easy, and safe.

• Elimination Of Sharp Edges By Hemming The Flue and Casing.
• Assembly & Disassembly, Without Tools, Using Positive Twist Lock.
• 360° Rotation Of Small Diameter Fittings Using Swivel Tees, Wyes, and Elbows.

Product Highlights

This B-Vent wall band features a double wall design and easy assembly with positive twist lock. It is UL listed for use with approved Category 1 gas appliances.

Product Information

Standard Information

• Brand: METAL-FAB
• Manufacturer Part Number: 8MWB
• Country of Origin: USA

Technical Specifications

• Brand: Metal-Fab
• Composition: Outer wall is constructed of Galvanized Steel .018" thick G90 Steel for sizes 3" to 14" diameter, .024" thick G90 for sizes 16" to 30" diameter, The inner wall is constructed of Aluminum alloy .012" thick for sizes 3" to 8" diameter, .018" thick f
• EAN: 0622417123211
• Gauge: Outer Wall - 26 GA, Inner Wall - 30 GA
• Height: 13
• Inside Diameter: 8"
• Length: 14.3
• Prop 65: Yes
• UL Listed: Yes
• UPC: 622417123211
• Width: 9.3
• Option: Wall Band
• Vent Size: 8"
• Applicable Standard: UL 441
• Size: 8''
• Material Thickness: 0.012" (Inner Wall), 0.018" (Outer Wall)
• Material: Aluminum Alloy (Inner Wall), G90 Galvanized Steel (Outer Wall)
• Operating Temperature: 530 Deg F
• Application: Gas Furnace, Heater, Fireplace and Boiler
