Product Description

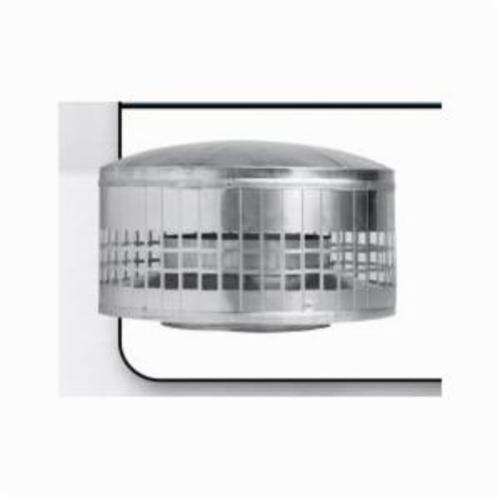

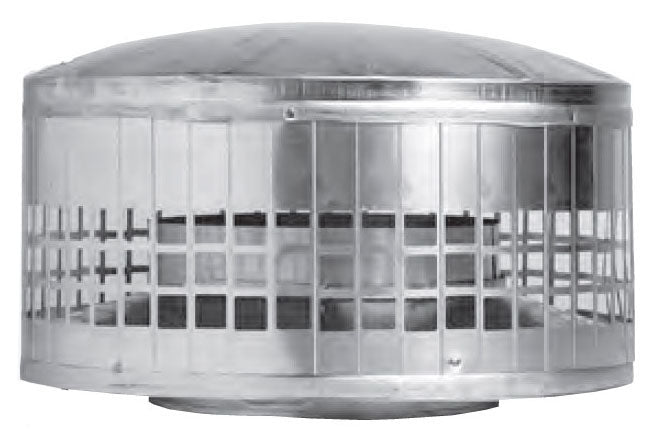

The Metal-Fab 8MC is an eight-inch Type B gas vent cap designed for venting gas appliances. This double-wall, round vent cap effectively guides exhaust from gas boilers, fireplaces, furnaces, and unit heaters.
- Type: Double Wall, Round
- Material: Aluminum Alloy Flue with G90 Galvanized Steel Casing
- Height: Nine and one-quarter inches
Product Highlights
This vent cap includes positive twist-lock connections for secure installation and is compliant with UL 441 and NFPA 54/211 standards.
Product Information
Standard Information
-
Manufacturer: Metal-Fab
-
Model Number: 8MC
Technical Specifications
-
Inner Wall Material Thickness: 0.012 inches
-
Outer Wall Material Thickness: 0.018 inches
-
Applicable Standard: UL 441, NFPA 54/211
-
Weight: 2.25 lbs
-
Fit Duct Size: 8 inches
-
Cap Height: 9.25 inches
-
Series: MC Series
-
Suitable for Use With: Double Wall Type-B Gas Vent System
