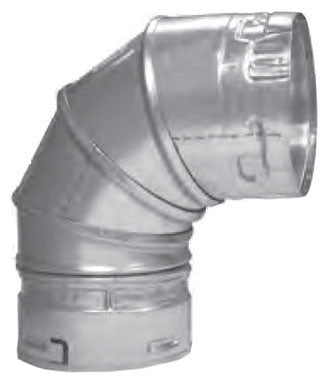

Metal-Fab 8M90 8 x 8, 0.012 Aluminum Alloy Flue, 0.018 G90 Galvanized Steel Casing, 90D, Adjustable, Double Wall, Round, Short Radius, 5-Piece Type B Gas Vent Elbow

Product Description

The Metal-Fab 8M90 is an adjustable double wall elbow designed for type B gas vent systems. It features an eight-inch diameter and a ninety-degree angle, accommodating various venting requirements. The elbow comprises a 0.012-inch aluminum alloy inner wall and a 0.018-inch G90 galvanized steel outer wall, ensuring durability and safety.

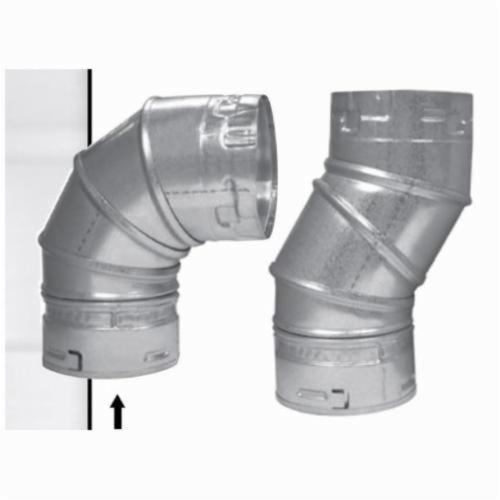

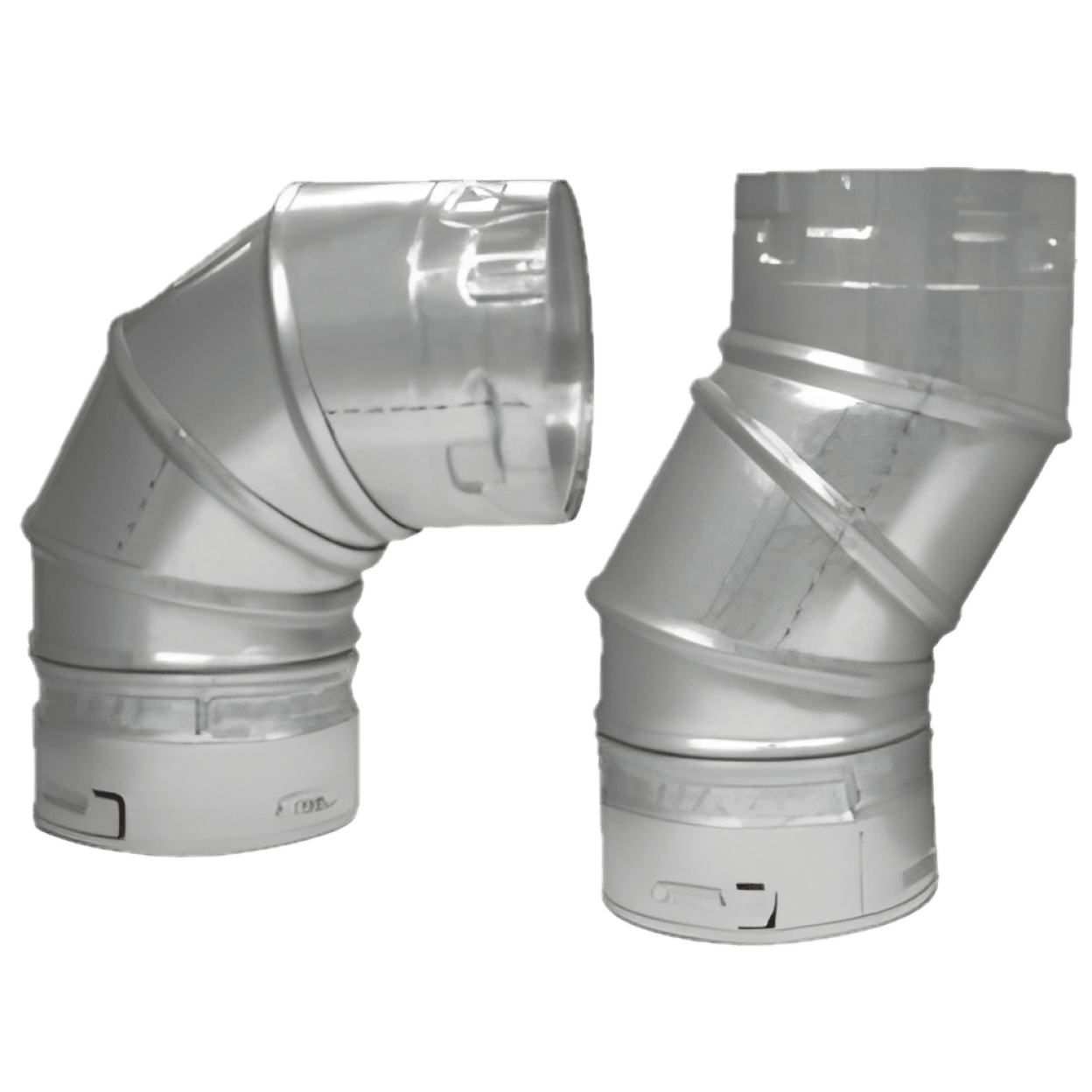

• Adjustable from zero to ninety degrees.
• Meets UL 441 and NFPA standards for safety.
• Used in gas boilers, fireplaces, and furnaces.

Product Highlights

This product is ideal for venting applications, providing a reliable solution for gas vent systems used in residential and commercial settings.

Product Information

Standard Information

• Brand: Metal-Fab
• MPN: 8M90

Technical Specifications

• Type: Adjustable, Double Wall, Round, Short Radius, 5-Piece
• Angle: 90 Degree
• Size A: 8 Inch
• Size B: 8 Inch
• Material: Aluminum Alloy (Flue), G90 Galvanized Steel (Casing)
• Material Thickness: 0.012 Inch (Inner Wall), 0.018 Inch (Outer Wall)
• Applicable Standard: UL 441, NFPA 54/211
• Weight: 3.5 lbs
