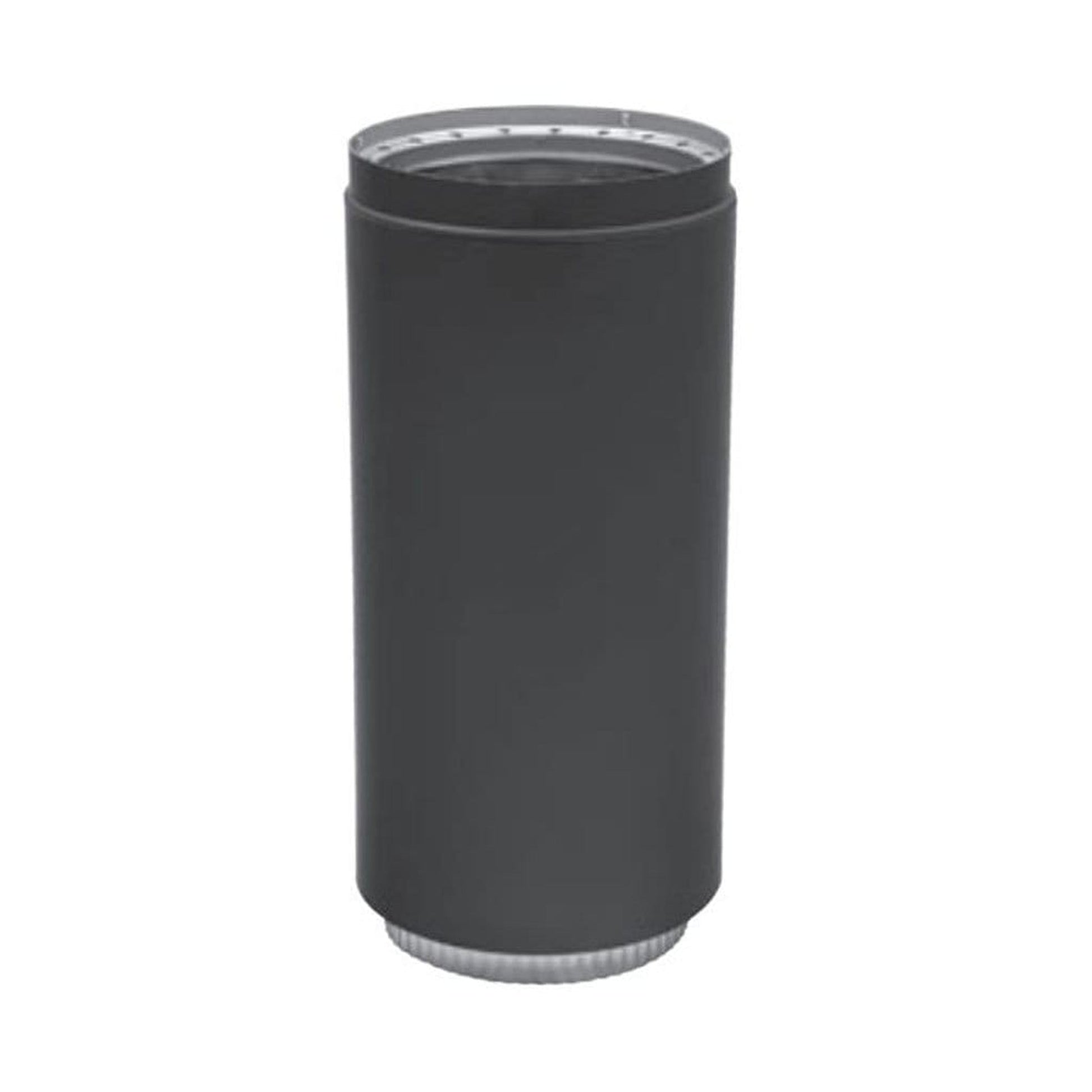

Metal-Fab 8DWB8A Black Pipe 8 inches x 8 inches Adj. Dbl. Wall

Product Description

The Metal-Fab 8DWB8A black stovepipe connects a stove to the Temp Guard chimney in open space. Tested to UL standard 103, this double wall stovepipe is designed with a 6" clearance to combustibles. It features a durable flat-matte black finish and a continuous laser-welded flue for a clean appearance.

• Perfect companion to Temp/Guard Chimney.
• Single Wall Stovepipe and the casing of Double Wall Stovepipe are made of heavy-duty 24 gauge steel.
• Continuous laser-welded flue and casing allow for a clean appearance and installation

Product Highlights

Connects stove to chimney, tested to UL standard 103, with laser-welded flue.

Product Information

Standard Information

• Brand: METAL-FAB
• Manufacturer Part Number: 8DWB8A

Technical Specifications

• Model: 8DWB8A
• Application: Designed for installations from the appliance/stove to high-temperature chimney products. The stovepipe is located in the same room as the appliance/stove and is not permitted to pass through ceiling or walls.
• Inner Flue Material: 6" - 8"/.012, 430 Stainless Steel
• Outer Flue Material: 6" - 8"/.024, Galvaneal Steel

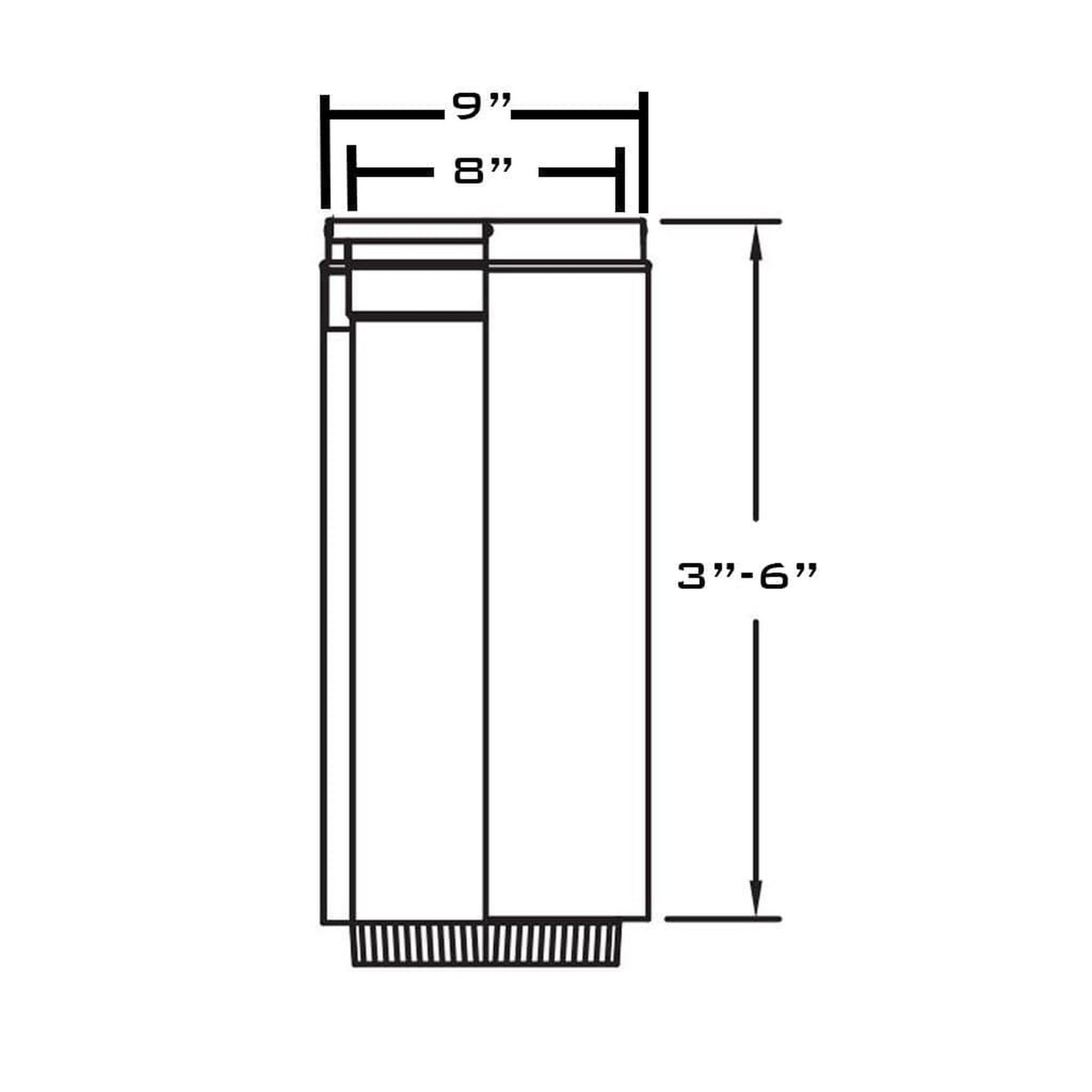

• Inner Diameter: 8"
• Outer Diameter: 9"
• Height/Length: 7"

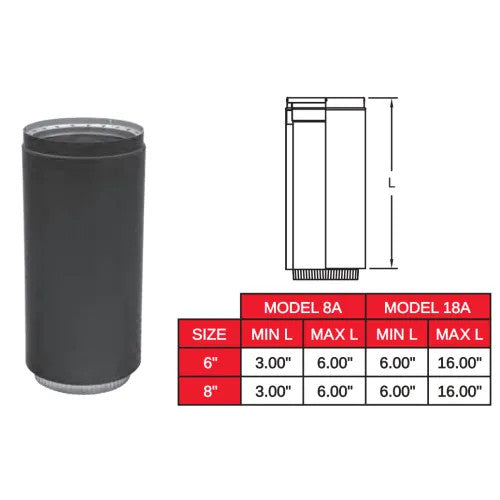

• Adjustable: Minimum 3" to Maximum 6"
• Manufacturer: Metal Fab
• Product: Pipe
