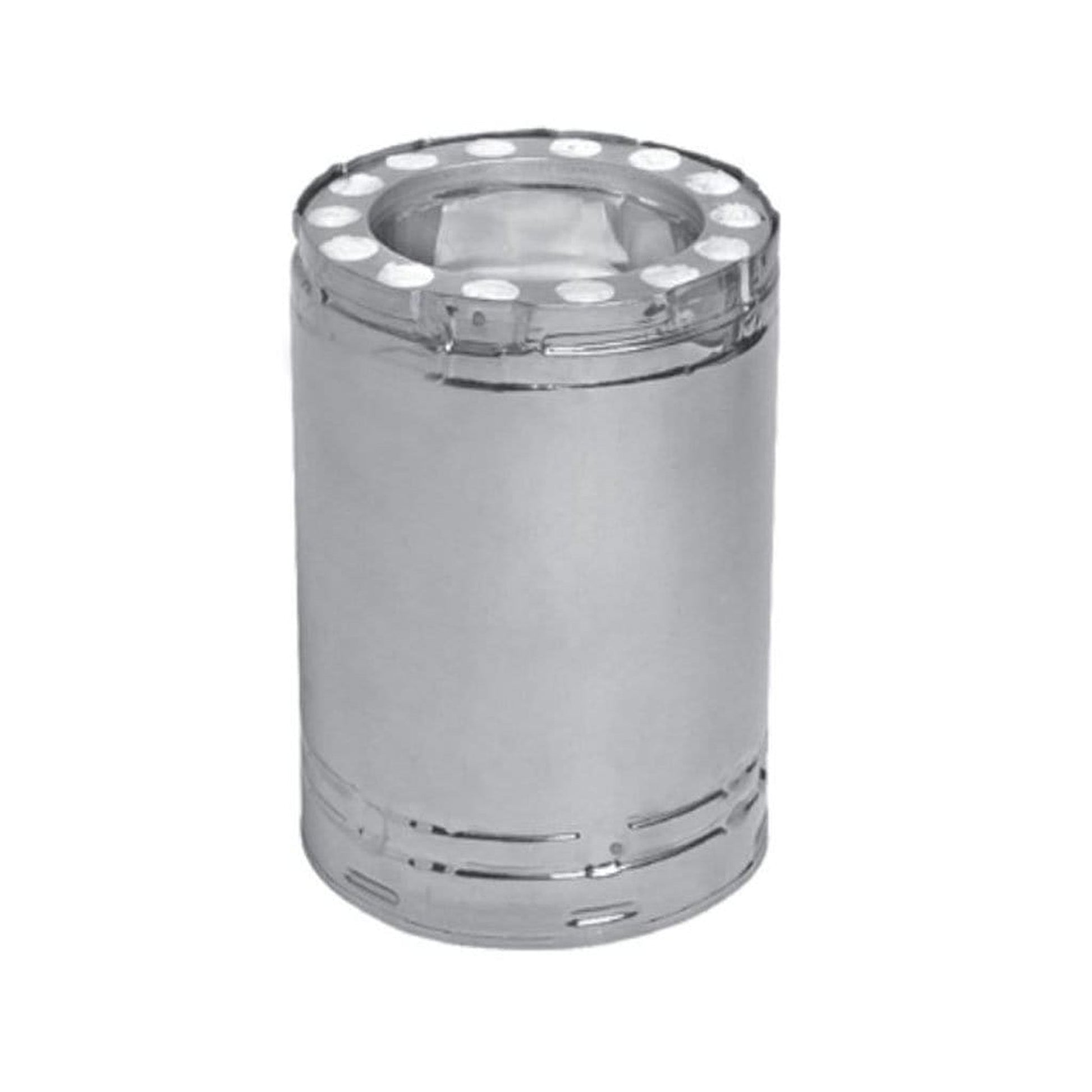

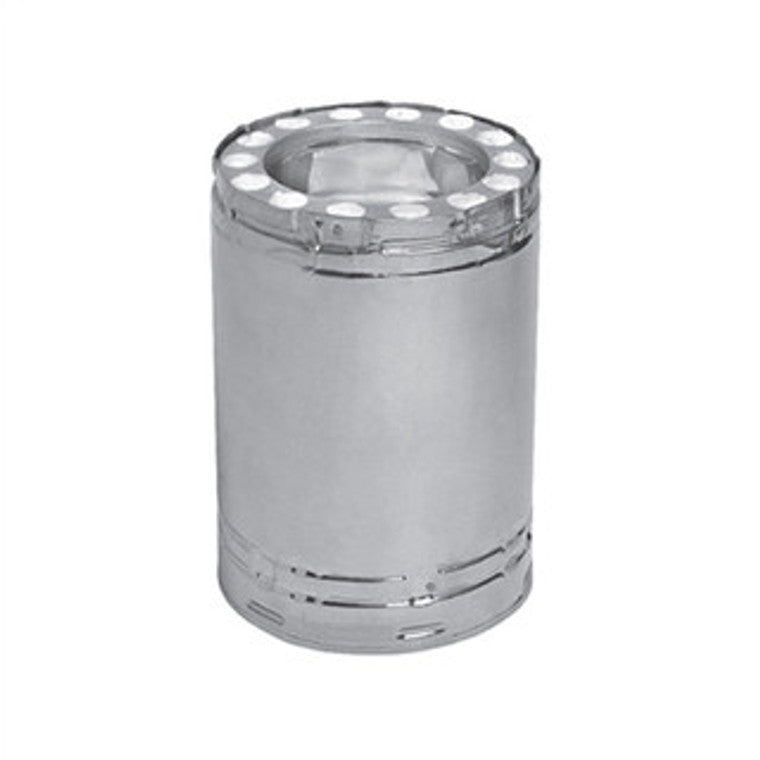

Metal-Fab 7TGS6 Temp Guard Chimney Pipe 7 Inch x 6 Inch

Product Description

The Metal-Fab Temp Guard Chimney Pipe, model 7TGS6, is a durable solution for residential and building heating appliances that utilize wood, oil, coal, or gas. This chimney pipe meets UL standard 103HT and is capable of handling continuous temperatures up to one thousand degrees Fahrenheit and intermittent temperatures reaching two thousand one hundred degrees Fahrenheit. The pipe features a convenient twist-lock connection for straightforward assembly and alignment, making installation more efficient. The inclusion of ceramic fiber insulation ensures that flue gases are evenly distributed for optimal performance.

• Features ceramic fiber insulation for consistent temperature management.
• Lightweight design for easier handling and installation.
• Positive twist-lock for secure and simple assembly.

Product Highlights

Product Information

Standard Information

• Application: For factory-built double wall chimney with wood, coal, oil, or gas appliances.
• Flue Material: 0.015 Stainless Steel grade 430.

Technical Specifications

• Listings/Standards: NFPA 211, UL 103HT.
• Inner Diameter: 7 inches.
• Outer Diameter: 10 inches.
• Height/Length: 6 inches.
• Clearances: 1.5 inches minimum to combustibles.
