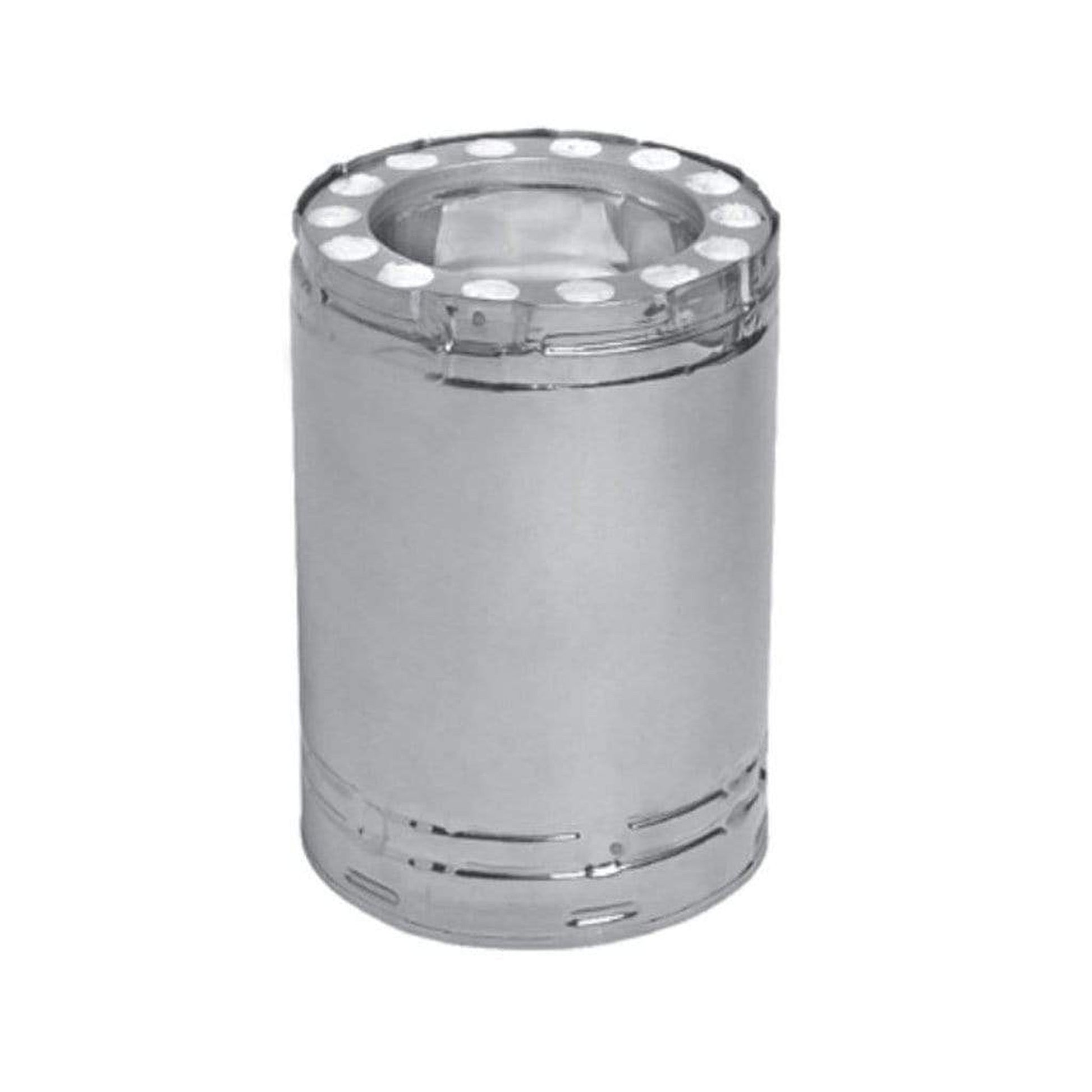

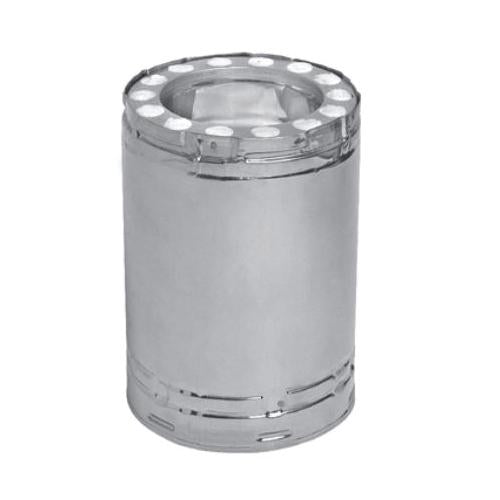

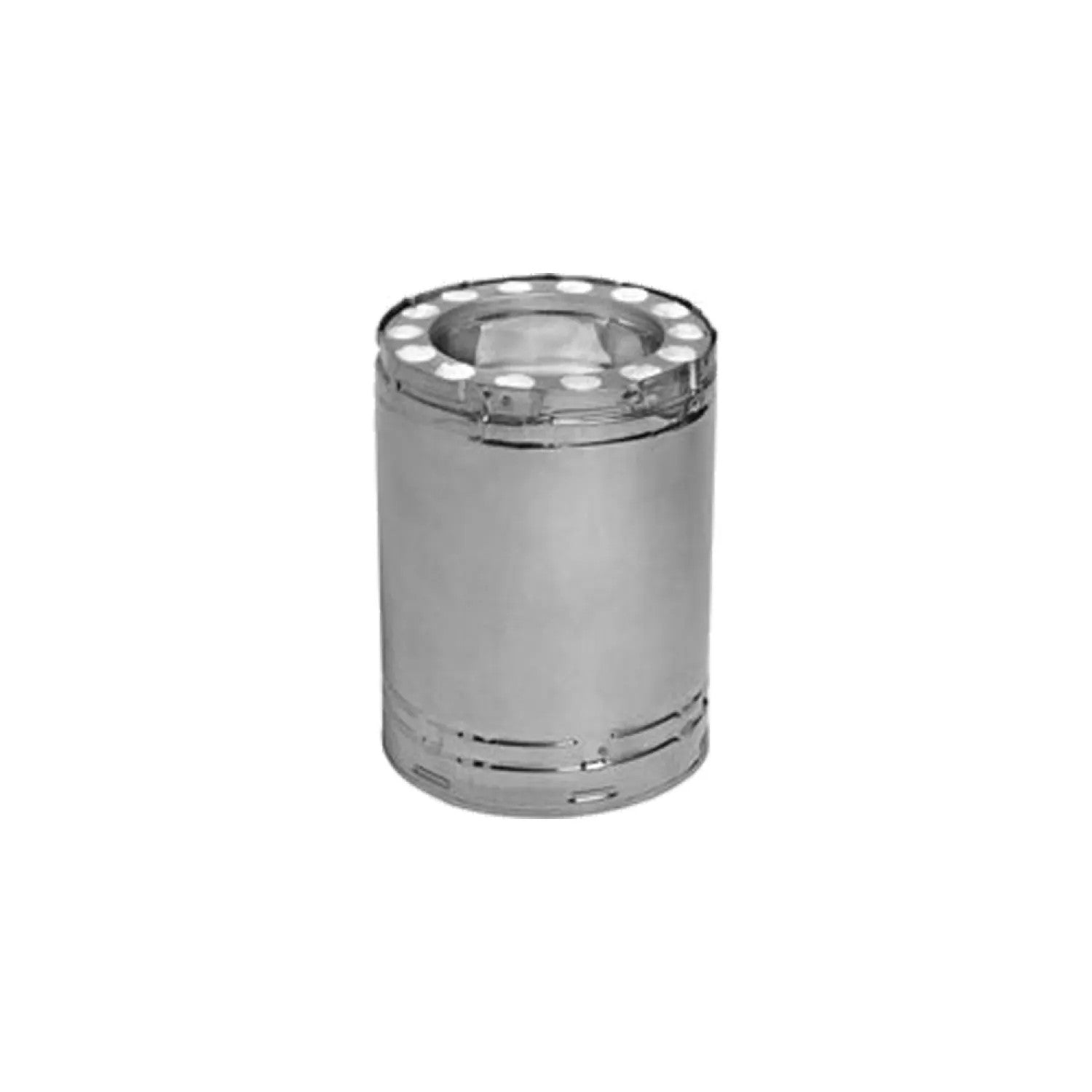

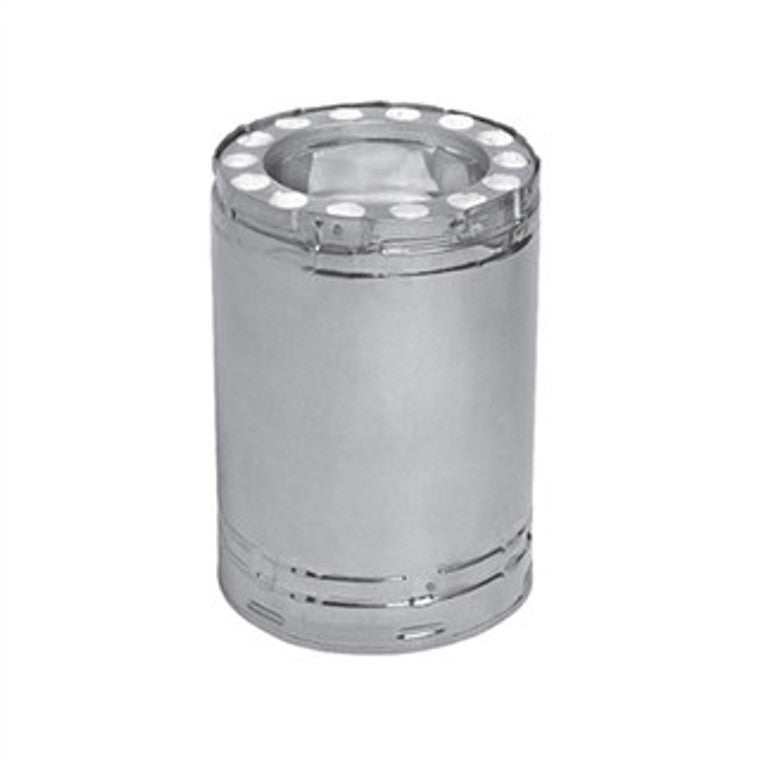

Metal-Fab 7TGS24 Temp Guard Chimney Pipe 7 in x 24 in

Product Description

The Metal-Fab Temp Guard 7TGS24 is a chimney pipe suitable for residential heating appliances utilizing wood, oil, coal, or gas. This durable double-wall insulated pipe is made of stainless steel and includes ceramic fiber insulation for optimal performance. The product adheres to UL 103HT safety standards, ensuring it meets strict industry requirements. Designed for simple installation, the pipe features a twist-lock connection that provides ease of assembly. It can handle continuous temperatures up to 1000 degrees Fahrenheit and intermittent temperatures up to 2100 degrees Fahrenheit.

• Features ceramic fiber insulation for even temperature distribution.
• Employs a positive twist lock mechanism for quick assembly.
• Compatible with wood, oil, coal, or gas-fired heating systems.

Product Highlights

This chimney pipe is intended for factory-built double-wall chimney applications and provides reliable safety and efficiency in venting flue gases.

Product Information

Standard Information

• Manufacturer: Metal-Fab
• Series: TGS Series

Technical Specifications

• Diameter: 7 inches
• Inner Diameter: 7 inches
• Outer Diameter: 10 inches
• Length: 24 inches
• Material: Stainless Steel
• Flue Material: 0.015, 430 Stainless Steel
• Casing Material: 0.015, 430 Stainless Steel
• Listings/Standards: NFPA 211, UL 103HT, UL Listed
