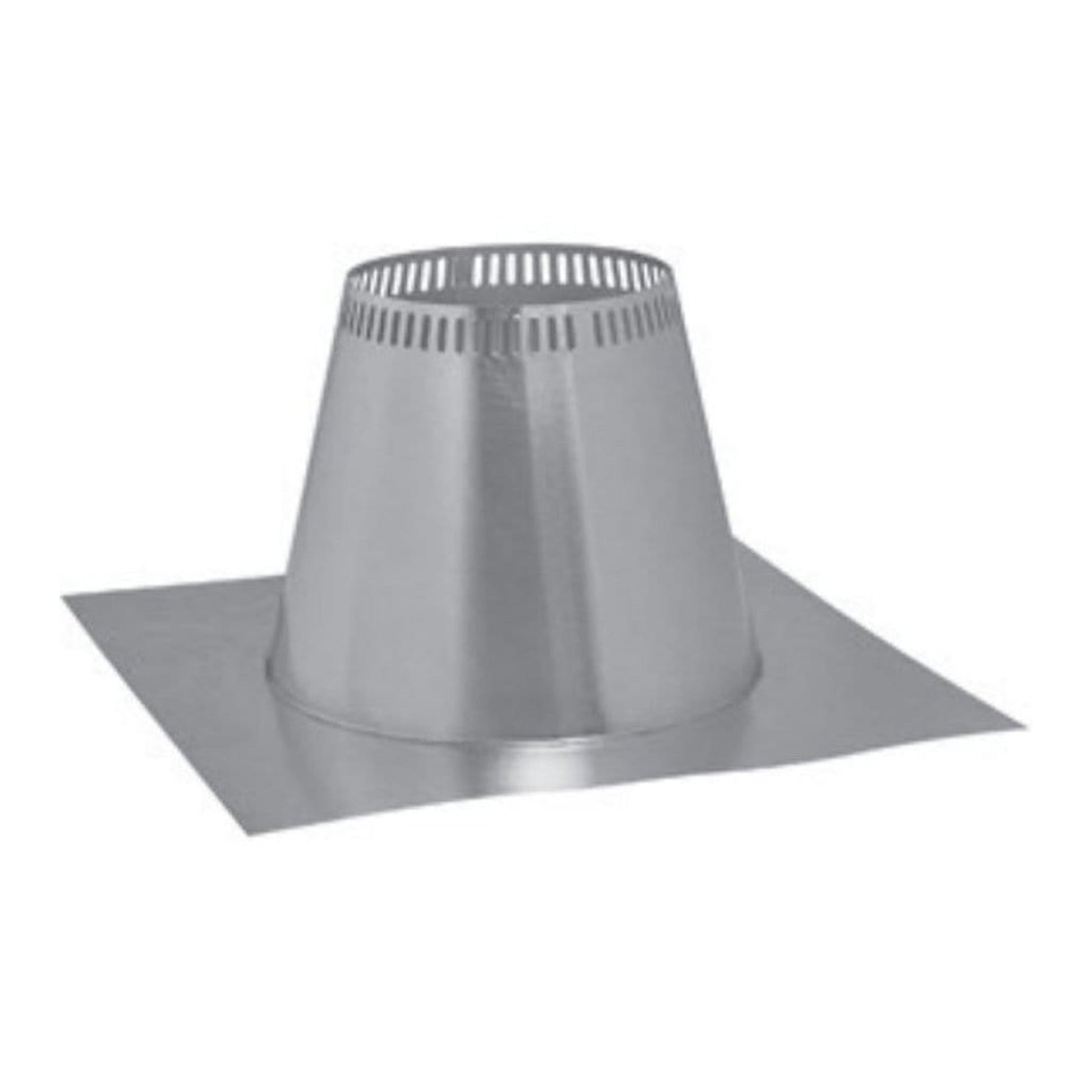

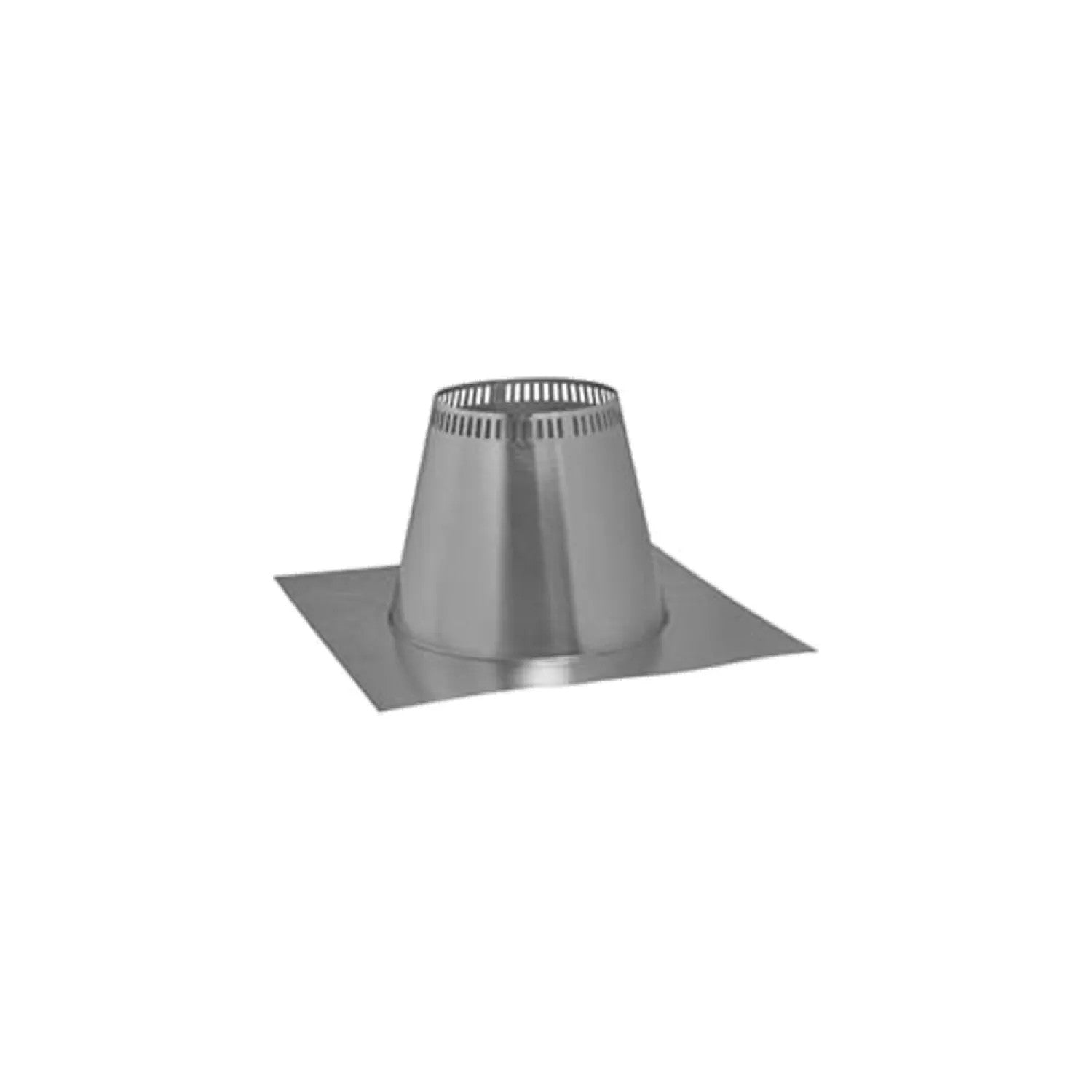

Metal-Fab 7TGAFT Temp Guard Flat Tall Cone 0/12 - 2/12

Product Description

The Metal-Fab Temp Guard Flat Tall Cone, model 7TGAFT, is suitable for use with residential heating appliances that burn wood, oil, coal, or gas. This cone is tested to UL 103HT standards and can operate with a maximum temperature of one thousand degrees Fahrenheit continuously and up to two thousand one hundred degrees Fahrenheit intermittently. It includes a twist-lock connection for secure alignment and is insulated with ceramic fiber for effective temperature management. The cone is designed for roof pitches ranging from zero to two.

• Features ceramic fiber insulation for even flue gas temperature distribution.
• Employs a positive twist lock for simplified assembly.
• Compatible with appliances that burn wood, oil, coal, or gas.

Product Highlights

Product Information

Standard Information

• Manufacturer: Metal-Fab
• Model: 7TGAFT

Technical Specifications

• Product: Flashing
• Height: 11.75 inches
• Depth: 24 inches
• Material: Aluminum
• Listings/Standards: NFPA 211, UL 103HT
• Pitch: 0/12 - 2/12
• Application: Factory-built double wall chimney for listed appliances.
