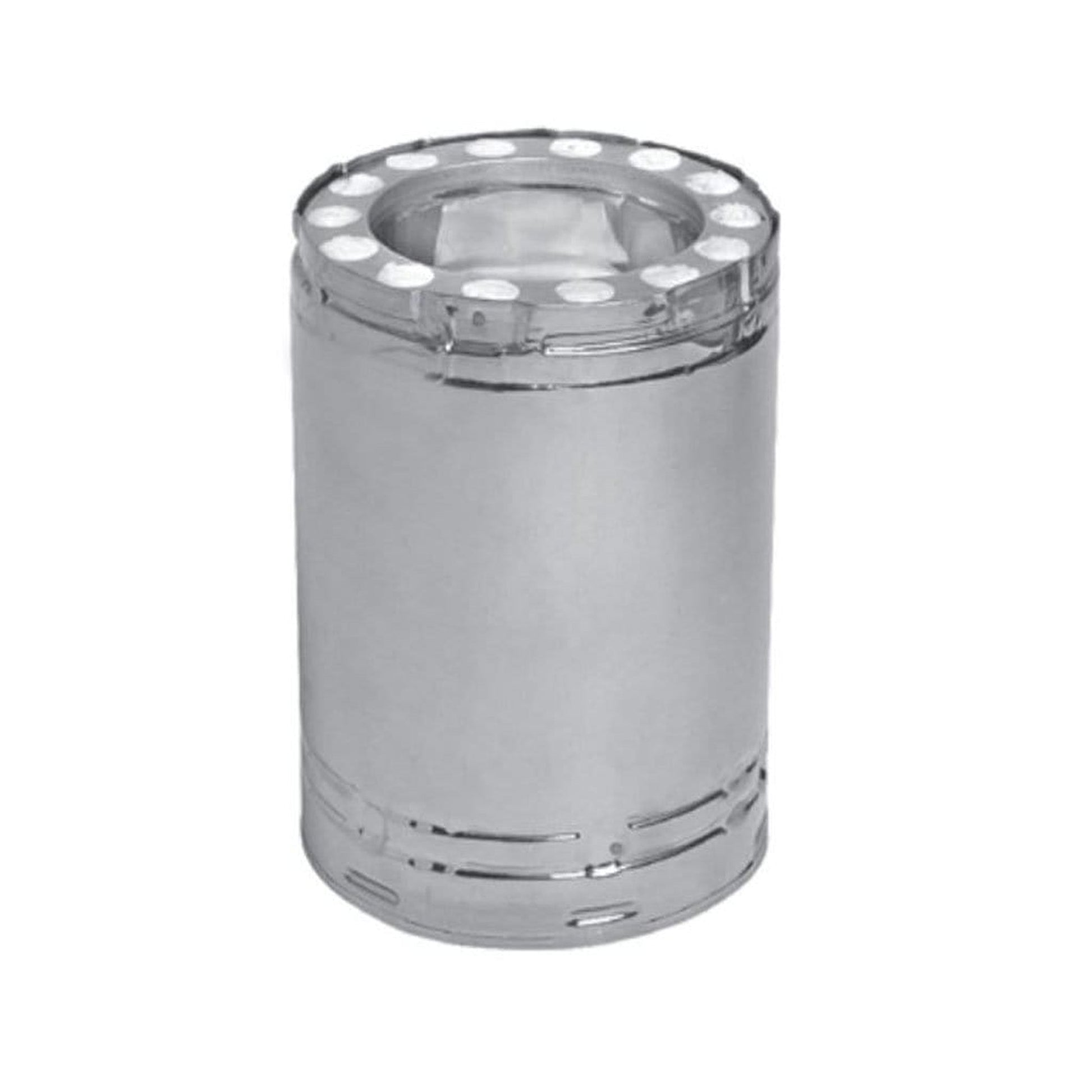

Metal-Fab 6TGS24 Temp Guard Chimney Pipe 6 x 24 Stainless Steel

Product Description

The Metal-Fab Temp Guard chimney pipe, model 6TGS24, is ideal for residential and commercial heating appliances using wood, oil, coal, or gas. This double-wall design features a twist-lock connection for easy assembly and incorporates ceramic fiber insulation for optimal flue gas temperature distribution. The product meets UL 103HT standards, capable of handling continuous operating temperatures up to 1000 degrees Fahrenheit and intermittent temperatures of 2100 degrees Fahrenheit.

• Double-wall design with ceramic fiber insulation.
• Twist-lock connection for simple setup.
• Suitable for various fuel sources including wood and gas.

Product Highlights

This chimney pipe is engineered for safety and efficiency, ensuring proper ventilation for heating systems.

Product Information

Standard Information

• Manufacturer: Metal-Fab
• MPN: 6TGS24

Technical Specifications

• Application: Factory-built double wall chimney
• Flue Material: 0.015, 430 Stainless Steel
• Casing Material: 0.015, 430 Stainless Steel
• Listings/Standards: NFPA 211, UL 103HT
• Inner Diameter: 6 inches
• Outer Diameter: 9 inches
• Height/Length: 24 inches
• Clearances: 1-1/2 inches minimum clearance to combustibles
• Material: Stainless Steel
