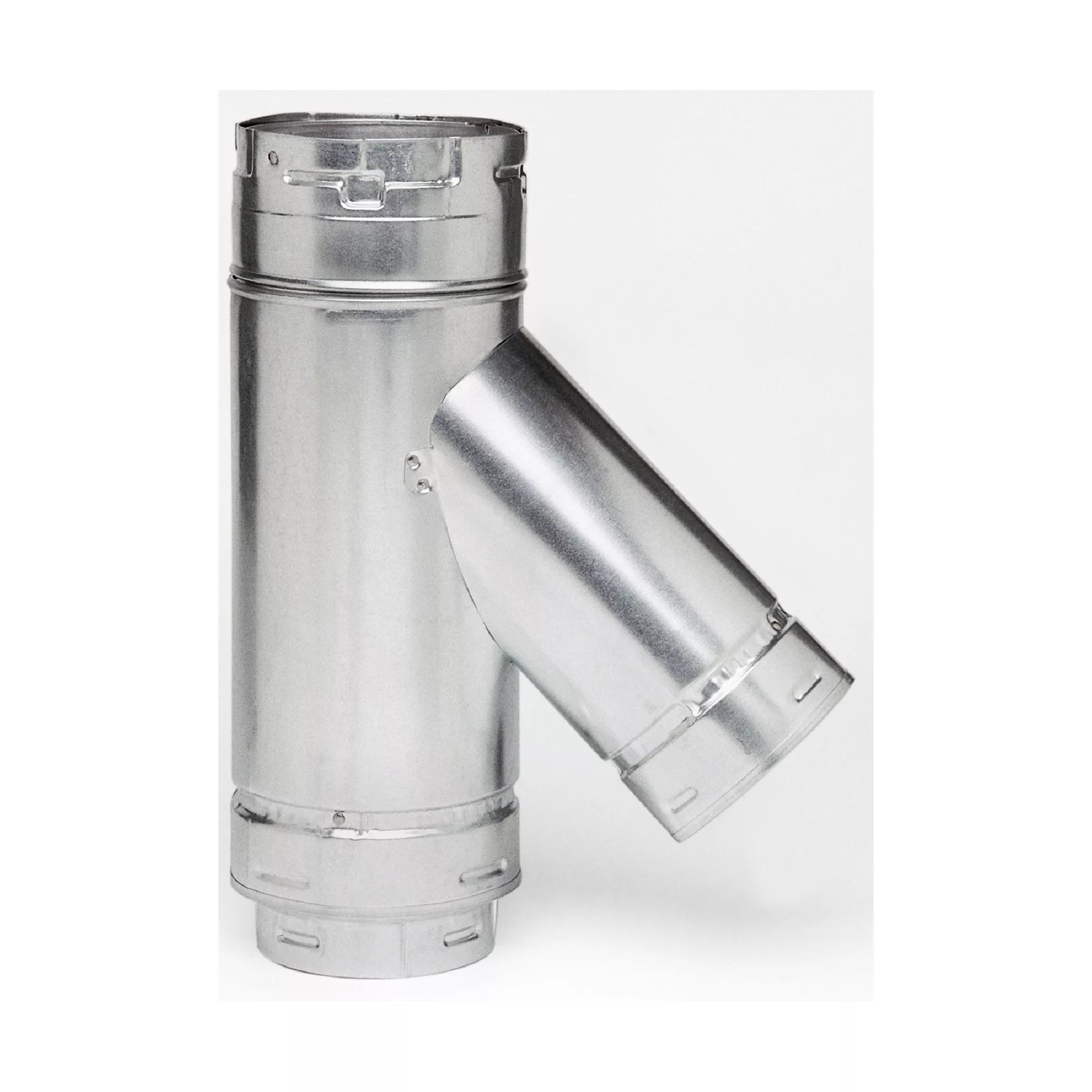

Metal-Fab 6M4SY4 6x4x4 Swivel Wye

Product Description

The METAL-FAB 6M4SY4 6X4X4 Swivel Wye is listed by Underwriters Laboratories for use with approved category 1 gas furnaces, heaters, and boilers. Its double wall design enables use in homes and commercial buildings at close clearance to combustible. Metal-Fab's B-vent design incorporates features that make installation quick, easy, and safe.

• Elimination Of Sharp Edges By Hemming The Flue and Casing.
• Assembly & Disassembly, Without Tools, Using Positive Twist Lock.
• 360 Rotation Of Small Diameter Fittings Using Swivel Tees, Wyes, and Elbows.

Product Highlights

Features include hemming on the flue and casing to eliminate sharp edges, tool-free assembly with positive twist lock, and 360 degree rotation of small diameter fittings.

Product Information

Standard Information

• Brand: METAL-FAB
• Manufacturer Part Number: 6M4SY4
• Country of Origin: USA

Technical Specifications

• Brand: Metal-Fab
• Composition: Outer wall is constructed of Galvanized Steel .018" thick G90 Steel for sizes 3" to 14" diameter, .024" thick G90 for sizes 16" to 30" diameter, The inner wall is constructed of Aluminum alloy .012" thick for sizes 3" to 8" diameter, .018" thick f
• Gauge: Outer Wall - 26 GA, Inner Wall - 30 GA
• Height: 16.5
• Inside Diameter: 6"
• Length: 22
• Prop 65: Yes
• UL Listed: Yes
• UPC: 622417652391
• Width: 20
• Country of Origin: USA
• Diameter (In): 6
• Type: Wye Swivel
