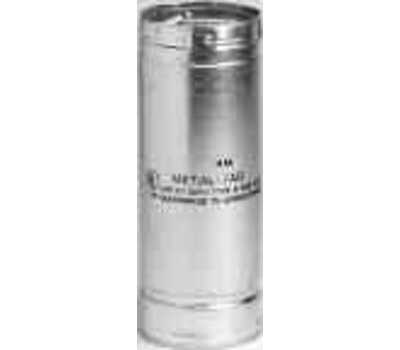

Metal-Fab 6M12A 6 x 12 Twist-Lock Gas Vent Pipe

Product Description

The Metal-Fab 6M12A is a gas vent pipe designed for category I natural gas appliances. This adjustable, double wall, round Type B vent pipe measures six inches in diameter and twelve inches in length. The construction includes a twist-lock connection for ease of installation. This vent pipe is made with a 0.012 inch aluminum alloy inner wall and a 0.018 inch G90 galvanized steel outer casing.

• Type B double-wall construction for enhanced safety
• Adjustable length from 3 to 8 inches
• UL 441 certified for approved appliance use

Product Highlights

This vent pipe is suitable for gas boilers, fireplaces, furnaces, and unit heaters. The adjustable design provides flexibility, allowing adjustments as needed during installation. Suitable for use with multiple appliance types, it meets safety standards including NFPA 54 and NFPA 211.

Product Information

Standard Information

• Brand: Metal-Fab
• Material: Aluminum alloy and galvanized steel

Technical Specifications

• Size: 6 inches
• Length: 12 inches
• End Type: Twist-Lock
• Material Thickness: 0.012 inches (inner wall), 0.018 inches (outer wall)
• Temperature Rating: 530 Deg F
• Applicable Standards: UL 441, NFPA 54/211
• Clearance Required: 1 inch
