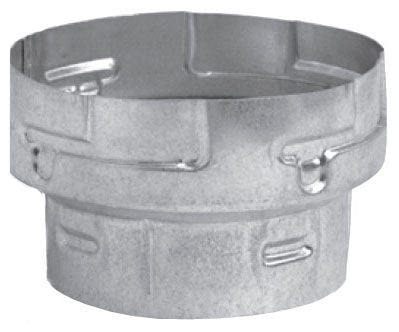

Metal-Fab 5MIN6 5 x 6, 0.012 Aluminum Alloy Flue, 0.018 G90 Galvanized Steel Casing, Double Wall, Round, No-Height, Type B Gas Vent Increaser

Product Description

The Metal-Fab 5MIN6 is a Type B gas vent increaser featuring a five-inch to six-inch diameter transition. It is constructed with a 0.012-inch aluminum alloy inner wall and a 0.018-inch G90 galvanized steel outer casing. This product is suitable for gas appliances requiring a double wall, round, no-height configuration. The increaser is designed to efficiently connect different sizes of venting systems in applications such as gas boilers, fireplaces, furnaces, unit heaters, and radiant tube heaters.

• Double Wall construction.
• Meets UL 441 and NFPA 54/211 standards.
• Constructed for easy installation without the use of sheet metal screws.

Product Highlights

Designed for connecting Type B gas vent systems, the 5MIN6 increases efficiency and safety in your heating system.

Product Information

Standard Information

• Brand: Metal-Fab
• MPN: 5MIN6

Technical Specifications

• Type: Double Wall, Round, No-Height
• Larger End Size: 6 Inch Diameter
• Smaller End Size: 5 Inch Diameter
• Length: 2.68 inches
• Material Thickness: 0.012 Inch (Inner Wall), 0.018 Inch (Outer Wall)
• Material: Aluminum Alloy (Flue), G90 Galvanized Steel (Casing)
• Applicable Standard: UL 441, NFPA 54/211
• Suitable For Use With: Type B Gas Vent
