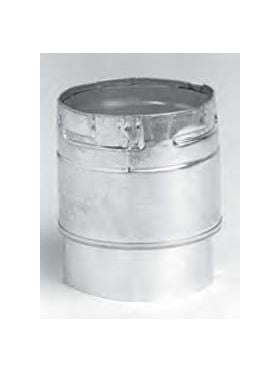

Metal-Fab 5MDC B-Vent Draft Hood Connector 5 in

Product Description

The METAL-FAB 5MDC B-Vent Draft Hood Connector is designed for gas vent applications. This connector features a double wall construction with a round design. It supports a vent diameter of five inches. The inner wall is made from aluminum alloy while the outer wall is constructed from G90 galvanized steel. This product is UL listed, ensuring its safety and effectiveness with approved category one gas appliances like furnaces, heaters, and boilers.

• Hemming eliminates sharp edges on the flue and casing.
• Tool-free assembly and disassembly with a positive twist lock mechanism.
• Fittings can rotate 360 degrees using swivel tees, wyes, and elbows.

Product Highlights

Product Information

Standard Information

• Manufacturer Name: Metal-Fab
• Option: Draft Hood Connector

Technical Specifications

• Vent Size: 5 inches
• Length: 4.88 inches
• Material Thickness: 0.012 inches Inner Wall, 0.018 inches Outer Wall
• Material: Aluminum Alloy Inner Wall, G90 Galvanized Steel Outer Wall
• Series: MDC
• Type: Water Heater Venting Part
• Item Diameter: 5 inches
• Item Weight: 0.6 lbs
• Domestic/Import: Domestic
• Finish: Hot Dipped Galvanized
