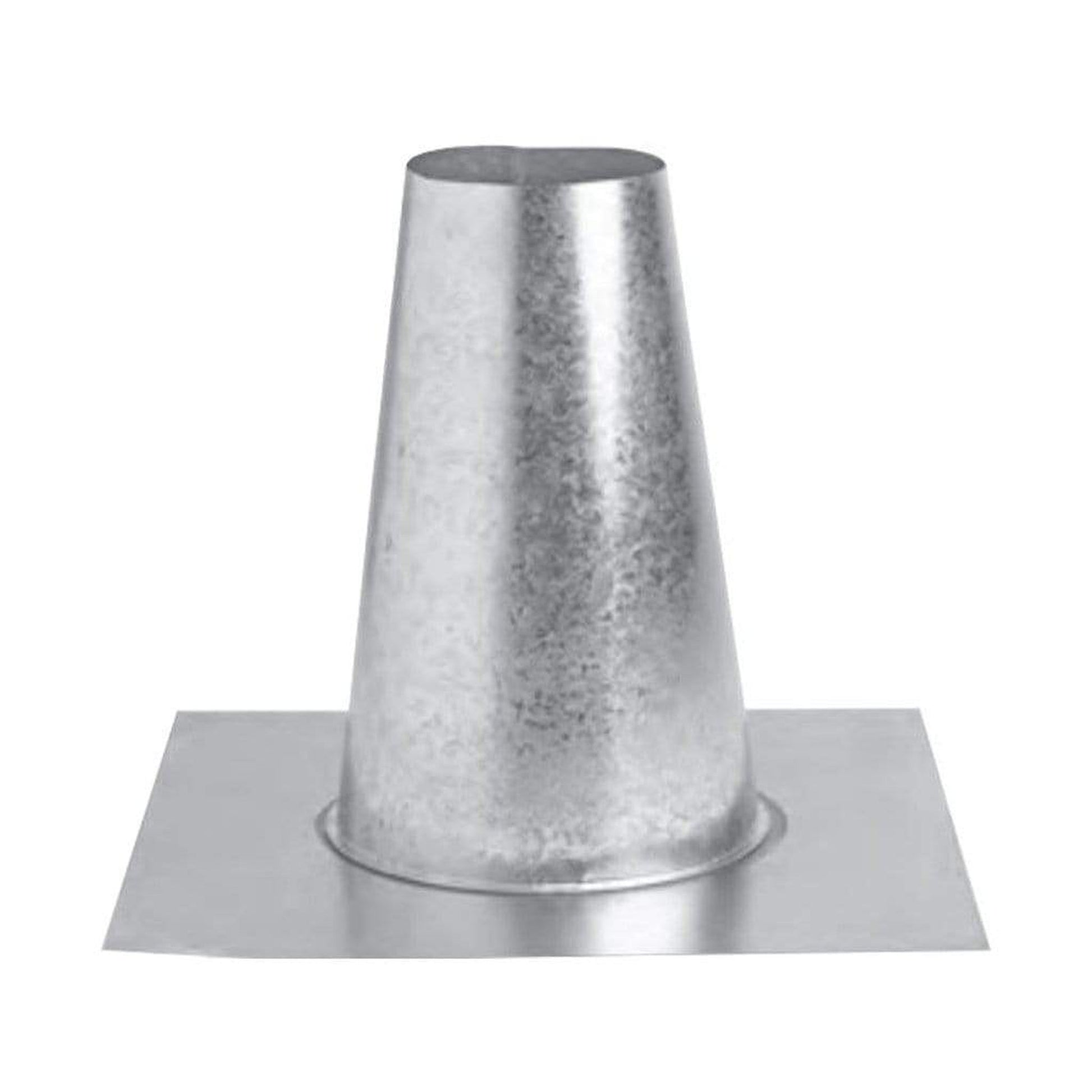

METAL-FAB 4MFT Type B-Vent 4 Inch Flat Tall Cone Flashing

Product Description

The METAL-FAB 4MFT Type B-Vent is designed for use with category I natural gas-burning and propane-fired appliances. It meets requirements set by UL 441, ensuring safety for gas appliances. The innovative design features a twist-lock connection with a locking tab, making installation straightforward without the need for sheet metal screws.

• Innovative twist-lock connection for easy installation
• Durable hemmed flues and casings for long-lasting use
• 1 inch minimum clearance to combustibles across a range of sizes

Product Highlights

Ideal for gas boilers, fireplaces, furnaces, unit heaters, and radiant tube heaters, this product offers a safe and reliable venting option.

Product Information

Standard Information

• Model: 4MFT
• Application: Gas appliances

Technical Specifications

• Listings/Standards: NFPA 54, NFPA 211, UL 441
• Clearances: 1 inch minimum for 3 inch - 24 inch
• Size: 4 inches
• Pitched: Flat Flashing
• Plate Size: 14.63 inches x 14.63 inches
• Finish: Galvanized
• Height: 11.25 inches
• Length: 14.63 inches
• Material: Aluminum Alloy/Galvanized Steel
• Temperature Rating: 530 degrees F
• Width: 14.63 inches
• Domestic/Import: Domestic
• Suitable For: Type B Gas Vent Systems
• Type: Tall Cone Flat
• Base Width: 14.63 inches
• Base Length: 14.63 inches
• Diameter: 4 inches
• UL Listed: Yes
• Vent Type: B-Vent
