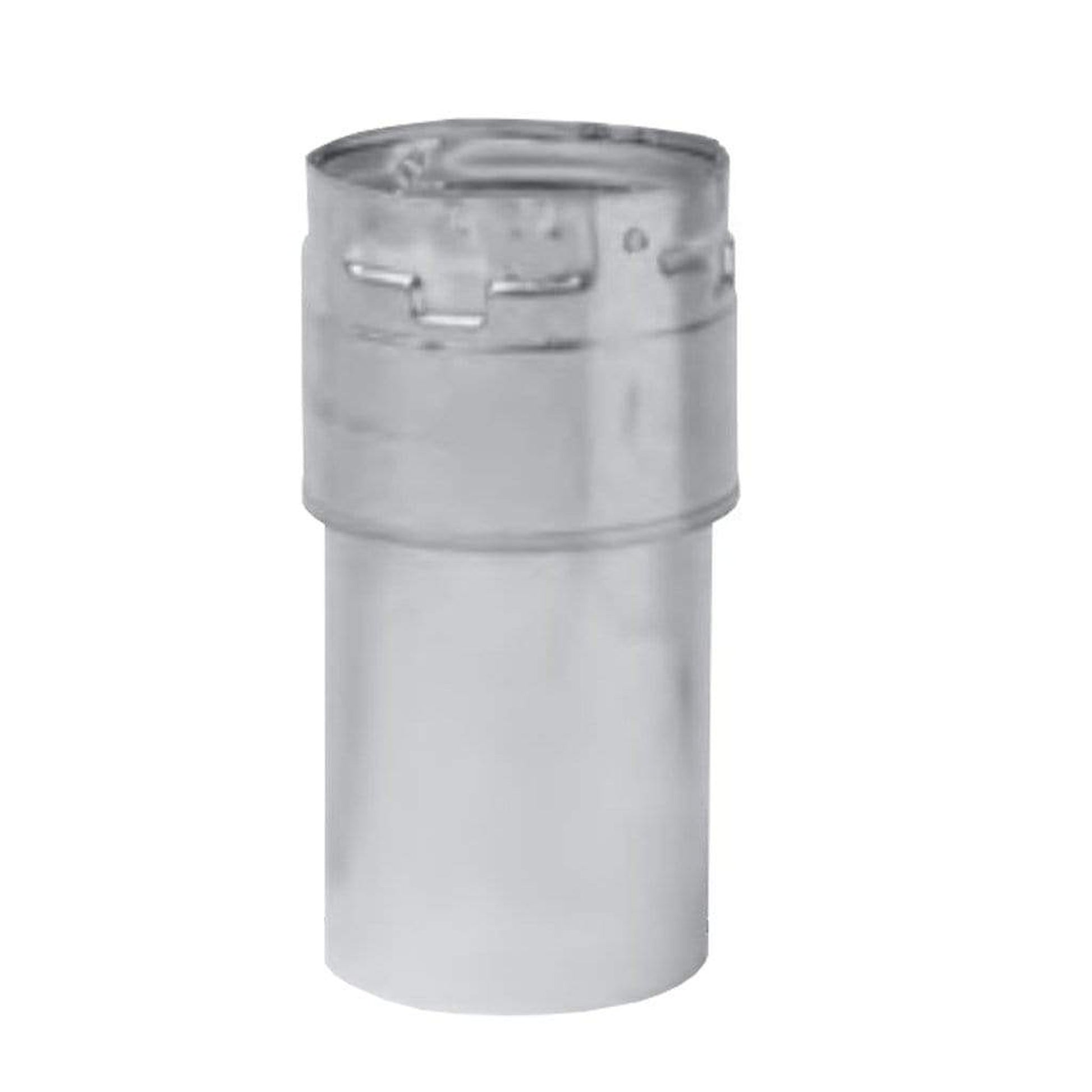

METAL-FAB 4MDC Round Draft Hood Connector 4 inch

Product Description

The METAL-FAB 4MDC round draft hood connector is designed for a four-inch opening. It is compatible with four-inch Metal-Fab Type B round chimney pipe. This connector links to a furnace's internal vent elbow, allowing B-Vent connection outside the cabinet. It features a galvanized steel outer wall and an aluminum alloy inner wall.

• Secure connections are achieved with the SureLock locking system, requiring no tools.
• Hemmed flue and casing eliminate sharp edges for safe handling.
• Double-wall design allows a one-inch clearance to combustibles.

Product Highlights

This draft hood connector is essential for safely ventilating gas-fired appliances. It is designed for simple installation and reliable operation.

Product Information

Standard Information

• Type: Round
• Open Size: 4 inch

Technical Specifications

• Material: Galvanized Steel Outer Wall, Aluminum Alloy Inner Wall
• UL Listed: UL 441
• Height: 4-7/8 inch
• Applications: For use with four-inch Metal-Fab Type B Round Chimney Pipe
• Clearances: One inch minimum clearance to combustibles
• Warranty: 1 Year Limited
• Series: MDC
