Product Description

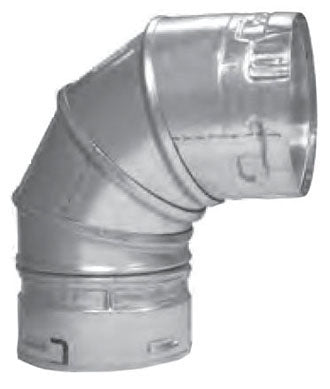

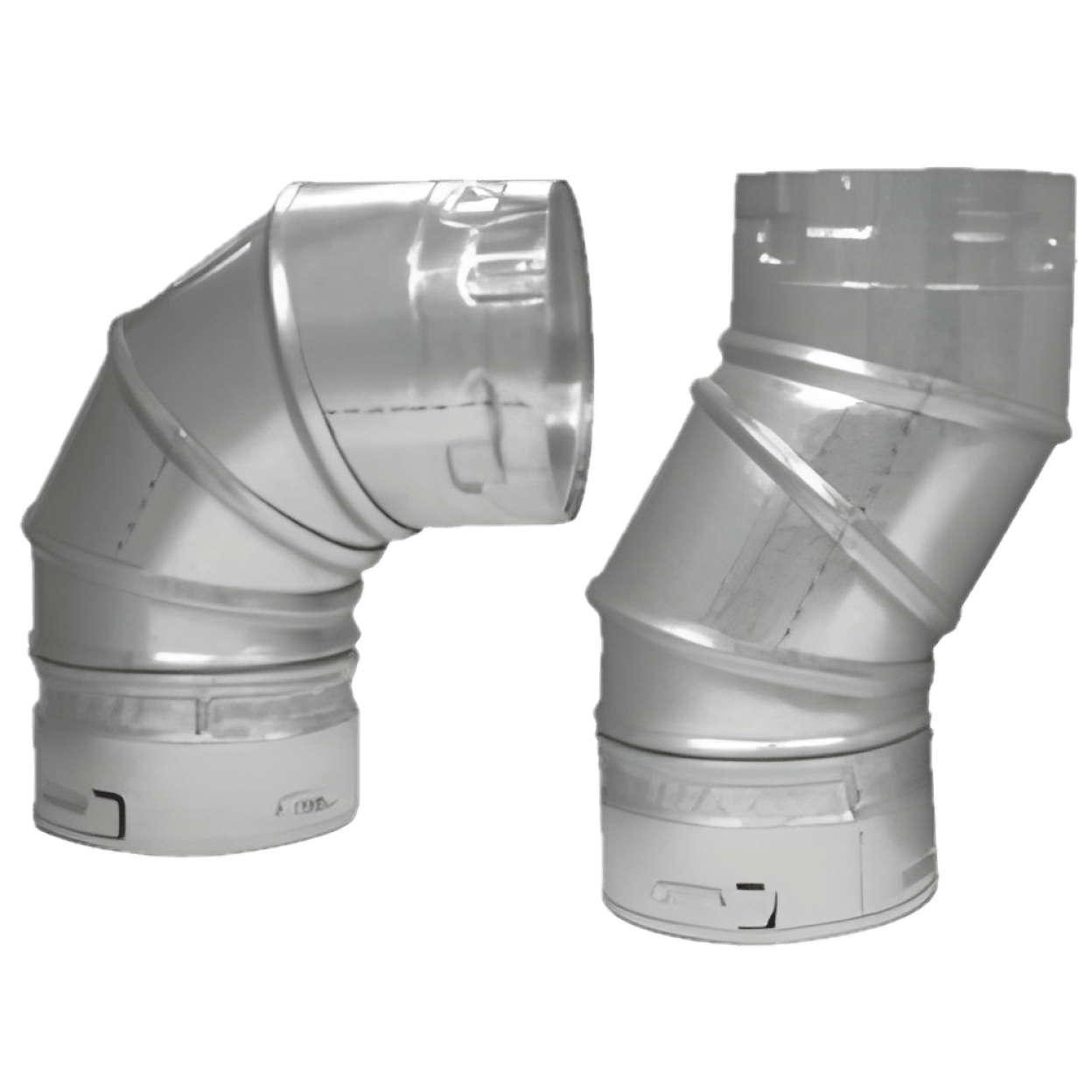

The Metal-Fab 4M90 is a double wall adjustable elbow designed for gas vent applications. This product features a four inch nominal size and allows for a bend angle of 90 degrees. Constructed with a combination of aluminum alloy for the inner wall and G90 galvanized steel for the outer casing, this elbow is built to withstand various operation conditions.
- Adjustable angle from 0 to 90 degrees.
- 360-degree rotating collar for vent pipe orientation.
- Compliant with UL 441 and NFPA standards for gas vent systems.
Product Highlights
This product is ideal for use with type B gas vent systems, facilitating installations in gas boilers, fireplaces, furnaces, and heaters. The five-piece construction ensures a secure fit and enhances airflow efficiency, optimizing your heating applications.
Product Information
Standard Information
-
Brand: Metal-Fab
-
MPN: 4M90
Technical Specifications
-
Material: Aluminum alloy (flue), G90 galvanized steel (casing)
-
Size: 4 inches
-
Angle: 90 degrees
-
Material Thickness: 0.012 inches (inner wall), 0.018 inches (outer wall)
-
Applicable Standards: UL 441, NFPA 54, NFPA 211
-
Weight: 1.1 lbs
-
Dimensions: Length 9.5 inches
-
Connection Type: Hub x Spigot
