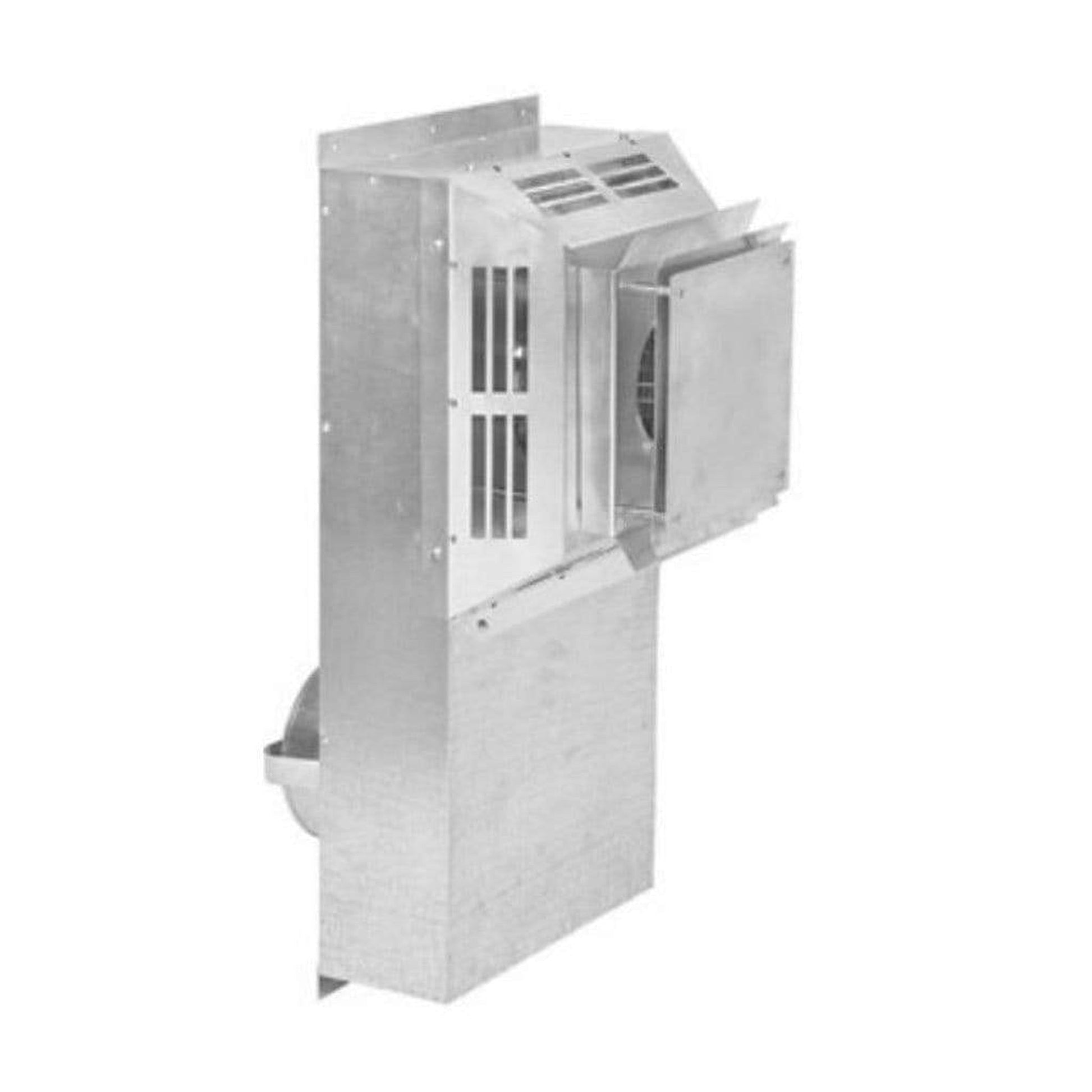

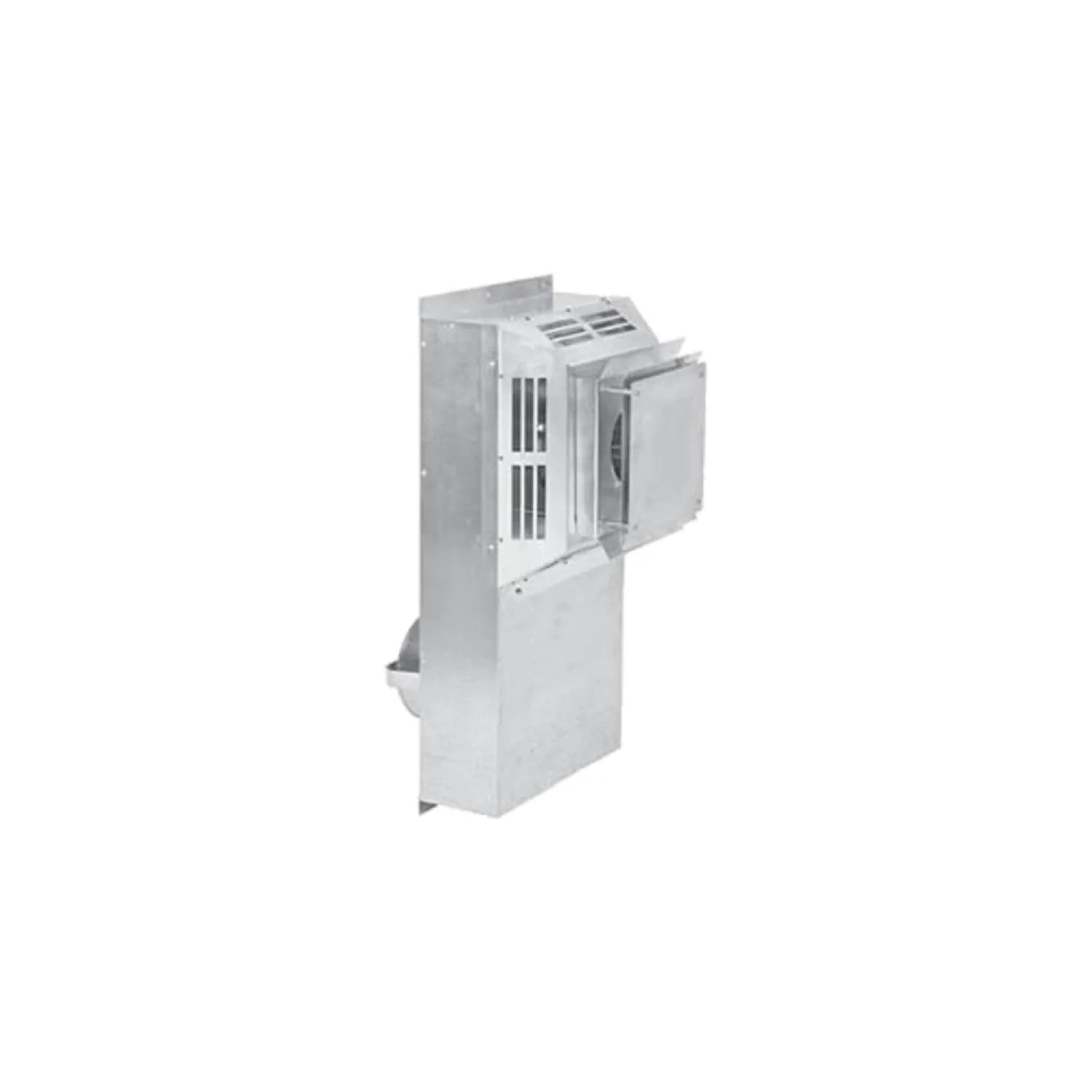

Metal-Fab 4DST36 Direct Vent Snorkel Termination - High Wind (36 inches)

Product Description

The Metal-Fab 4DST36 direct vent chimney is designed for high wind conditions. Its stainless steel inner flue offers durability and high heat resistance. The unitized construction makes installation efficient by removing the need for field assembly. It features twist connections with SureLock for fastener-free attachment on four by six components.

• High-quality stainless steel inner flue.
• Unitized construction for easy setup.
• Quick installation with SureLock connections.

Product Highlights

This product is suitable for direct-vented gas-fired appliances and complies with ANSI Z21 standards.

Product Information

Standard Information

• Manufacturer: Metal-Fab
• Product: Vents and Terminations

Technical Specifications

• Diameter: 4 inches
• Flue Material: 430 Stainless Steel
• Casing Material: Galvanized Steel
• Inner Diameter: 4 inches
• Outer Diameter: 6.5 inches
• Height: 49 inches
• Width: 14.75 inches
• Application: For direct-vented gas-fired appliances
• Listings/Standards: International Building Code, NFPA 54, UL 2112
