METAL-FAB 3MSP Type B Gas Vent Support Plate - 3

Product Description

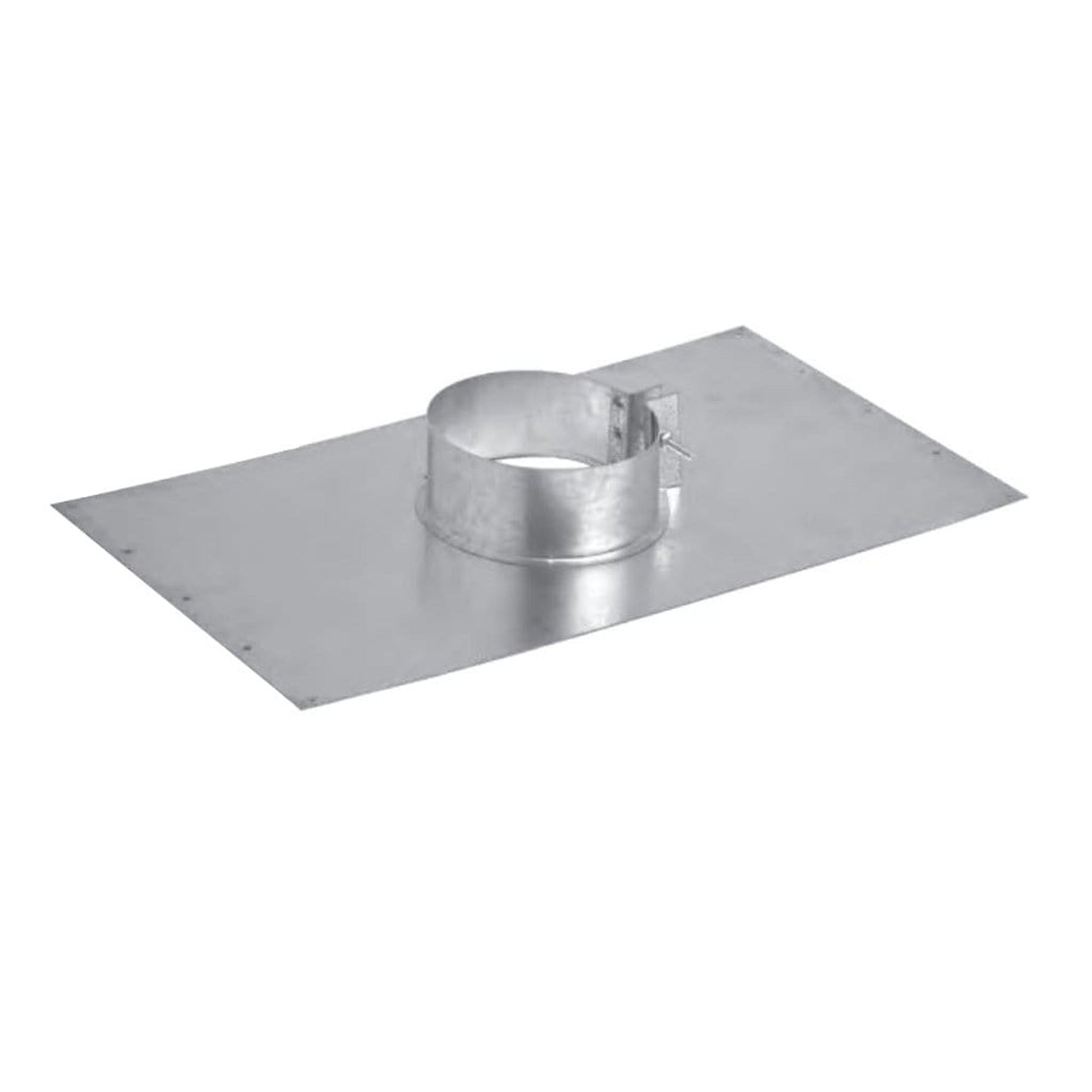

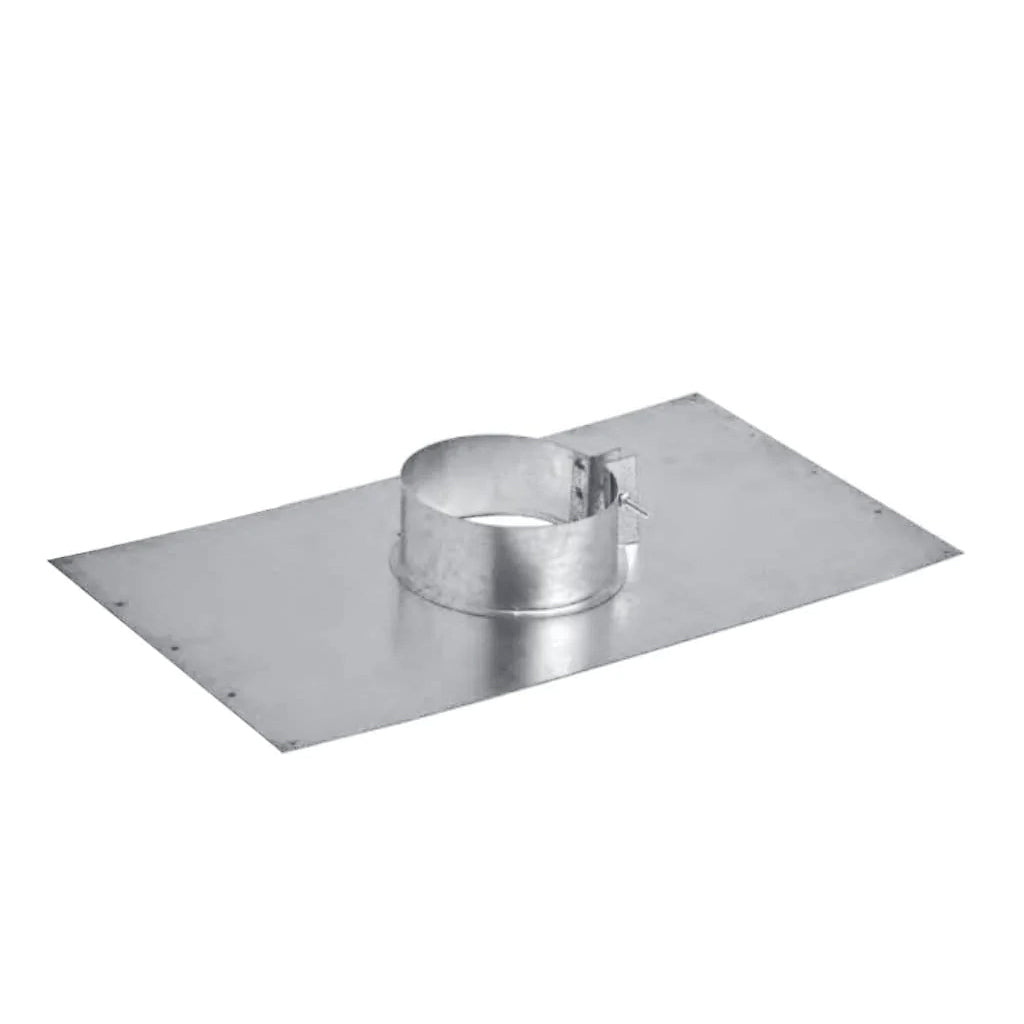

The METAL-FAB 3MSP is a Type B gas vent support plate suitable for approved gas appliances. It is made for use with category I natural gas or propane appliances such as boilers, fireplaces, and furnaces. The galvanized steel construction supports vertical vent pipes and closes openings when pipes pass through combustible floors.

• UL listed to UL 441 standards
• Compatible with 3-inch Metal-Fab Type B chimney systems
• Provides a minimum 1-inch clearance to combustibles for 3 - 24 diameters

Product Highlights

This plate is essential for maintaining safety and efficiency in gas vent installations. It features a twist-lock connection for secure installation.

Product Information

Standard Information

• UPC: 622417100762
• Pipe Type: B-Vent

Technical Specifications

• Material: Galvanized Steel
• Pipe Shape: Round
• Inside Diameter: 3 inches
• Clearance: 1 inch minimum to combustibles
• Max Load: 30 ft
• Locking System: Surelock B-Vent Locking System

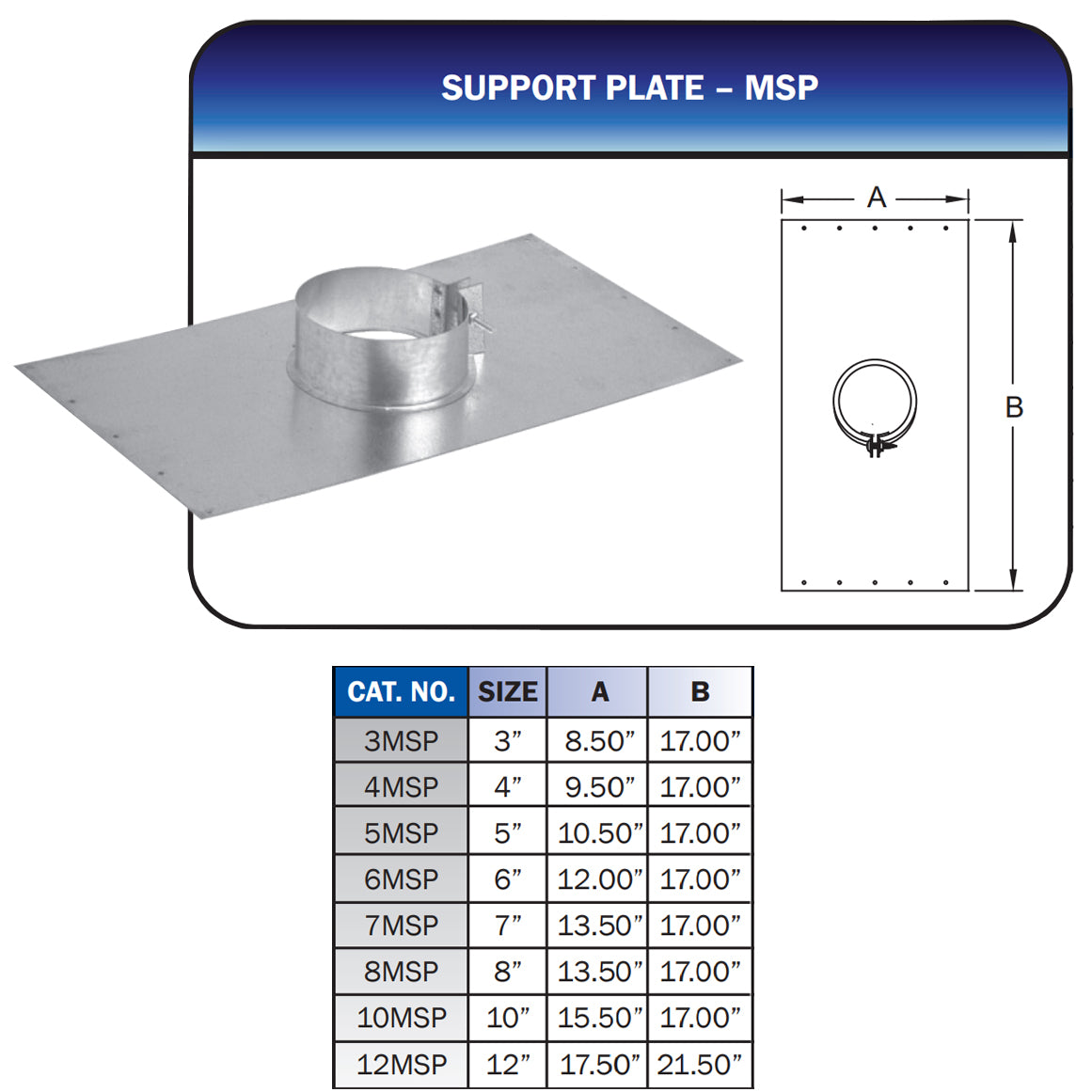

• Size: Width 8.5 inches x Depth 17 inches
