Metal-Fab 16ATGAPD Air-Cooled Temp/Guard Anchor Plate with Damper (16 inches Diameter)

Product Description

The Metal-Fab 16ATGAPD Air-Cooled Temp/Guard anchor plate with damper is a 16-inch diameter component for double-wall factory-built chimney systems. It incorporates a rigid 430 stainless steel flue within a one-piece flue and casing assembly, uses a male-to-female slip connection secured with sheet metal screws, and is listed to UL 103 for continuous operation up to 1000°F and intermittent operation up to 1700°F. It is intended for masonry fireplaces burning wood, oil, coal, gas, or pellets.

• Rigid 430 stainless steel flue in a double-wall factory-built chimney design with one-piece flue and casing (no field assembly).
• Listed to UL 103 (continuous up to 1000°F, intermittent up to 1700°F); also meets NFPA 211; male-to-female slip connection secured with sheet metal screws.

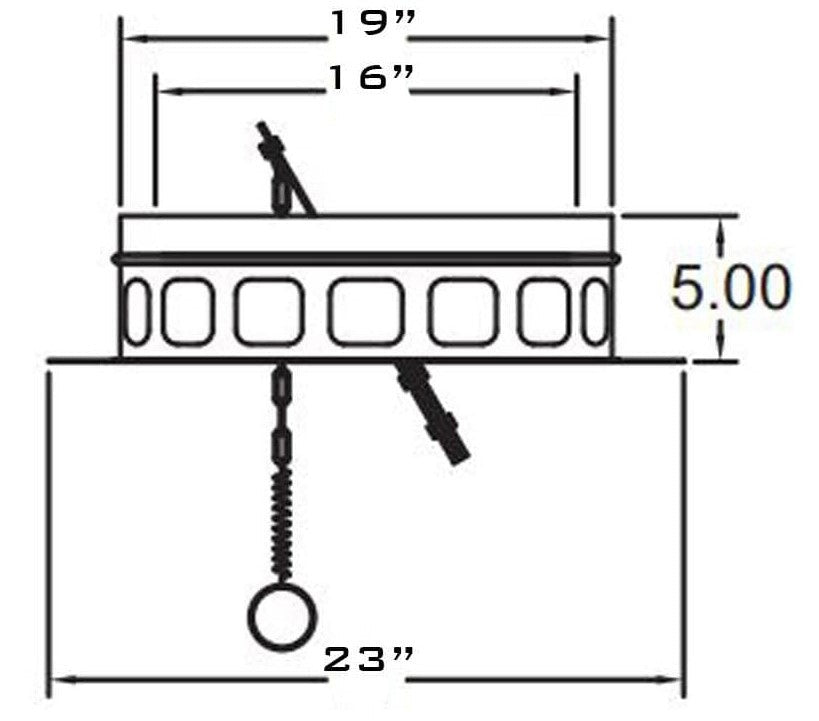

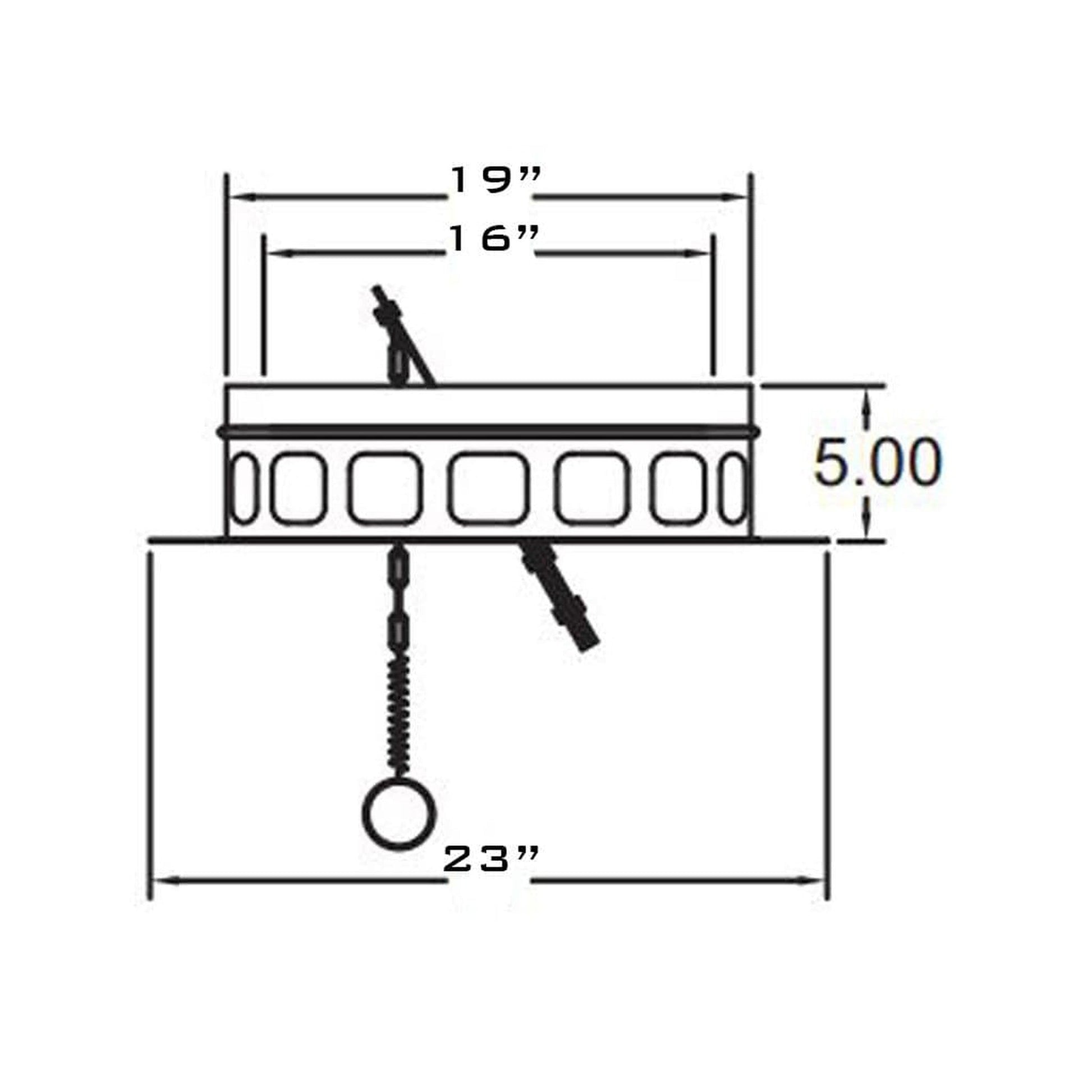

• Dimensions: inner diameter 16", outer diameter 19", height 5"; 2" clearance to combustibles; includes 16" anchor plate with damper.

Product Highlights

16-inch air-cooled anchor plate with damper, one-piece flue and casing, UL 103 rated for masonry fireplace applications.

Product Information

Standard Information

• Brand: METAL-FAB
• Manufacturer Part Number: 16ATGAPD
• Country of Origin: United States
