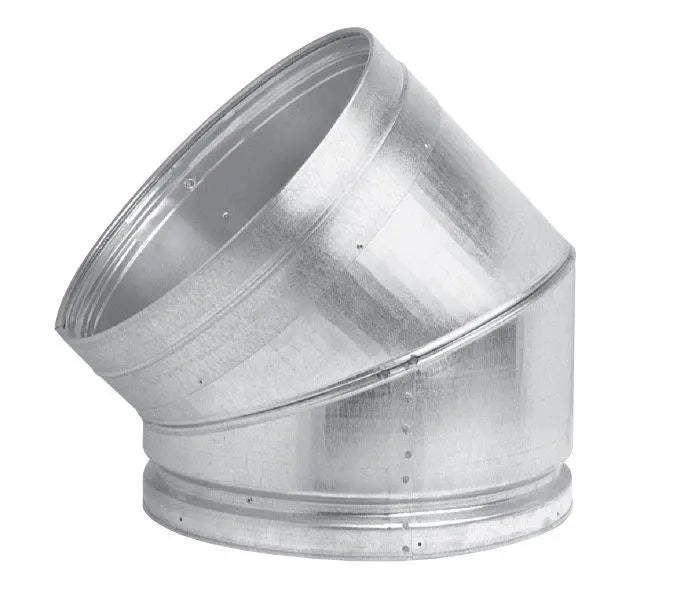

METAL-FAB 14M45 45-Degree Adjustable Elbow

Product Description

The METAL-FAB 14M45 is a 45-degree adjustable elbow used in venting applications. It is made from steel and features a double-walled construction. This component meets Underwriters Laboratories standards for use with approved category 1 gas furnaces, heaters, and boilers. The design includes a positive twist lock mechanism for secure assembly and disassembly. The adjustable feature allows it to fit into tight spaces near combustibles, making it suitable for both residential and commercial settings.

• Constructed from steel, featuring double-walled design
• Includes positive twist lock for straightforward assembly
• Designed for compatibility with category 1 gas appliances

Product Highlights

This elbow offers flexible installation options and adheres to safety standards.

Product Information

Standard Information

• Vent Type: B-Vent
• Angle: 45 degrees

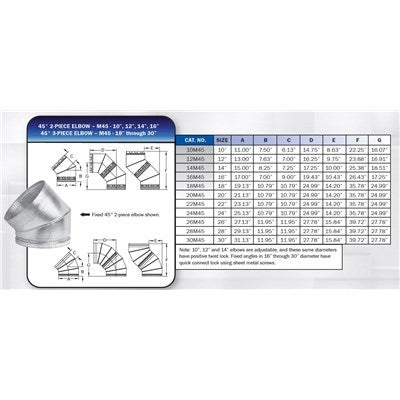

Technical Specifications

• Adjustable: Yes
• Material: Galvanized Steel; Aluminum
• Number of Walls: 2
• Inside Diameter: 14 inches
• Outside Diameter: 15 inches
• First Length: 8.25 inches
• Second Length: 7.25 inches
• Required Clearance: 1 inch
• UL Listing: UL441
