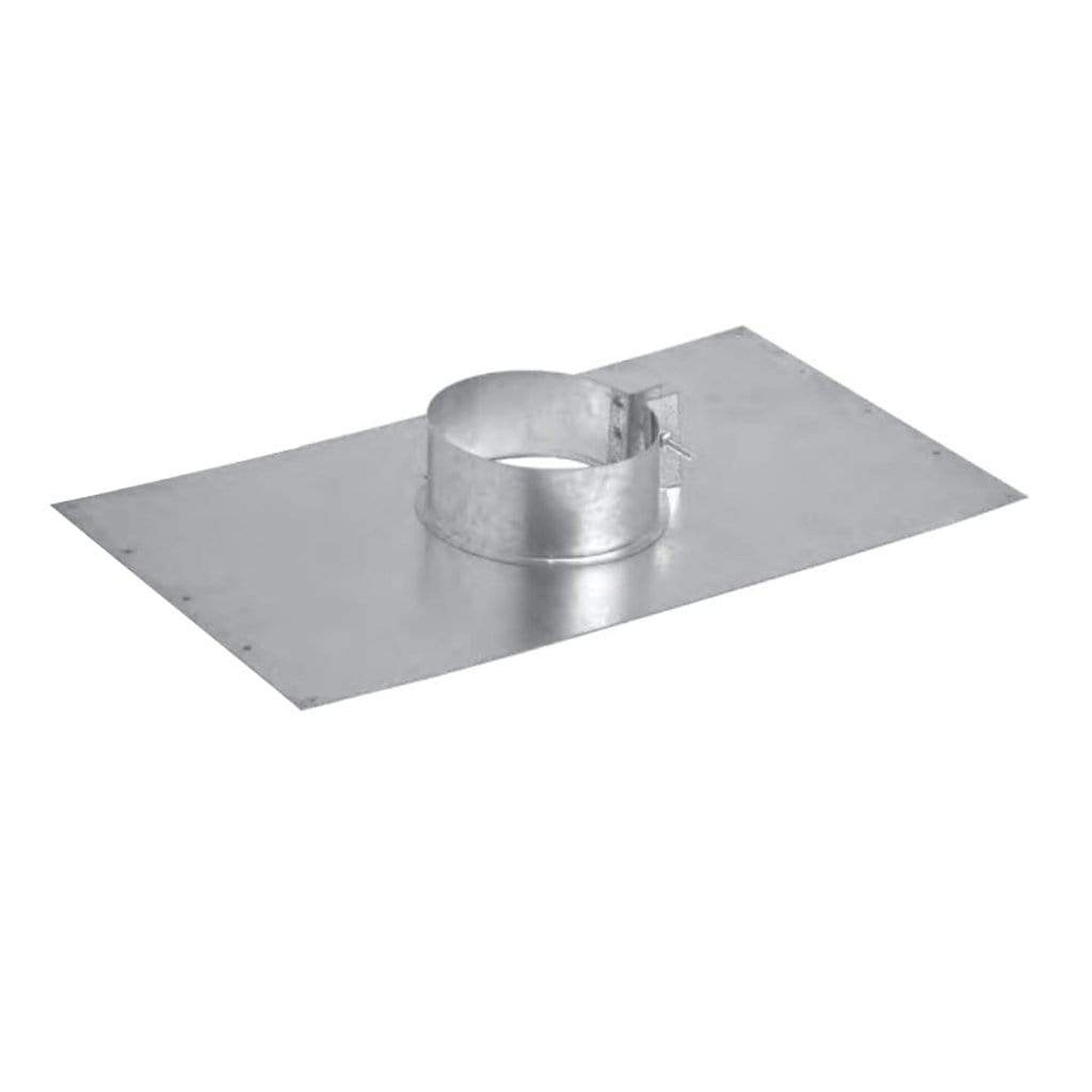

Metal-Fab 10MSP 10-Inch B-Vent Support Plate

Product Description

The Metal-Fab 10MSP is a ten-inch B-Vent support plate suited for Category 1 gas furnaces, heaters, and boilers. It meets Underwriters Laboratories standards. The double-wall build allows minimal clearance from combustibles, making it ideal for both residential and commercial settings.

• Designed for Category 1 gas appliances.
• Features twist-lock connection for easy installation.
• Applicable for homes and commercial buildings.

Product Highlights

This support plate maximizes durability while reducing installation time.

Product Information

Standard Information

• Brand: Metal-Fab
• MPN: 10MSP

Technical Specifications

• Inside Diameter: 10 inches
• Diameter: 10 inches
• Application: For use with Category I natural gas-burning or propane-fired appliances such as gas boilers, fireplaces, furnaces, and unit heaters.
• Listings/Standards: NFPA 54, NFPA 211, UL 441
• Approvals: UL Listed
• Clearances: Minimum clearance to combustibles for three to twenty-four inches

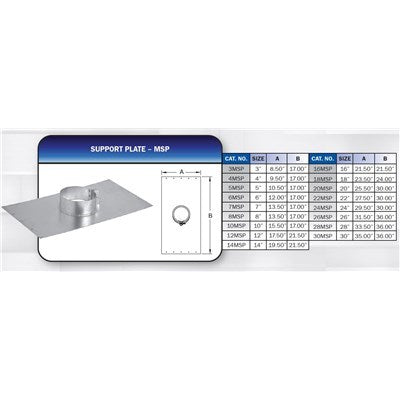

• Size: Width fifteen point five inches x Depth seventeen inches
• Composition: Outer wall of Galvanized Steel .018 thick G90 Steel, inner wall of Aluminum alloy .012 thick
• Gauge: 26 GA
• Height: eight point eight inches
• Length: seventeen point three inches
• Width: seventeen point three inches
