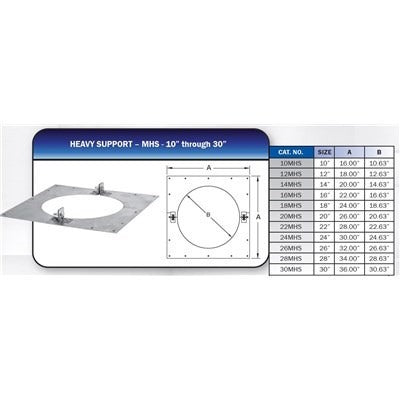

Metal-Fab 10MHS B-Vent Heavy Support (10 inch)

Product Description

Metal-Fab 10MHS is a heavy support for 10 inch B-Vent systems used with Category 1 gas furnaces, heaters, and boilers. It is a double-wall Type-B vent component allowing close-clearance installation to combustibles and features hemmed flue and casing, positive twist-lock assembly/disassembly without tools, and the patented Surelock push-tab locking system. The unit supports 360 degree rotation for small-diameter fittings and offers an oval pipe option for stud wall installations.

• Compatibility: for Category 1 gas furnaces, heaters, and boilers; UL listed to mate with specified round gas vent
• Construction: double-wall Type-B vent with hemmed flue and casing and positive twist-lock assembly; patented Surelock push-tab lock
• Design features: 10 inch diameter, 360 degree rotation for small-diameter fittings, oval pipe option for use inside standard stud walls; weight 4.50 lbs each

Product Highlights

10 inch Metal-Fab Type-B heavy support with Surelock push-tab lock and close-clearance design

Product Information

Standard Information

• Brand: METAL-FAB
• Manufacturer Part Number: 10MHS
• Country of Origin: USA
