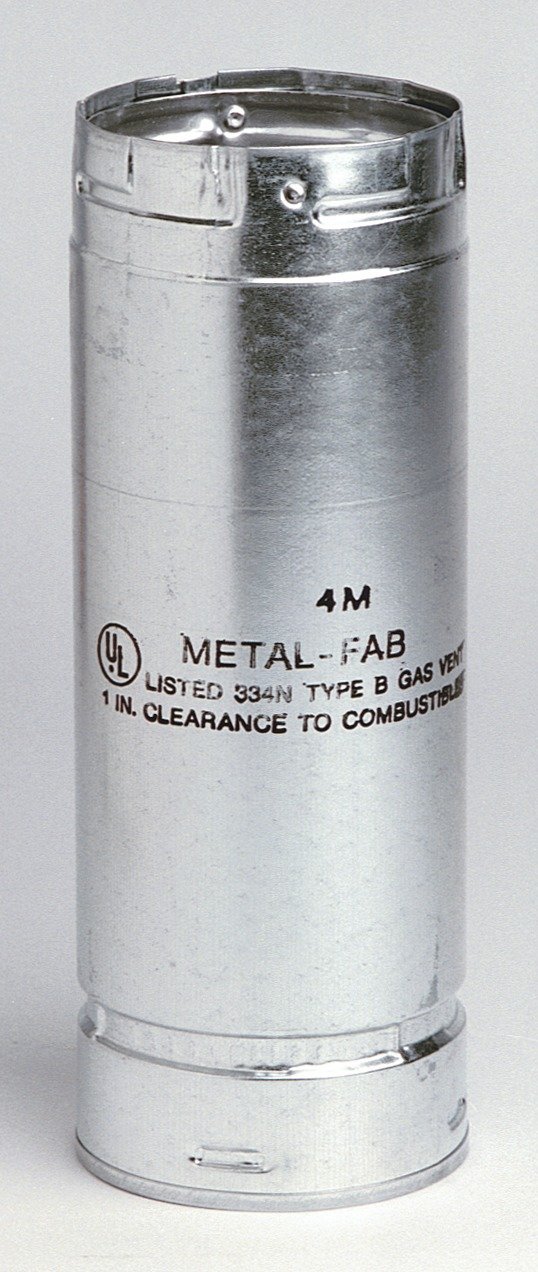

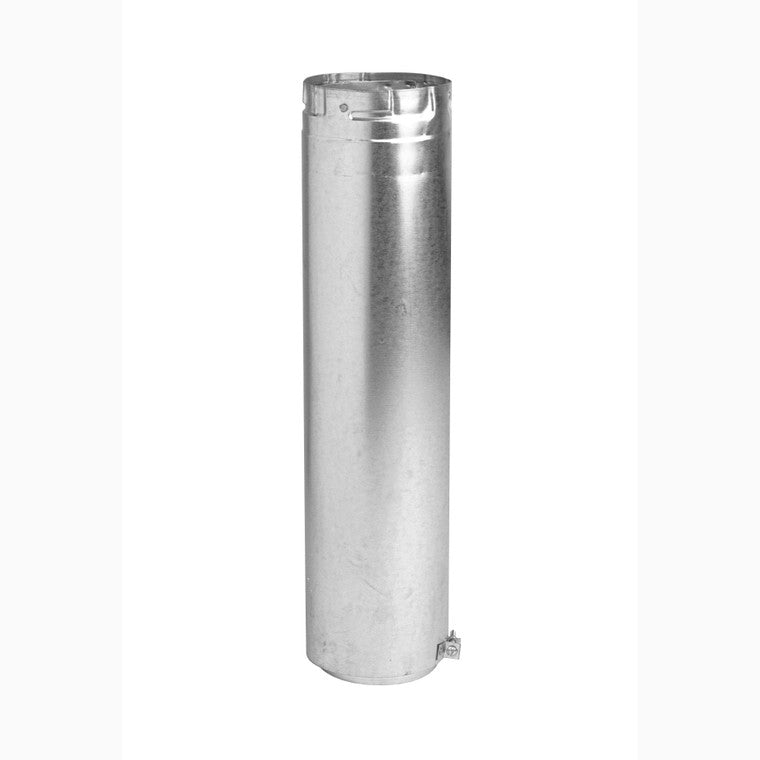

Metal-Fab 10M18A M Series B-Vent 10 in x 18 in Adjustable Length

Product Description

The Metal-Fab M Series B-Vent 10M18A is suitable for approved Category I gas appliances. This adjustable length pipe is UL listed, ensuring safety and reliability. The double-wall construction provides durability, with a twist-lock connection for easy assembly. This product is made from a combination of galvanized steel and aluminum alloy, featuring a half-inch insulating air space to enhance performance.

• Constructed with a double-wall design for efficient airflow.
• Positive twist-lock connection system for secure assembly.
• Requires a one-inch clearance to combustibles.

Product Highlights

This B-Vent is ideal for use with gas furnaces, heaters, and boilers, providing a reliable venting solution.

Product Information

Standard Information

• Brand: Metal-Fab
• MPN: 10M18A

Technical Specifications

• Series: M Series
• Vent Type: B-Vent
• Material: Aluminum Alloy/Steel
• Nominal Size: 10 inches
• Length: 18 inches
• Connection Type: Twist-Lock
• Gauge: 0.018 inches
• Temperature Rating: 530 degrees F
• Outer Diameter: 11 inches
• Inside Diameter: 10 inches
• Adjustable: Yes
• Number of Walls: 2
• UL Listing: UL441
• Finish: Galvanized
• Required Clearance: 1 inch
• Width: 11 inches
• Height: 18.25 inches
• Depth: 11 inches
