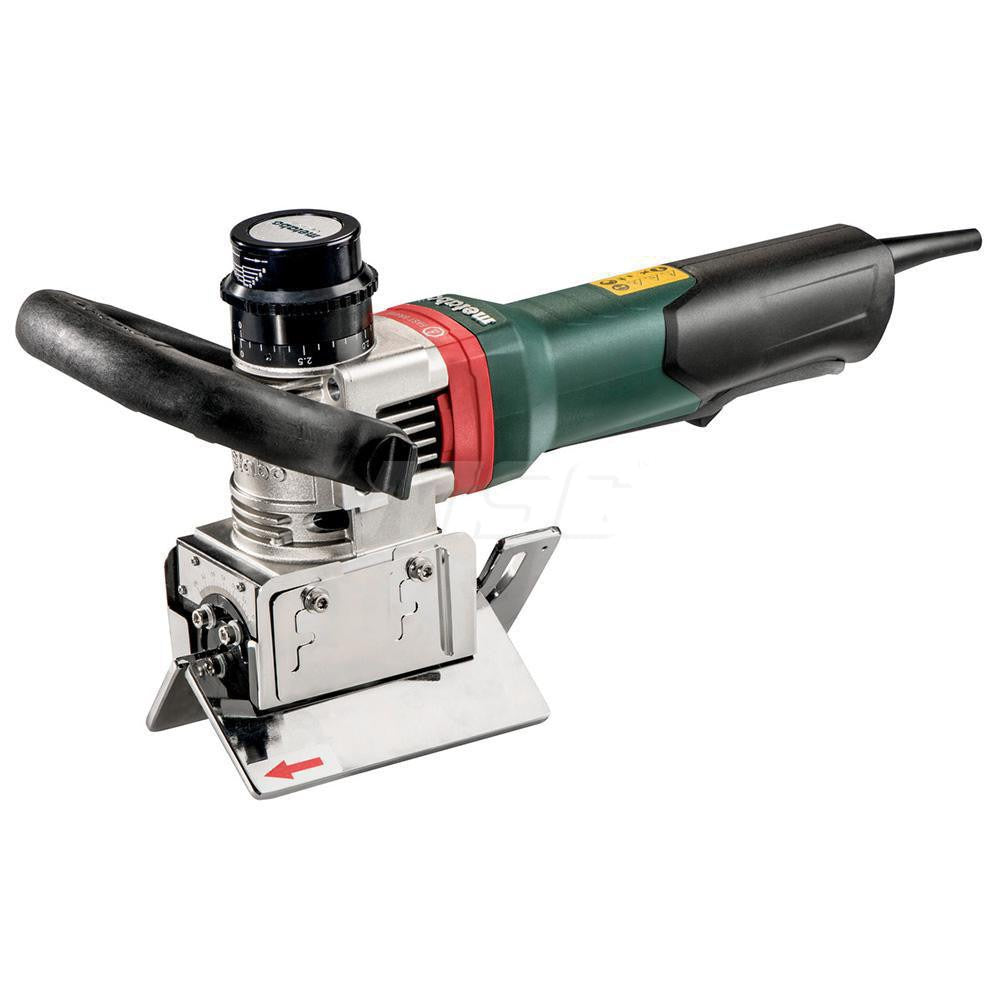

Metabo 601755620 Electric Beveler 840W 3/8 Inch

Product Description

The METABO 601755620 is an electric beveler designed for precision edge preparation on metal workpieces. Running at 12,500 RPM and drawing 13 amps, this tool delivers 840 watts of power to produce clean, consistent bevels from 0 to 90 degrees. The maximum bevel depth is 3/8 inch (9.5 mm), making it well suited for weld-prep and deburring tasks in fabrication and metalworking environments. Its compact, slim-profile housing reduces operator fatigue during extended use, and a one-touch controller simplifies bevel angle adjustment on the job.

This beveler is intended for professional metalworking applications including weld preparation, edge chamfering, and deburring on steel and structural plate. It requires a minimum workpiece thickness of 1/4 inch to operate correctly. The tool is suited for use in structural steel fabrication shops, pipe fitting, and general industrial maintenance where repeatable bevel angles are required. It is typically operated by certified welders, ironworkers, pipefitters, and industrial maintenance technicians.

Key Features

• 0 to 90 degree bevel angle range for flexible edge preparation
• 3/8 inch (9.5 mm) maximum bevel capacity per pass
• 12,500 RPM no-load speed for efficient material removal
• 840-watt motor with 13-amp draw for consistent power output
• One-touch controller for fast, on-the-fly bevel angle changes
• Compact, slim design to improve access in tight work areas

Compatibility

Designed as an OEM-style electric beveler for professional metalworking and weld-prep applications on workpieces with a minimum thickness of 1/4 inch.

Installation Notes

Installation of this tool into a workflow requires no fixed mounting. Disconnect the tool from the power source before changing attachments or adjusting the bevel angle setting. Verify that the workpiece meets the minimum 1/4-inch thickness requirement before operation to prevent damage to the tool or workpiece. Follow applicable OSHA and ANSI safety standards for handheld power tools when operating in industrial environments.
