Mestek xf175a1ns1110 Commercial Unit Heater 175000 Btu/h

Product Description

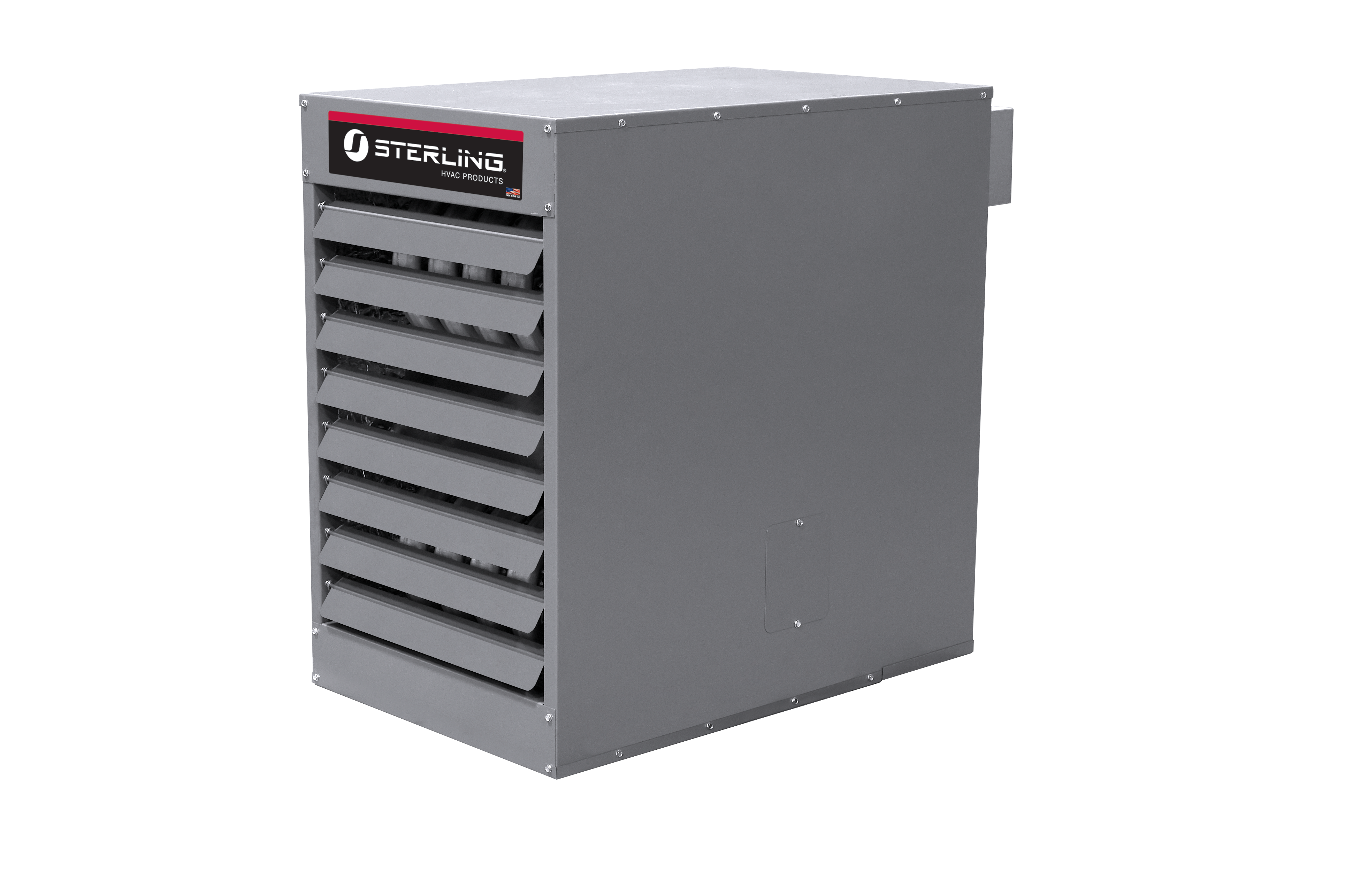

The MESTEK xf175a1ns1110 is a commercial gas-fired unit heater rated at 175,000 BTU/h on natural gas, designed for large-space heating in demanding industrial and commercial environments. It operates at 83% thermal efficiency using single-stage direct spark ignition and features an aluminum heat exchanger for corrosion resistance and consistent heat transfer. The unit runs on 115 volts and is equipped with a 1/3 HP open drip-proof (ODP) motor. Power-vented operation supports both standard vent and separate combustion air configurations, giving installing contractors flexibility in tight or contaminated-air mechanical spaces.

This unit heater is built for commercial and light-industrial applications where dependable overhead heating is required. Typical installations include warehouses, manufacturing facilities, loading docks, garages, and large storage buildings. The power-vented design with optional separate combustion air makes it suitable for spaces where indoor air quality or negative pressure concerns would otherwise limit heater selection. Installation is performed by licensed commercial HVAC or gas-fitting contractors.

Key Features

• 175,000 BTU/h natural gas input for high-output commercial heating
• 83% AFUE thermal efficiency with single-stage operation
• Direct spark ignition eliminates standing pilot for reliable startup
• Aluminum heat exchanger resists corrosion in industrial environments
• 1/3 HP ODP motor provides dependable airflow delivery
• Power-vented with support for standard vent or separate combustion air configurations

Compatibility

Designed as an OEM-style commercial gas unit heater for overhead forced-air heating applications in natural gas systems requiring 115-volt power supply.

Installation Notes

Installation must be performed by a licensed HVAC or gas-fitting contractor in accordance with local codes, NFPA 54, and the manufacturer installation instructions. Shut off gas supply and disconnect electrical power before servicing or mounting the unit. Vent system sizing and combustion air provisions must comply with IFGC requirements for power-vented appliances. Verify that the mounting structure can support the rated unit weight before hanging.

Technical Specifications

• Heating Capacity: 175,000 BTU/h
• Fuel Type: Natural Gas
• AFUE Efficiency: 83%
• Ignition Type: Direct Spark
• Stages: 1
• Voltage: 115 volts
• Motor Output: 1/3 HP
• Motor Type: Open Drip-Proof (ODP)
• Heat Exchanger Material: Aluminum
• Venting: Power Vented, Standard Vent or Separate Combustion Air
• Unit Weight: 194 pounds

Standard Information

• Brand: MESTEK
• Manufacturer Part Number: xf175a1ns1110
