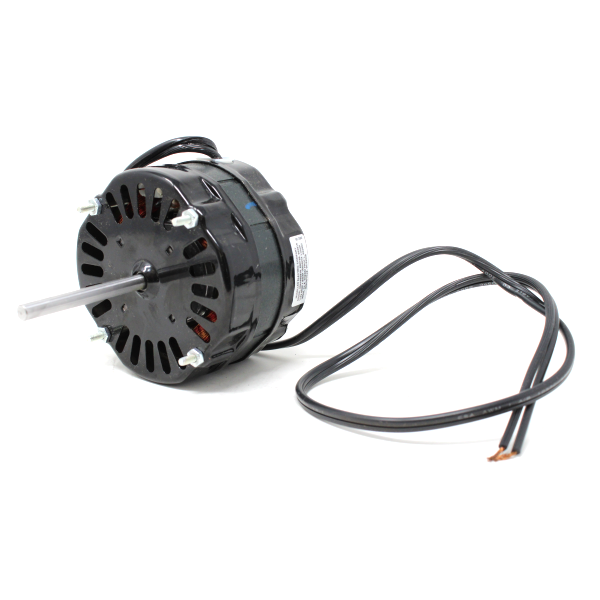

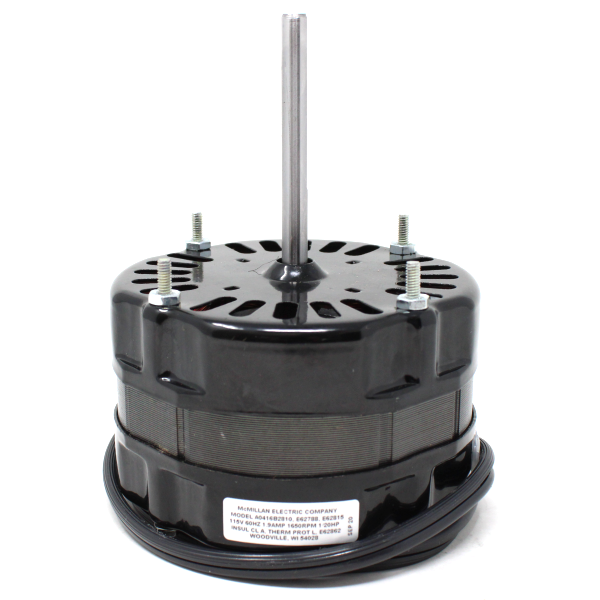

Mestek J31R04766 ODP Fan Motor 1/20 HP

Product Description

The MESTEK J31R04766, also referenced as 11J31R04766, is an OEM Open Drip Proof (ODP) unit heater fan motor engineered for dependable performance in 30 and 45 MBH Beacon-Morris unit heaters. Operating at 115V, 1.9 amps, 1650 RPM, and 1/20 HP, it ensures reliable heat circulation and consistent operation.

• OEM replacement motor manufactured to Beacon-Morris specifications.
• Open Drip Proof (ODP) housing for proper ventilation and cooling.
• Thermally protected design enhances safety and motor longevity.

Product Highlights

This direct-fit replacement restores proper airflow for optimal heat distribution and efficiency in residential, commercial, and light industrial environments.

Product Information

Standard Information

• Brand: MESTEK
• Manufacturer Part Number: J31R04766
• Country of Origin: United States

Technical Specifications

• Part Number: J31R04766 (Alt: 11J31R04766)
• Manufacturer: McMillan Electric Company
• Model Number: A0416B2810
• Voltage: 115V
• Frequency: 60 Hz
• Current Draw: 1.9 AMP
• Speed: 1650 RPM
• Horsepower: 1/20 HP
• Motor Type: ODP – Open Drip Proof
• Thermal Protection: Yes
• Insulation: Class A
• Compatible Heater Sizes: 30 & 45 MBH
• Compatible Series: BRT, BTU, BRU, BST
• Country of Origin: United States
