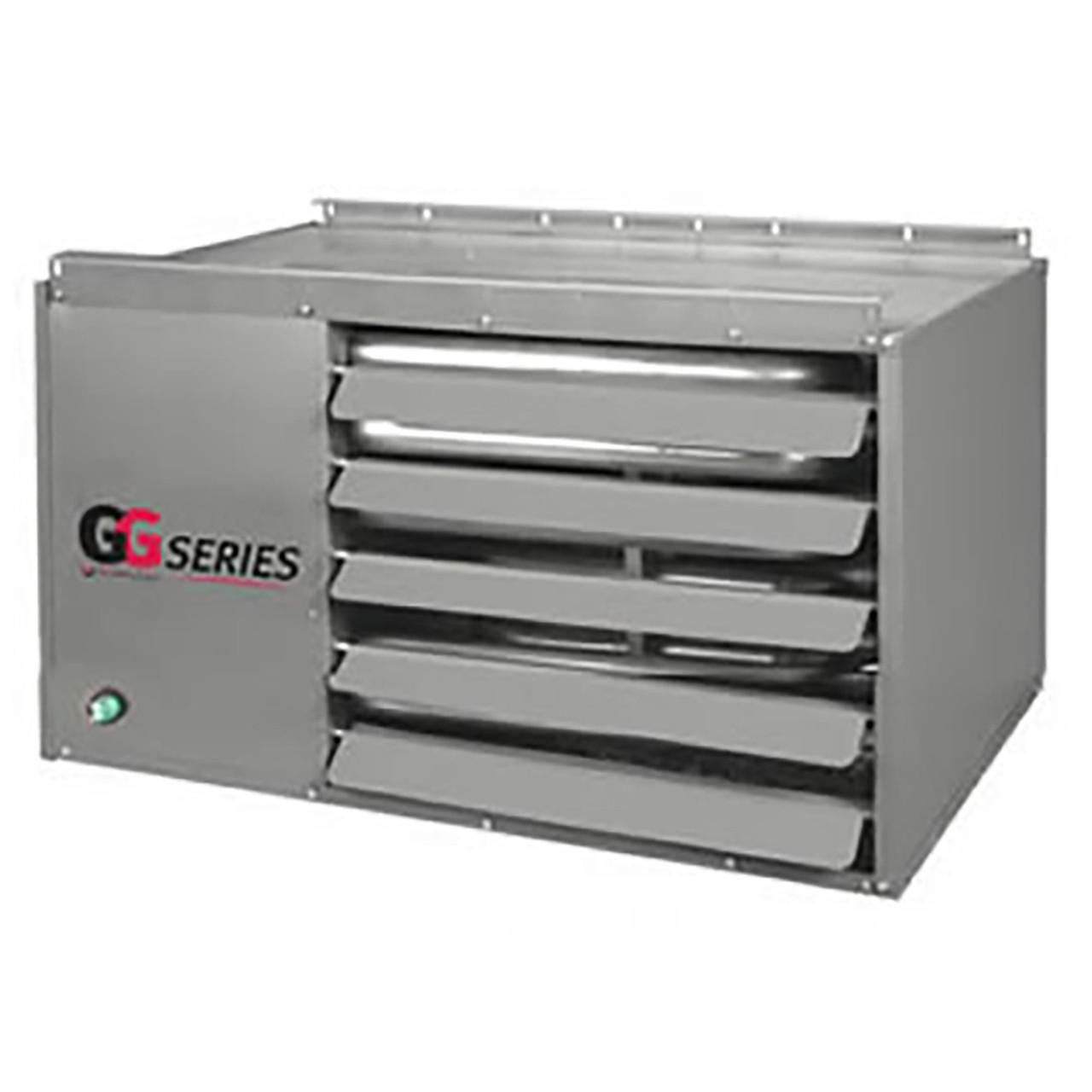

Mestek gg075a1nsa11 Low Profile Unit Heater 75000 Btu/h

Product Description

The MESTEK gg075a1nsa11 is a residential and commercial low-profile gas-fired unit heater rated at 75,000 BTU/h on natural gas. It operates on 115 volts with an 82% AFUE efficiency rating and uses a single-stage direct spark ignition system. The heat exchanger is constructed of aluminum. A 1/12 HP open drip-proof (ODP) motor drives the unit. The heater is power-vented and supports either standard vent configuration or separated combustion with the addition of an LP conversion kit. Licensed HVAC technicians and commercial mechanical contractors typically install this unit in occupied or semi-conditioned spaces where ceiling-mounted heat delivery is required.

This unit heater is suited for residential garages, warehouses, workshops, loading docks, and light commercial spaces where a low-profile ceiling-mounted heating solution is needed. The power-vented design allows flexible vent routing, and the separated combustion option supports installations where indoor air quality or makeup air is a concern. The included LP kit compatibility expands fuel options where natural gas is not the available utility.

Key Features

• 75,000 BTU/h heating capacity on natural gas
• 82% AFUE single-stage operation for consistent heat output
• Direct spark ignition eliminates standing pilot
• Aluminum heat exchanger for corrosion resistance
• 1/12 HP ODP motor in a low-profile cabinet design
• Power-vented with support for standard or separated combustion venting
• LP conversion kit compatible for alternate fuel installations

Compatibility

Designed as an OEM-style residential and commercial low-profile unit heater replacement or new installation; compatible with LP conversion kit for propane fuel service as noted in product specifications.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified mechanical contractor in accordance with local mechanical codes and the appliance manufacturer instructions. Disconnect and lock out all electrical power and shut off the gas supply at the service valve before beginning any installation or service work. Venting must be routed and sized per the appliance instructions and applicable codes such as the IFGC or local equivalent. Do not operate the unit without all vent connections fully secured and leak-tested at the gas train.

Technical Specifications

• Heating Capacity: 75,000 BTU/h
• AFUE: 82%
• Fuel Type: Natural Gas
• Voltage: 115 volts
• Motor Horsepower: 1/12 HP
• Motor Type: Open Drip-Proof (ODP)
• Ignition: Direct Spark
• Heat Exchanger Material: Aluminum
• Stages: 1
• Venting: Power Vented
• Unit Weight: 95 pounds

Standard Information

• Brand: MESTEK
• Manufacturer Part Number: gg075a1nsa11
