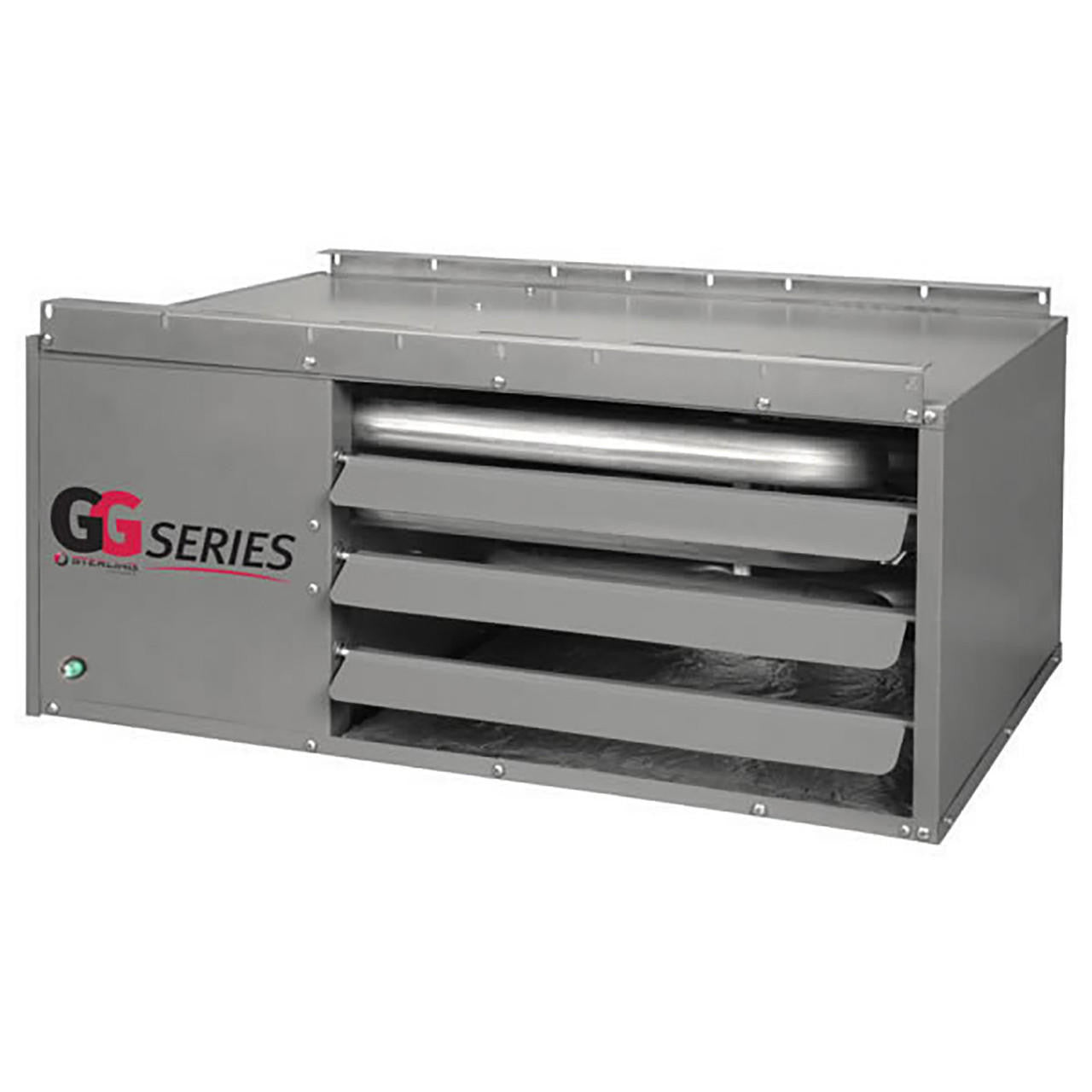

Mestek gg030a1nsa11 Low Profile Gas Unit Heater 30000 Btu/h

Product Description

The MESTEK gg030a1nsa11 is a residential and commercial low profile gas-fired unit heater rated at 30,000 BTU/h on natural gas. It operates on 115 volts and delivers 83% thermal efficiency through a single-stage direct spark ignition system with an aluminum heat exchanger. The unit is power vented and ships ready for standard venting or separated combustion with an LP conversion kit included. A 1/20 HP open drip-proof (ODP) motor drives the fan. At approximately 70 pounds, it is a self-contained forced-air heating appliance suited for overhead suspended installation by licensed HVAC technicians.

The gg030a1nsa11 fits residential and light commercial applications where ceiling height is limited and a low-profile cabinet is required. Typical install locations include garages, workshops, warehouses, utility spaces, and small commercial bays. The power vented design allows flexible vent routing, and the separated combustion option makes it viable in tight or semi-sealed spaces where indoor combustion air may be restricted. The included LP kit provides field-convertibility to propane without sourcing a separate orifice package.

Key Features

• 30,000 BTU/h heating output on natural gas
• 83% thermal efficiency with single-stage direct spark ignition
• Aluminum heat exchanger for corrosion resistance in typical garage and light industrial environments
• Power vented operation with standard vent or separated combustion capability
• Field-convertible to propane via included LP kit
• 1/20 HP ODP motor; 115-volt single-phase power supply
• Low profile cabinet design for overhead installation in spaces with limited clearance

Compatibility

Designed as an OEM residential and commercial low profile gas unit heater replacement or new installation unit. Field-convertible to LP with the included kit. Consult the unit nameplate and installation manual to verify venting configuration and gas supply requirements before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the National Fuel Gas Code (NFPA 54 / ANSI Z223.1) and applicable local codes. Shut off gas supply and disconnect electrical power before servicing or connecting the unit. Vent system must be sized and configured per the manufacturer installation manual for either standard power-vented or separated combustion mode. Do not operate the unit before verifying gas type, supply pressure, and vent integrity.

Technical Specifications

• Heating Capacity: 30,000 BTU/h
• Fuel Type: Natural Gas (LP convertible with included kit)
• Voltage: 115 volts
• Thermal Efficiency: 83%
• Ignition Type: Direct Spark
• Staging: Single Stage
• Heat Exchanger Material: Aluminum
• Motor: 1/20 HP ODP
• Venting: Power Vented; Standard Vent or Separated Combustion
• Unit Weight: 70 pounds

Standard Information

• Brand: MESTEK
• Manufacturer Part Number: gg030a1nsa11
