Mestek 1144136000 Radiant Heater Body Package 30 Ft

Product Description

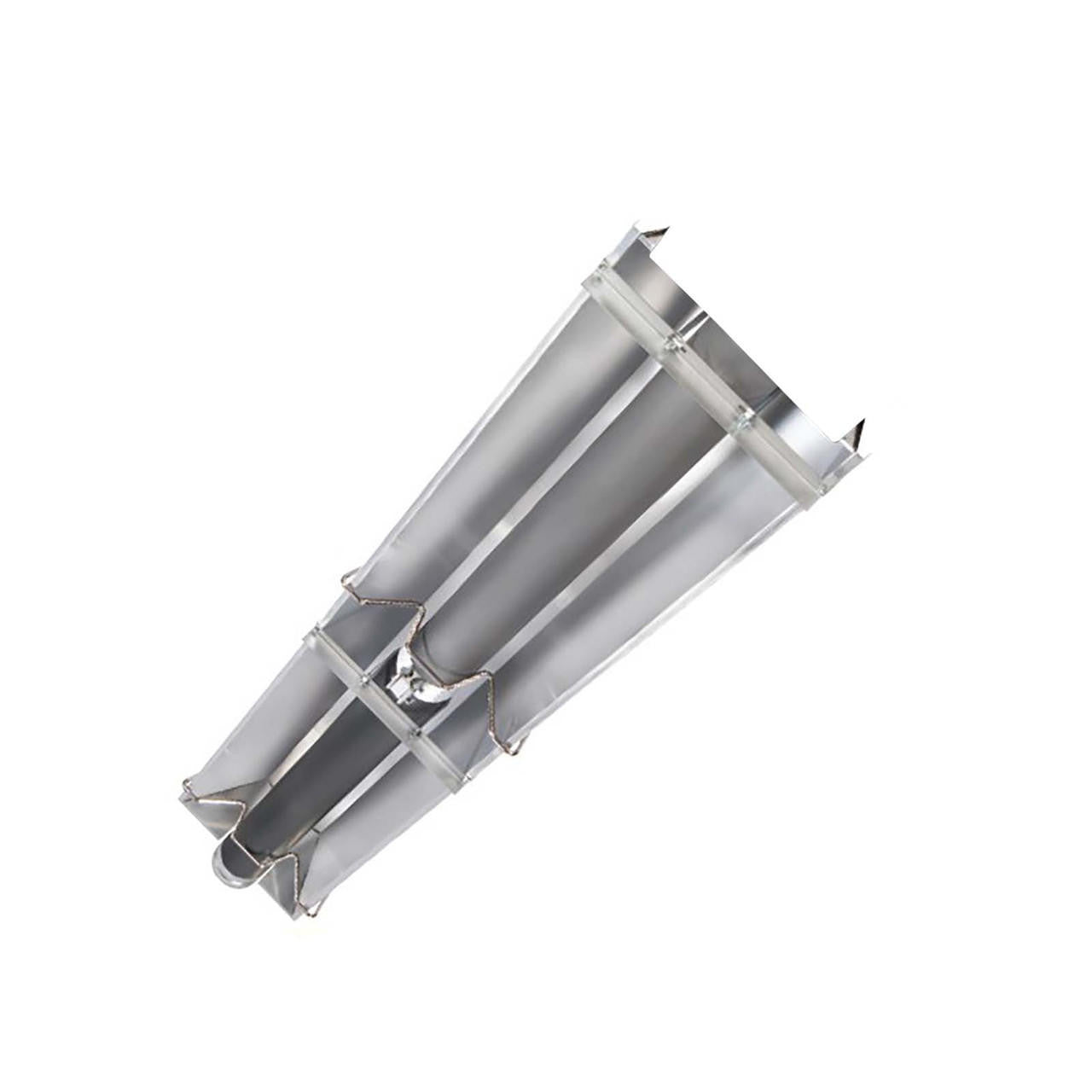

The MESTEK 1144136000 is a 30-foot body package assembly designed for RSS Series infrared radiant tube heaters rated from 50 to 125 MBH. The package includes a 12-hole flanged aluminized steel combustion chamber, two hot-rolled steel heat exchanger tubes with reflectors, couplings, mounting brackets, hangers, and a body fastener kit. All primary structural and radiating components ship together, allowing installation crews to assemble a complete radiant tube heater body without sourcing individual hardware separately. This assembly is intended for licensed HVAC technicians and commercial heating contractors working on infrared heating installations.

This body package is sized for 30-foot radiant tube heater runs and is compatible with RSS Series units in the 50 to 125 MBH input range. Typical applications include commercial and industrial spaces such as warehouses, garages, manufacturing facilities, and agricultural buildings where overhead infrared radiant heat is specified. The package supports direct replacement or new installation of a full heater body assembly in ceiling-suspended configurations.

Key Features

• 30-foot assembly length suits standard commercial bay heating layouts
• Aluminized steel combustion chamber with 12-hole flanged design for secure burner connection
• Two hot-rolled steel heat exchanger tubes with reflectors for directed radiant output
• Includes couplings, brackets, hangers, and fastener kit for a complete body assembly
• Rated for RSS Series heaters from 50 to 125 MBH input

Compatibility

Designed for use with Sterling RSS Series infrared radiant tube heaters rated 50 to 125 MBH, in 30-foot body configurations.

Installation Notes

Installation should be performed by a qualified HVAC technician or licensed contractor experienced with gas-fired infrared radiant heating systems. Shut off gas supply and disconnect all electrical power to the unit before disassembling or replacing any body components. Follow local mechanical codes and the manufacturer installation instructions for proper suspension height, hanger spacing, and clearance to combustibles. Do not reuse damaged or deformed couplings or fasteners.

Technical Specifications

• Body Length: 30 feet
• Compatible Input Range: 50,000 to 125,000 BTU/h
• Combustion Chamber Material: Aluminized steel
• Combustion Chamber Type: 12-hole flanged
• Heat Exchanger Material: Hot-rolled steel
• Includes: Combustion chamber, heat exchanger tubes, reflectors, couplings, brackets, hangers, body fastener kit

Standard Information

• Brand: MESTEK
• Manufacturer Part Number: 1144136000
