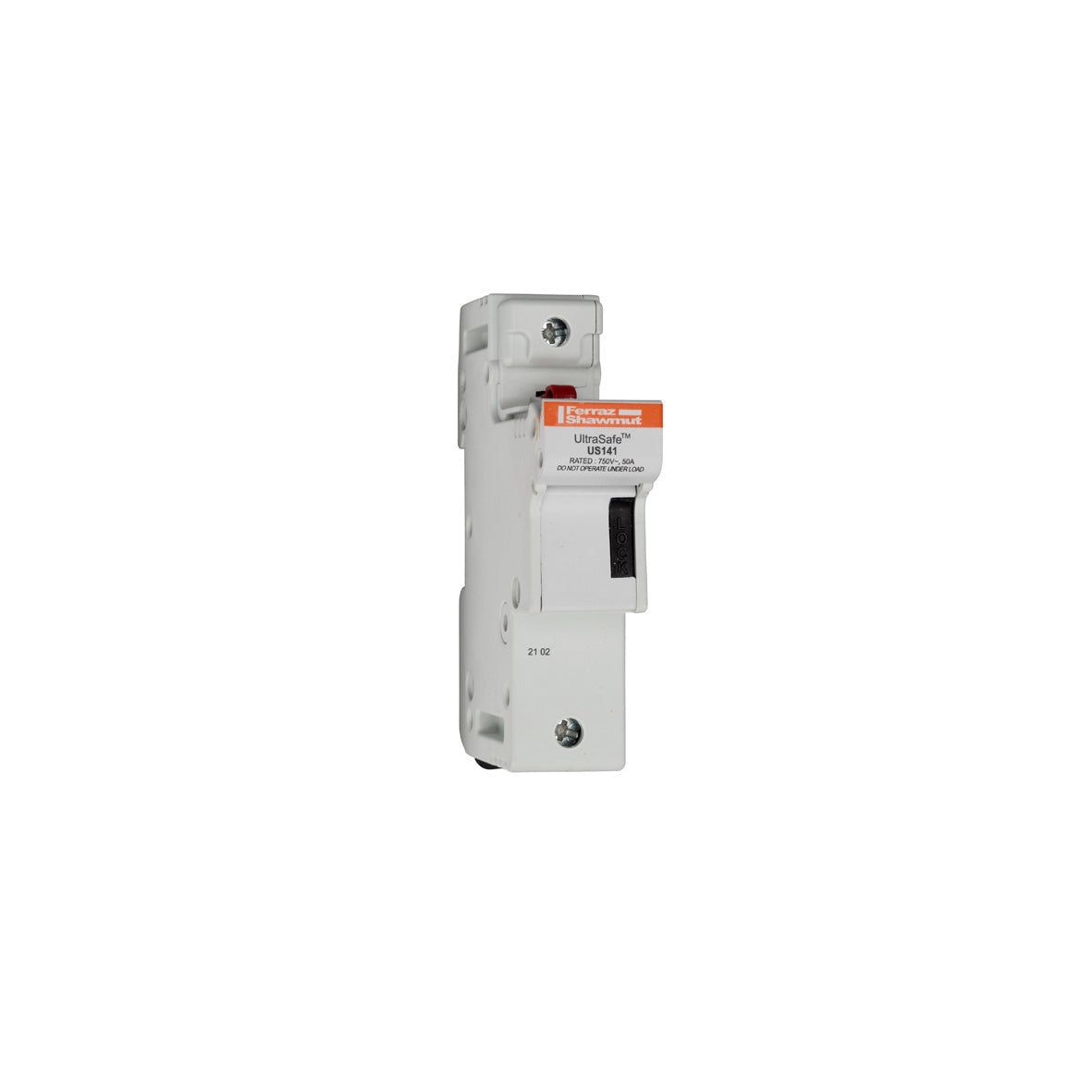

Mersen Z331153 US141 iec Ferrule Fuseholder 50 A

Product Description

The MERSEN Z331153 US141 is an IEC ferrule fuseholder. This UltraSafe™ series modular fuse-holder is finger-safe under IEC standards to an IP20 grade of protection, including fuse changing. It is made of tough and durable thermoplastic or thermoset material.

• Finger-safe under IEC standards to an IP20 grade of protection, including fuse changing
• Available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL + IEC version
• Multi-pole units can also be field assembled by ordering pin-ties assembly kit

Product Highlights

The MERSEN Z331153 US141 fuseholder offers a safe and reliable solution for protecting circuits up to 750V. Its modular design and finger-safe features make it easy to install and maintain.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: Z331153
• Country of Origin: Tunisia

Technical Specifications

• Item [Specifications]: IEC Ferrule Fuseholder US14 Series US141
• Amps AC [Specifications]: 50 A
• Voltage [Specifications]: 690 V
• Fuse Type [Specifications]: UltraSafe US14, Modular fuse-holders
• Body Material [Specifications]: Polyamide; Tin-Plated Copper
• For Fuse Size [Specifications]: 14x51
• Connector Type [Specifications]: Clip
• Mounting Style [Specifications]: DIN rail
• Voltage Rating [Specifications]: 750 V
• Number of Poles: 1-Pole
• Frequency Range (Hz) [Specifications]: 50/60 Hz
• Max. Operating Temp. [Specifications]: 60 deg C
• Short Circuit Current (KA) [Specifications]: 100 kA
• Item number: Z331153
• Catalogue No: US141
• Description: Fuse Holder UltraSafe 800VAC 1000VDC UL Fuse size 14x51 1-Pole IP20
• Rated voltage AC UL: 800 V
• Rated voltage DC UL: 1000 V
• Rated voltage AC IEC: 750 V
• Rated voltage DC IEC: 750 V
• Ampere Rating: 50 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Short Circuit Current Rating (SCCR): 100 kA
• Fuse Size: 0.551" Dia x 2.008" L (14mm x 51mm)
• Design Details: US14 single pole
• Wiring range: #2 - #14
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Clip
• Fuse Installation Method: Clip-in
• Torque Rating: 30.978 lb-in
• Max Fuse Rating: 50 A
• Housing Material: Polyamide
• Rated Impulse Withstand Voltage: 8 kV
• Rated Insulation Voltage: 690 V
• Installation Mounting: DIN rail acc. EN 60715
• Product Width: 1.04 in
• Product Length: 3.01 in
• Product Height: 4.36 in
• Product group: Fuse Holders
• Body/Insulating Material: Polyamide
• Product Weight: 0.315 lb
• Conventional Free Air thermal Current With Fuse-Links Ith: 50 A
• Brand: Mersen
• Current Rating: 50 A
• Fuse Dimensions: 3.01 x 1.04 x 4.36 in
• Manufacturer Part Number: Z331153
• Primary Type: Fuse Holder
• Series: UltraSafe Series
• Type: UltraSafe
• Diameter: 14 mm
• Volts AC: 800
• Mounting: DIN Rail
• Volts DC: 1000
• Poles: 1
• Material: Thermoplastic
• Amps: 50
• Length: 51 mm
• Class: IEC Cylindrical 14x51mm
• Size: 14 x 51 mm
• Interrupt Rating DC: 50 kA
• Interrupt Rating AC: 50 kA
• Category: Circuit Protection
• Fuseholders: For Use With/Related Products 14mm x 51mm
• Mfr: Mersen USA Newburyport-MA L.L.C.
• Fuse Type: Cartridge
• Fuseholder Type: Holder
• Packaging: Bulk
• Number of Circuits: 1
• Part Status: Active
• Voltage: 750V
• Mounting Type: DIN Rail
• Orientation: Vertical
• Termination Style: Screw Terminal, Pressure Plate
• Current Rating (Amps): 50 A
• Alternate Catalog Number: US141
• Application: All circuits up to 750V requiring semiconductor fuses for protection of small inverters, UPS systems, motor drives, etc
• Connection: Pressure Plate
• Connection Type: Pressure Plate
• Country of Origin: TN
• EU RoHS Indicator: Y
• Fuse Diameter: 14 mm
• Fuse Length: 51 mm
• Height: 4.36 in
• Length [Metric]: 76.5000 mm
• Power Rating: 5 W
• Replaced Catalog Number: US141
• Standard: UL Recognized Component to standard 4248-1, File E52283 CSA Certified C22.2, Class 6225, File 32169 IEC Compliant to 60269-2-1, 60947-3
• Standards: RoHS CompliantUL 4248-1UL File No. E52283 Guide No. IZLT2CSA C22.2 Class 6225/32169IEC 60269-2IEC 60947-3CE Marked
• Sub Brand: UltraSafe?
• Suitable For Use With: Cylindrical Fuse Link
• Temperature Rating: -25 to 60 C
• UNSPSC: 39121624
• Width: 1.04 in
• Amperage Rating: 50 A
• Voltage Rating: 750 VAC
• Wire Size: 14 to 2 AWG
