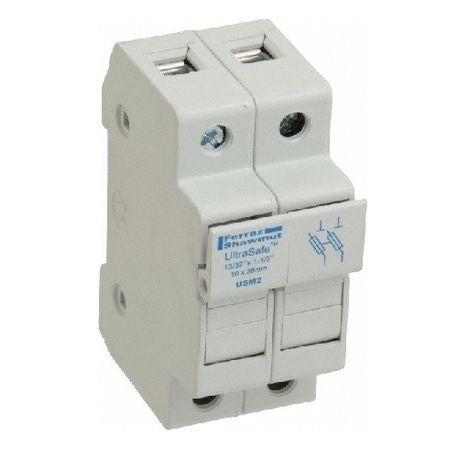

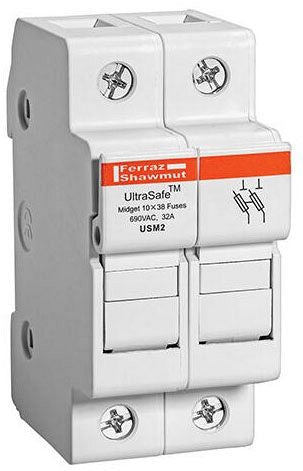

Mersen USM2 2-Pole UltraSafe Modular Fuse Holder 800 VAC/1000 VDC 30 A

Product Description

Mersen USM2 is a modular fuse holder designed for class CC and midget fuses rated up to thirty amperes. This product qualifies as finger-safe under IEC and DIN standards with an IP20 grade of protection. It allows for easy fuse changes to ensure safety. The modular design makes it suitable for various applications including motors, control circuits, transformers, and photovoltaic systems.

• Finger-safe design to prevent accidental contact.
• DIN rail compatible for easy installation.

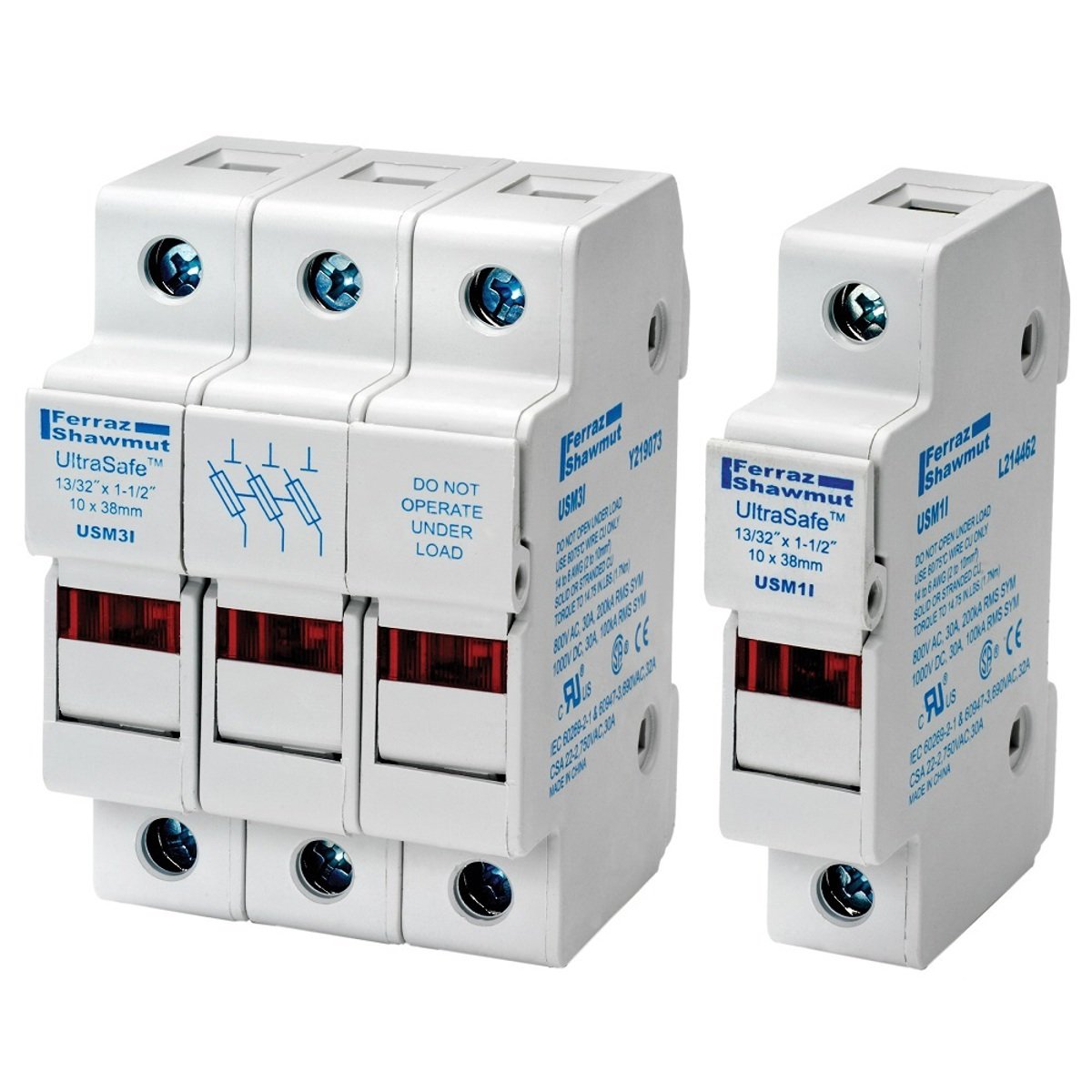

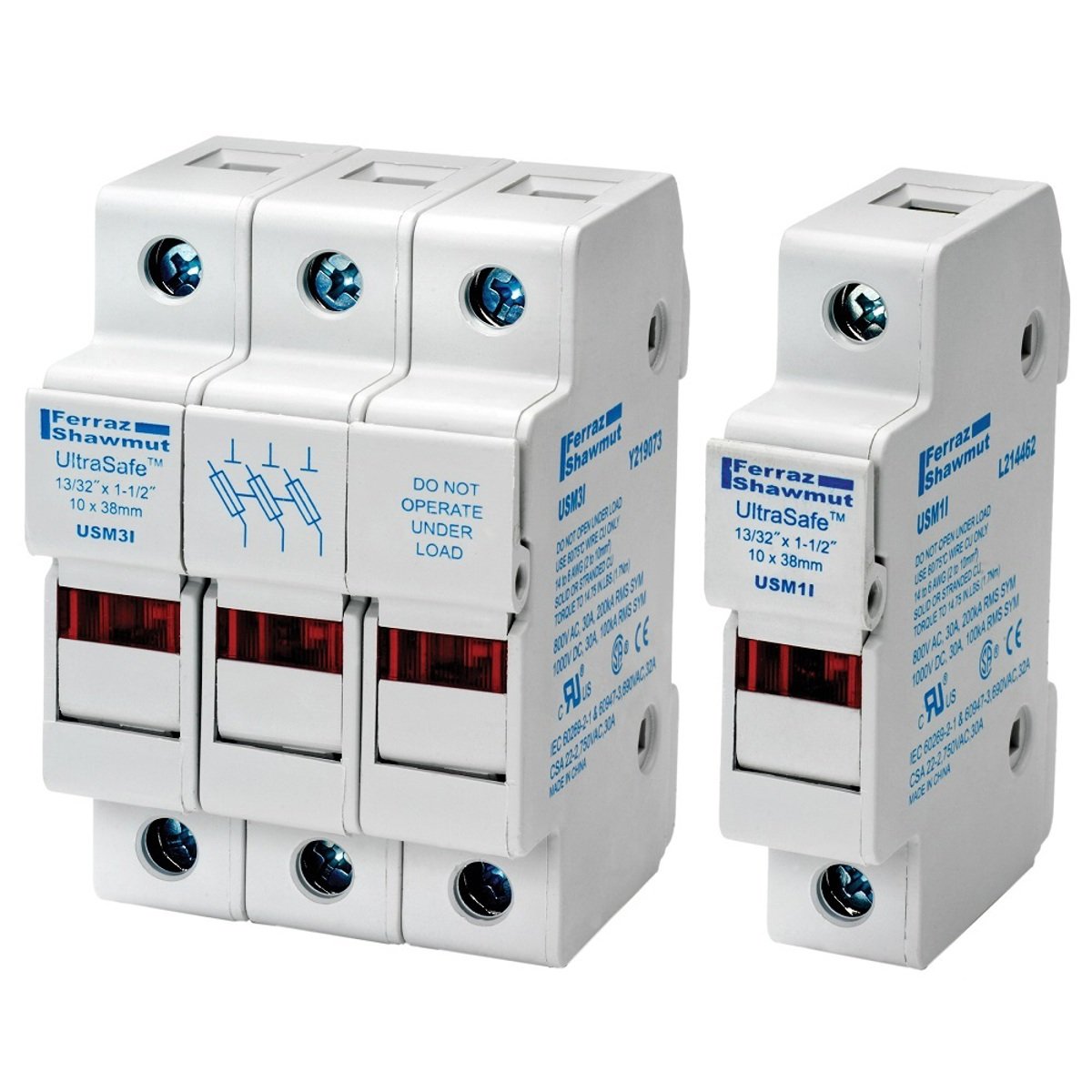

• Visual blown fuse indication option available.

Product Highlights

The UltraSafe design provides a compact footprint and quick, tool-free fuse changing, which saves time during installation and maintenance.

Product Information

Standard Information

• Material: Polyamide
• Country of Origin: China

Technical Specifications

• Voltage Rating: 800 VAC/1000 VDC
• Amperage Rating: 30 A
• Number of Poles: 2
• Fuse Type: 13/32 Inch x 1-1/2 Inch Midget
• Temperature Rating: -40 to 85 deg C
• Connection Type: Pressure Plate
• Mounting Type: DIN Rail
• Dimensions: 3.07 in L x 1.38 in W x 2.32 in H
