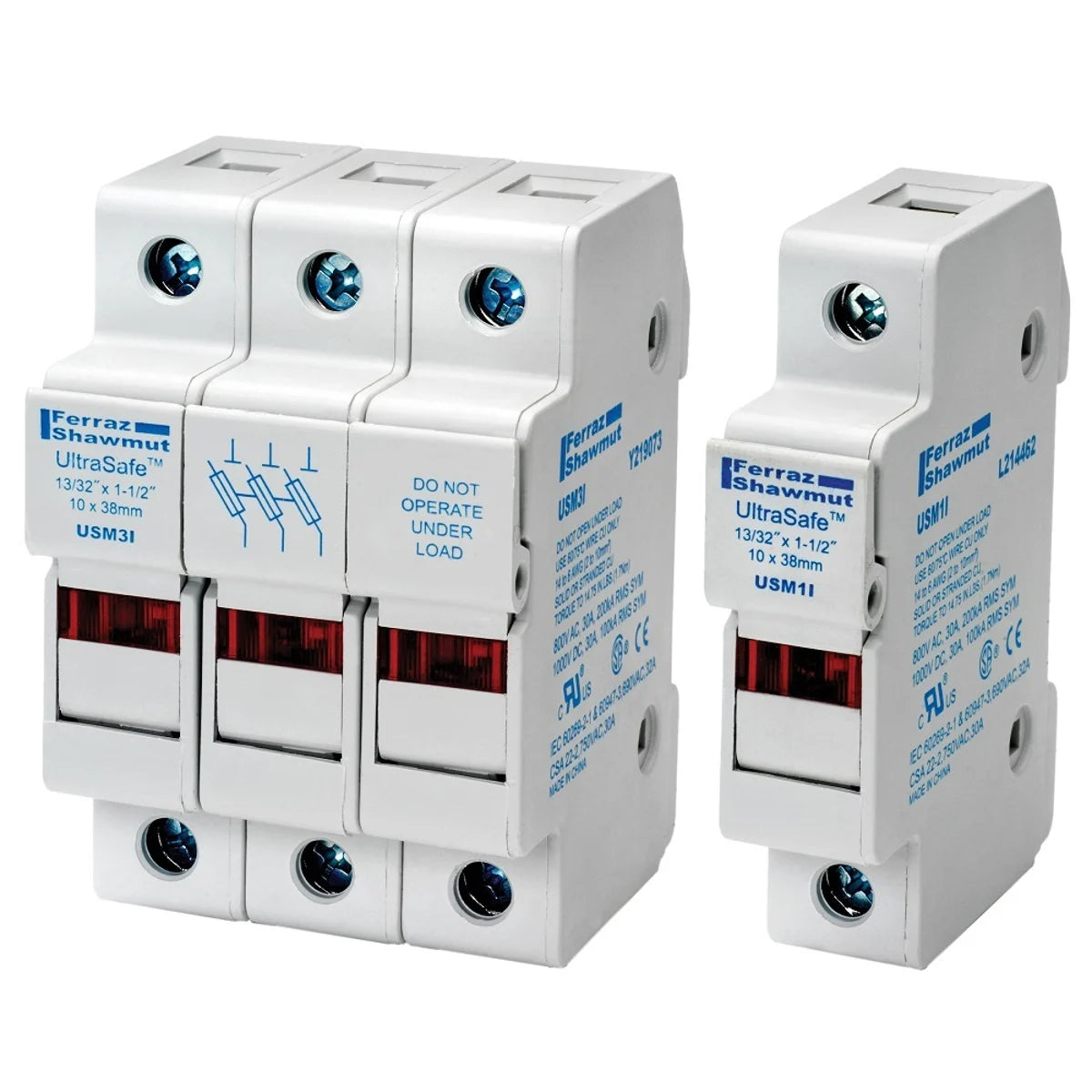

Mersen USM1 1-pole UltraSafe modular fuse holder for midget fuses, 30 Amps, 600V

Product Description

The Mersen USM1 is a modular fuse holder designed for class CC and midget fuses rated up to thirty amperes. This product meets IEC and DIN safety standards, achieving IP20 grade protection, allowing for safe fuse changes. It is an essential component for circuits up to six hundred volts, suitable for various applications including motors and transformers.

• IP20 Finger-Safe design
• DIN-rail mounting option
• Tool-free fuse change

Product Highlights

This fuse holder reduces installation space by up to fifteen percent and can accommodate multiple poles easily. The durable polyamide structure ensures reliable insulation properties.

Product Information

Standard Information

• Manufacturer: Mersen
• Part Number: USM1

Technical Specifications

• Voltage Rating: 600V AC, 1000V DC
• Amperage Rating: 30A
• Wire Size: 14 to 6 AWG
• Material: Polyamide
• Mounting Type: DIN Rail
• Number of Poles: 1
• Temperature Rating: -40 to 85 degrees Celsius
• Standard Compliance: UL, CSA, IEC
