Product Description

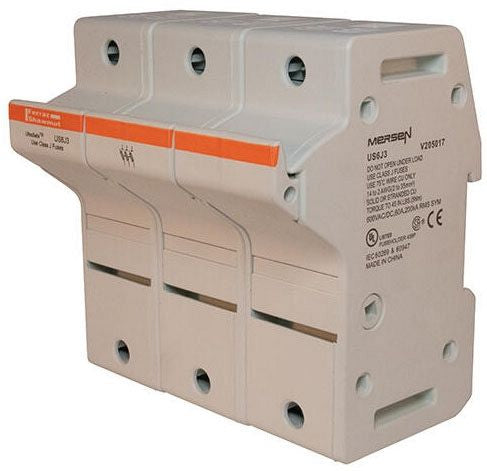

The Mersen US6J3 FER is a modular fuse holder designed for use with Class J fuses. It operates at 600 volts AC or DC with a current rating of sixty amps. This device has a finger-safe design that meets IP20 protection standards for safety during installation and maintenance.
- Finger-safe IP20 protection
- Compact design for easy installation
- Handles wire sizes from fourteen to two AWG
Product Highlights
Mersen's UltraSafe modular fuse holders provide high safety standards and convenience in applications involving 600 V motors, transformers, lighting, heating, control circuits, and general loads.
Product Information
Standard Information
Technical Specifications
-
Voltage Rating: 600 VAC/VDC
-
Amperage Rating: 60 A
-
Number of Poles: 3
-
Fuse Type: Class J
-
Material: Polyamide
-
Dimensions: 122 mm H x 120 mm W x 115 mm D
-
Wire Size: 14 to 2 AWG
-
Fuse Length: 58 mm
-
Fuse Diameter: 22 mm
-
Mounting Type: DIN Rail
-
Connection Type: Pressure Plate
-
Number of Phases: 3
-
Country of Origin: CN
-
Suitable For Use With: Class J Fuse
