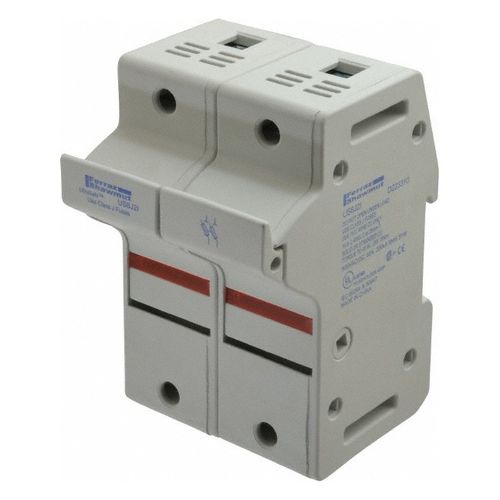

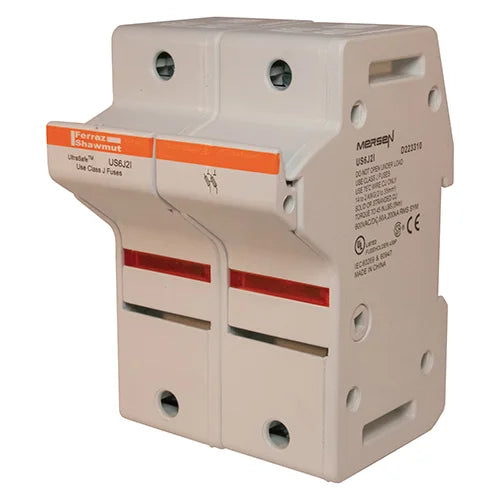

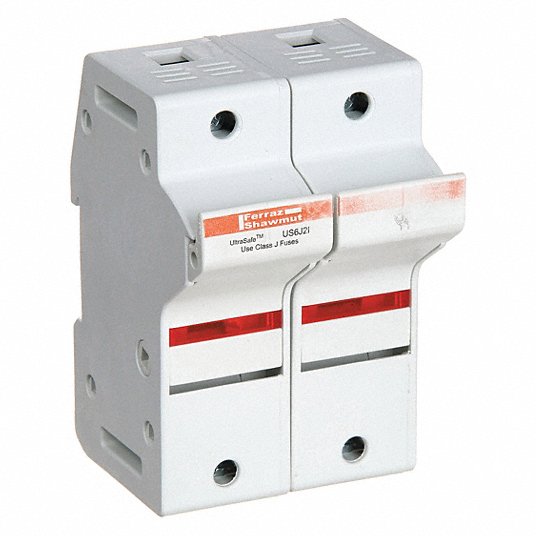

Mersen US6J2I Fuse Holder, 2 Pole, 600 VAC/VDC, 60A

Product Description

The MERSEN US6J2I is a 2-pole fuse holder designed for DIN rail mounting. It supports 600 VAC/VDC and 60 Amp fuses. Compatible with Class J fuses, it accommodates 58mm long x 2.56 Inch wide and 22mm diameter fuses. The UltraSafe design ensures finger-safe operation to an IP20 grade of protection under IEC standards.

• Supports 60 Amp fuses
• Rated for 600 VAC/600 VDC
• Designed for DIN Rail mounting

Product Highlights

The MERSEN US6J2I fuse holder provides a safe and easy solution for installing and replacing Class J fuses in industrial and commercial applications.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: US6J2I
• Country of Origin: China

Technical Specifications

• Amperage: 60 A
• Poles: 2
• Voltage: 600 VAC/600 VDC
• Item number: US6J2I
• Description: Fuse Holder UltraSafe 600VAC 600VDC Class J 60A 2-Pole LED Pressure Plate IP65
• EAN/UPC Code: 782001830908
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 600 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 60 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Class J
• Short Circuit Current Rating (SCCR): 200 kA
• Fuse Type/Class: Class J
• Indication System: Yes
• Indication System Type: LED
• Number of Poles: 2-Pole
• Wiring range: #2 to 14 AWG
• Fuse Installation Method: Clip-in
• Torque Rating: 45 lb-in
• Max Fuse Rating: 60 A
• Installation Mounting: DIN Rail
• Product Width: 3.15 in
• Product Length: 4.8 in
• Product Height: 3.5 in
• Product group: Fuse Holders
• Body/Insulating Material: Polyamide
• Product Weight: 1.22 lb
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: D223310
• Application: 600V motors, transformers, lighting, heating, control circuits, general loads
• Contact Material: Tin-plated Copper
• Current Rating: 60 A
• Diameter: 1.13 in
• Manufacturer Part Number: US6J2I
• Primary Type: Fuse Holder
• Series: UltraSafe Series
• Standards: UL Listed to standard 4248-8, File E52283 CSA Certified C22.2, Class 6225, File 32169
• Termination: Pressure Plate
• Type: Cylindrical, With Blades
• AC Voltage Rating: 600 V AC
• DC Voltage Rating: 600 V DC
• Current - Maximum: 60 A
• Current - Minimum: 31 A
• Fits Fuse Class or Type: Class J
• Fuse Block Connector Type: Pressure Plate
• Fuse Block Design: Finger-Safe
• Fuse Block Mounting Style: DIN Rail
• Fuse Block Style: Non-Rejection
• Includes Auxiliary Contact: No
• Includes Communication Feature: No
• Overall Height: 4.8 in
• Overall Length: 3.5 in
• Overall Width: 3.16 in
• Visual Indication: Indicating
• Wire Size - Maximum: 2 AWG
• Wire Size - Minimum: 14 AWG
• UNSPSC: 39121411
