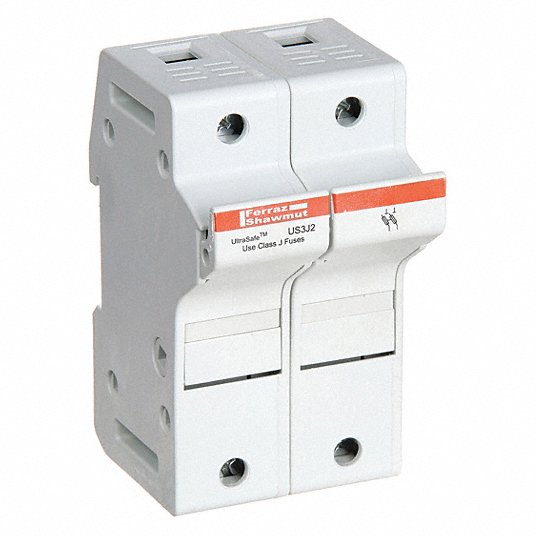

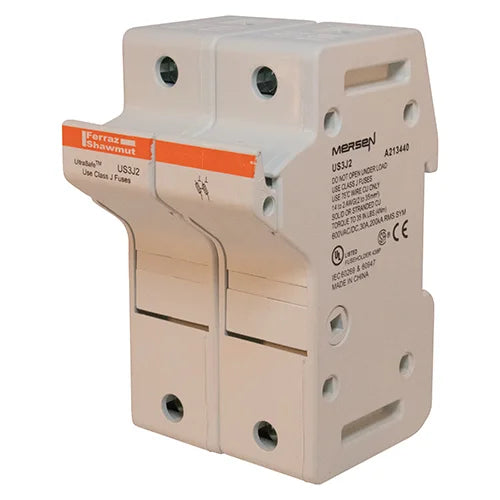

Mersen US3J2 Fuse Holder UltraSafe 600VAC 600VDC Class J 30A 2-Pole

Product Description

The MERSEN US3J2 is a UltraSafe modular 600 Volt fuse holder for Class J fuses, introducing a new level of safety and ease for installing or replacing Class J fuses. UltraSafe holders qualify as “finger-safe” to an IP20 grade of protection under IEC standards. The US3J accommodates 30A Class J or 22 x 58 mm French Ferrule fuses.

• UltraSafe Modular 600 Volt Fuse Holders
• Qualify as “finger-safe” to an IP20 grade of protection under IEC standards
• Accommodates 30A Class J or 22 x 58 mm French Ferrule fuses

Product Highlights

This fuse holder facilitates quick and easy fuse changes and can be snap-mounted to 35mm DIN rail. Its body is made of tough and durable polyamide.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: US3J2
• Country of Origin: China

Technical Specifications

• Item number: US3J2
• Description: Fuse Holder UltraSafe 600VAC 600VDC Class J 30A 2-Pole Pressure Plate IP65
• EAN/UPC Code: 782001307721
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 600 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 30 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Class J
• Short Circuit Current Rating (SCCR): 200 kA
• Fuse Type/Class: Class J
• Number of Poles: 2-Pole
• Wiring range: #2 to 14 AWG
• Fuse Installation Method: Clip-in
• Torque Rating: 35 lb-in
• Max Fuse Rating: 30 A
• Housing Material: Polyamide
• Installation Mounting: DIN Rail
• Product Width: 2.56 in
• Product Length: 4.49 in
• Product Height: 3.15 in
• Product group: Fuse Holders
• Product Weight: 0.97 lb
• Amperage: 30
• Voltage: 600 Volts AC
• Poles: 2
• Type: Non-Indicator
• Features: "Finger Safe" to an IP20 grade of protection under IEC Standards, Snap mounted to 35mm DIN rail
• Body Material: Polyamide
• AC Voltage Rating: 600 V AC
• DC Voltage Rating: 600 V DC
• Manufacturer: Mersen / Ferraz Shawmut
• Family: Ultrasafe
• Category: Fuses
• Dimensions (HxWxD): 2.56 x 4.49 x 3.15
• Current - Maximum: 30 A
• Current - Minimum: 0 A
• Fits Fuse Class or Type: Class J
• Fuse Block Connector Type: Pressure Plate
• Fuse Block Design: Finger-Safe
• Fuse Block Mounting Style: DIN Rail
• Fuse Block Style: Non-Rejection
• Includes Auxiliary Contact: No
• Includes Communication Feature: No
• Overall Height: 3.15 in
• Overall Length: 4.49 in
• Overall Width: 2.56 in
• Standards: CSA Certified; UL Listed
• Visual Indication: Non-Indicating
• Wire Size - Maximum: 2 AWG
• Wire Size - Minimum: 14 AWG
• UNSPSC: 39121411
