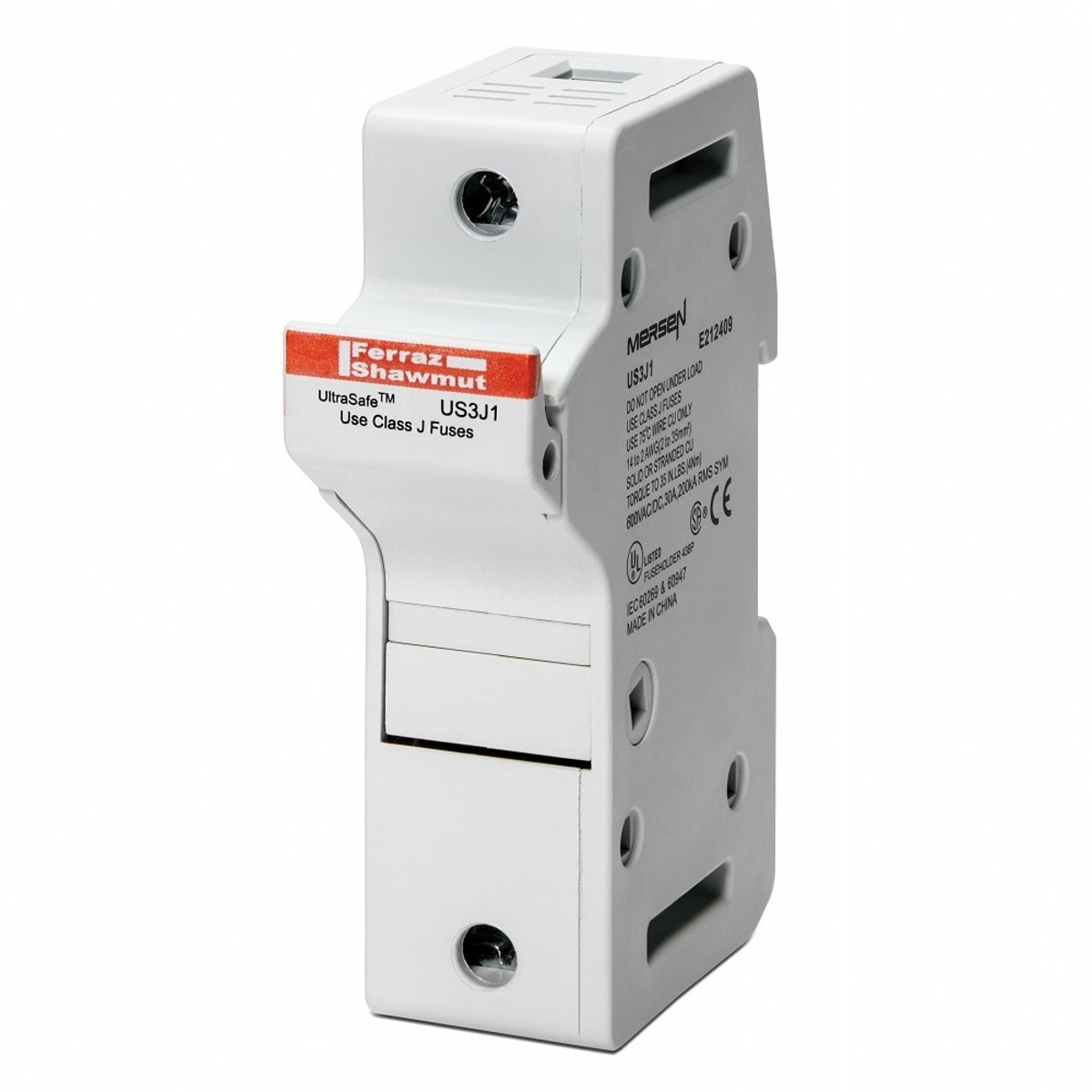

Mersen US3J1I 30A J 1P ULTRASAFE Fuse Holder

Product Description

The Mersen US3J1I is a 30 amp ULTRASAFE modular fuse holder designed for use with Class J fuses. This 1 pole unit supports voltages up to 600 VAC/VDC and accommodates wire sizes from fourteen to two AWG. The design meets IP20 standards, offering finger-safe protection, which adds safety during fuse installation or replacement.

• 30 amp capacity for Class J fuses
• Finger-safe to IP20 standards
• DIN rail mountable with provisions for locking during servicing

Product Highlights

This modular fuse holder simplifies fuse changes and offers a compact design suitable for various applications including motors, transformers, and control circuits.

Product Information

Standard Information

• Manufacturer: Mersen
• Part Number: US3J1I

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC/VDC
• Fuse Diameter: 22 mm
• Fuse Length: 58 mm
• Connection Type: Pressure Plate
• Number of Poles: 1
• Material: Polyamide
• Mounting Type: DIN Rail
• Suitable For Use With: Class J French Ferrule Fuses
