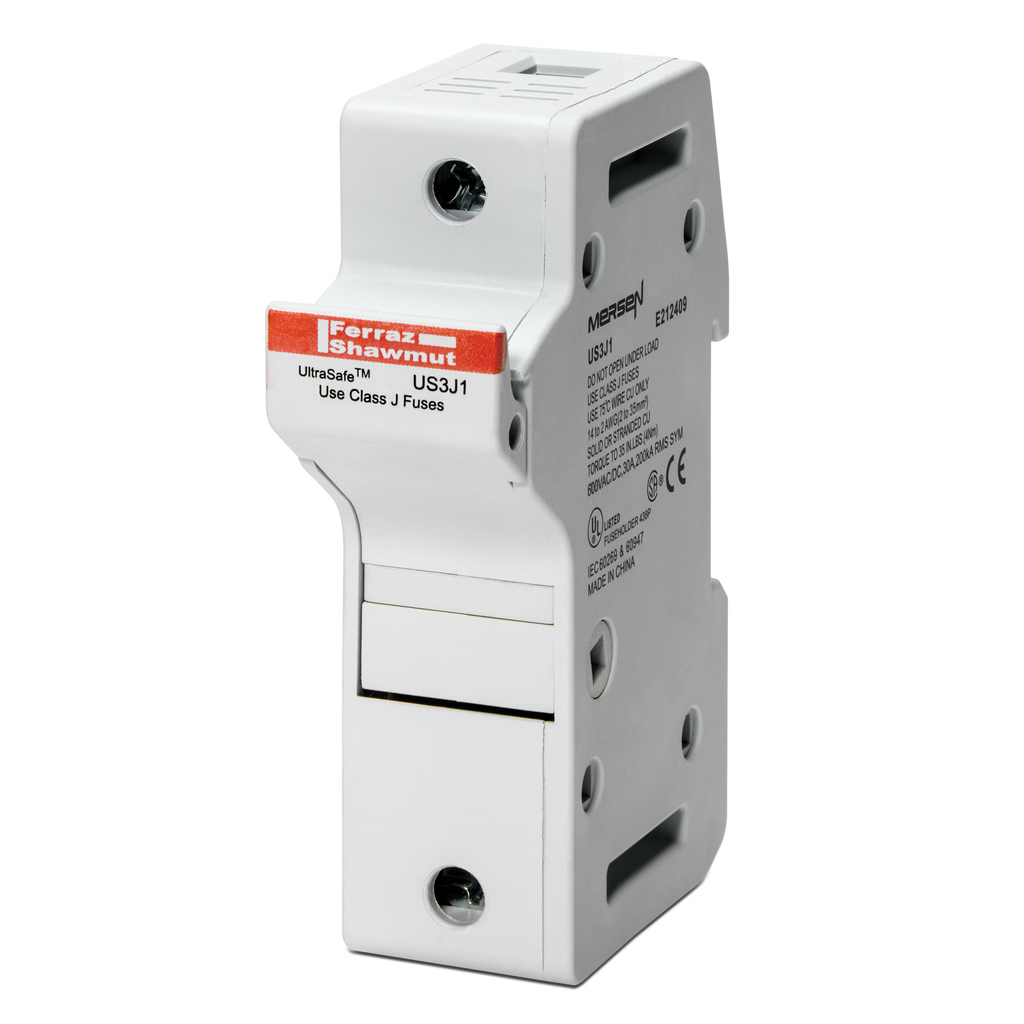

Mersen US3J1 Fuse Holder UltraSafe 600VAC 600VDC Class J 30A 1-Pole

Product Description

The MERSEN US3J1 UltraSafe modular 600 Volt fuse holder is designed for Class J fuses, introducing a new level of safety and ease for installing or replacing Class J fuses. UltraSafe holders qualify as finger-safe to an IP20 grade of protection under IEC standards. It accommodates 30A Class J or 22 x 58 mm French Ferrule fuses.

• Finger-safe to an IP20 grade of protection under IEC standards
• Accommodates 30A Class J or 22 x 58 mm French Ferrule fuses
• Snap-mounted to 35 mm DIN-rail

Product Highlights

The US3J1 fuse holder features a unique latch that stays open for easy repositioning and is constructed from tough, durable polyamide.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: US3J1
• Country of Origin: China

Technical Specifications

• Item number: US3J1
• Description: Fuse Holder UltraSafe 600VAC 600VDC Class J 30A 1-Pole Pressure Plate IP65
• EAN/UPC Code: 782001307714
• Rated Voltage AC UL: 600 V
• Rated Voltage DC UL: 600 V
• Frequency: 50/60 Hz
• Ampere Rating: 30 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Class J
• Short Circuit Current Rating (SCCR): 200 kA
• Fuse Type: 22 x 58 mm Class J
• Number of Poles: 1
• Wiring range: #2 to 14 AWG
• Fuse Installation Method: Clip-in
• Torque Rating: 35 lb-in
• Max Fuse Rating: 30 A
• Housing Material: Polyamide
• Installation Mounting: DIN Rail
• Product Width: 1.28 in
• Product Length: 4.49 in
• Product Height: 3.15 in
• Product group: Fuse Holders
• Product Weight: 0.46 lb
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: E212409
• Application: 600V motors, transformers, lighting, heating, control circuits, general loads
• Body Material: Polyamide
• Brand: Mersen
• Contact Material: Tin-plated Copper
• Current Rating: 30 A
• Dimensions: 3.15 in H X 4.49 in L
• Manufacturer Part Number: US3J1
• Primary Type: Fuse Holder
• Series: UltraSafe Series
• Standards: UL Listed to standard 4248-8, File E52283 CSA Certified C22.2, Class 6225, File 32169
• Termination: Pressure Plate
• Type: Cylindrical, With Blades
• Unit of Measure: EA
• AC Voltage Rating: 600
• DC Voltage Rating: 600
• Amps: 30
• Compatible Fuse Series: A4J, AJT, DFJ, HSJ, JKS, JLS, JTD, JTD-ID, LDFJ, LPJ, LPJ-I
• Current - Maximum: 30 A
• Current - Minimum: 0 A
• Fits Fuse Class or Type: Class J
• Fuse Block Connector Type: Pressure Plate
• Fuse Block Design: Finger-Safe
• Fuse Block Mounting Style: DIN Rail
• Fuse Block Style: Non-Rejection
• Includes Auxiliary Contact: No
• Includes Communication Feature: No
• Overall Height: 3.15 in
• Overall Length: 4.49 in
• Overall Width: 1.28 in
• Visual Indication: Non-Indicating
• Wire Size - Maximum: 2 AWG
• Wire Size - Minimum: 14 AWG
• UNSPSC: 39121411
• Part Number #: US3J1
• Number of Phases: 1
• Suitable For Use With: Class J French Ferrule Fuse
• Connection type: Pressure Plate
• Country of origin: CN
• Material: Polyamide
• Manufacturer Name: MERSEN
• Amperage: 30 Amp
• Applications: 600 V Motors, Transformers, Lighting, Heating, Control Circuits, General Loads
• Connector Type: Pressure Plate
• Fuse Interrupt Rating: 30 A
• Insulation Material: Polyamide
• Max Operating Temperature: 80 degrees C
• Mounting Type: DIN Rail
• Rated Voltage AC: 600 V
• Rated Voltage DC: 600 V
• Short Circuit Current Ratng: 200000 A
• TC Connection: Pressure Plate
• Voltage: 600 Volt
• Class: J
• Height: 3.15 Inch
• Length: 4.49 Inch
• Width: 1.28 in
• Voltage Rating: 600 VAC/VDC
• Standard & Approvals: UL 4248-8, File No. E52283 CSA C22.2, Class 6225, File No. 32169, CE Certified, RoHS Complaint
• Wire Size: 14 to 2 AWG
