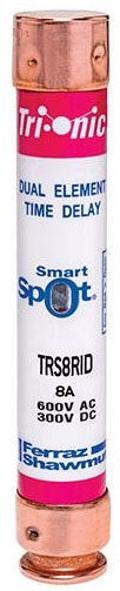

Mersen TRS8RID FER Current Limiting Low Voltage Time Delay Fuse 8 A 600 VAC/VDC TRS8RID

Product Description

The Mersen TRS8RID FER is a current limiting low voltage time delay fuse designed for motor and transformer protection. With an amperage rating of eight amps and a voltage rating of six hundred VAC/VDC, this fuse is suitable for various applications including motors, transformers, and service entrance equipment.

• Time delay to handle motor start-ups and inrush currents
• Current limiting features for reduced peak let-thru current
• Rejection style design to prevent incorrect replacements

Product Highlights

The fuse provides necessary protection against over-current conditions while ensuring reliability in harsh settings.

Product Information

Standard Information

• Brand: Mersen
• MPN: TRS8RID

Technical Specifications

• Amperage Rating: 8 A
• Voltage Rating: 600 VAC/VDC
• Interrupt Rating: 200/20 kA
• Body Size: 13/16 in Diameter x 5 in Length
• Mounting Type: Clip
• Terminal Type: Ferrule
• Class: RK5
• Material: Polyester
