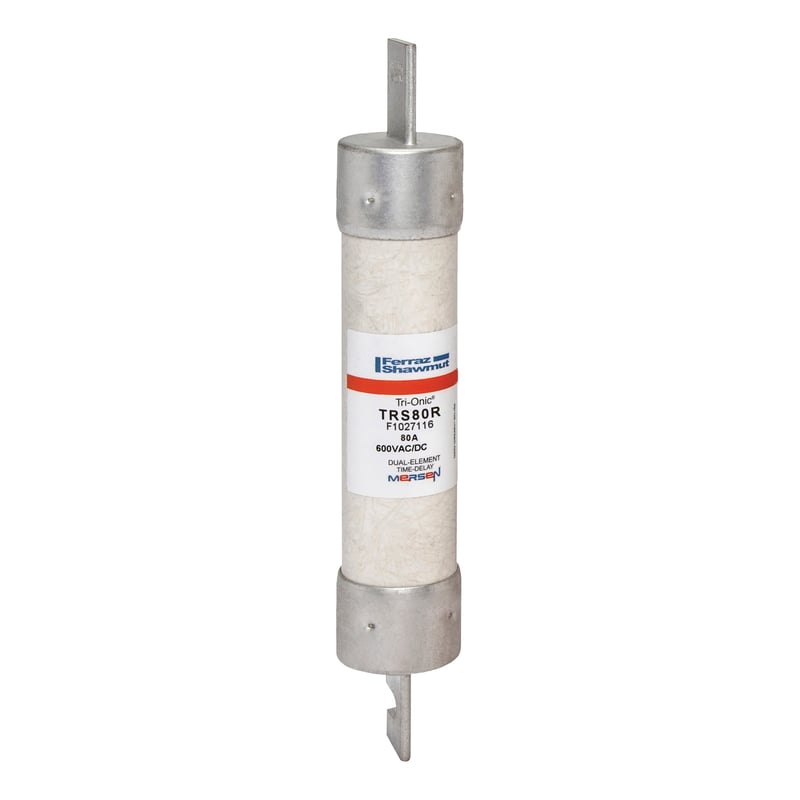

Mersen TRS80R TRS-R Time-Delay Fuse, Class RK5, 80 Amps, 600V

Product Description

The MERSEN TRS80R is a Tri-Onic TR-R current-limiting time-delay fuse engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders, and branch-circuits. Its time-delay safely handles harmless starting currents. It has a voltage rating of 600 VAC/VDC and an amperage rating of 80A.

• Optional solid-state SmartSpot blown fuse indicator
• Time-delay for motor start-ups and transformer inrush currents without nuisance opening
• Current-limiting for low peak let-thru current

Product Highlights

This time-delay fuse is ideal for motor start-ups, transformer inrush currents and provides current limiting for low peak let-thru current.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: TRS80R
• Country of Origin: MX

Technical Specifications

• Type: FUSES
• Fuse Types: LOW VOLTAGE
• Class: RK5
• Series: TRS
• Element: Dual
• Body Size: 1-5/16 in Dia x 7-7/8 in L
• Body Type: Cylindrical
• Mounting Type: Clip
• Terminal Type: Blade
• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 80 A
• Interrupt Rating: 200/20 kA
• Rejection/Non-Rejection: Rejection
• Indicating/Non-Indicating: Non-Indicating
• Application: Motor Circuits, Mains, Feeders, Branch Circuits, Transformers, Service Entrance Equipment and General Purpose Equipment
• Manufacturer: Mersen
• Brand: Mersen
• Standard & Approvals: UL 248-12 File E2137, CSA C22.2 No. 248.12
• Vendor SKU: TRS80R
• UPC: 782001749095
• Characteristics: Time Delay
• Current Rating: 80 Ampere
• Interrupting Rating (AC): 200 Kiloampere
• Interrupting Rating (DC): 100 Kiloampere
• Diameter: 1-5/16 Inch
• Length: 7-7/8 Inch
• Approval: UL 248-12, CSA C22.2
• Body Material: Polyester
• Contact Material: Copper/Tin-Plated Copper
• Fuse Type: Time Delay
• Volt Rating: 600V AC, 600V DC
• Overall Length: 7-7/8 in
• Blade Or Ferrule Length: 1.0000 in
• Blade Height: .7500 in
• Blade Width: .1250 in
• UL Approvals: Standard 248-12
• CSA Approval: Standard C22.2 No.248.12
• DC Listed UL Approval: Standard 198L
• Fuse Class: RK5
