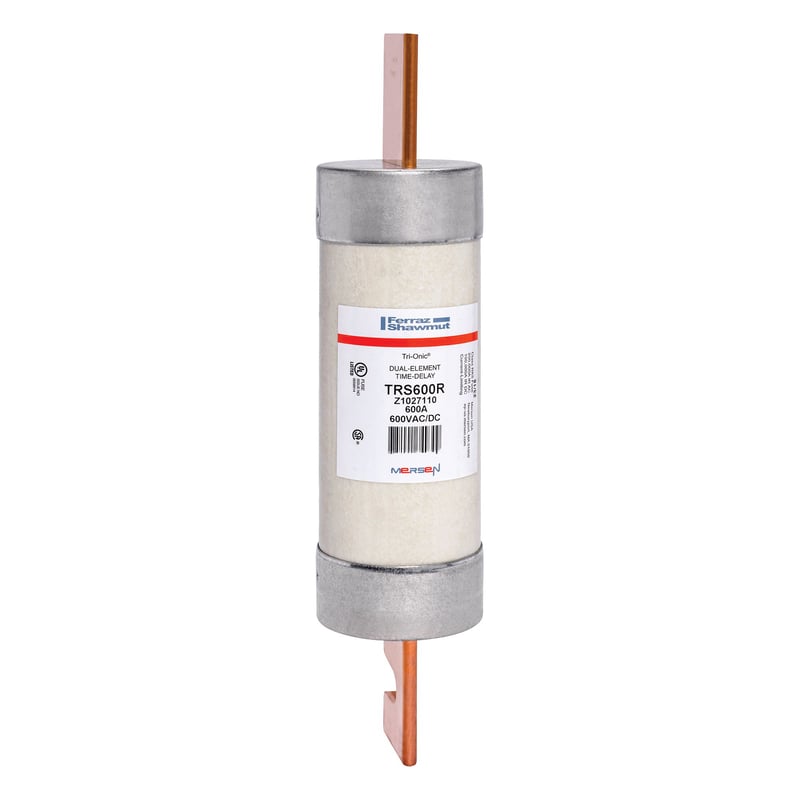

Mersen TRS600R TRS 600 AMP, 600V Time Delay/CLASS RK5

Product Description

The Mersen TRS600R is a time delay fuse designed for overcurrent protection in various applications. This fuse operates at six hundred amps and is rated for six hundred volts, suitable for AC and DC circuits. It is classified as RK5, making it ideal for handling starting currents and inrush currents that can occur with motors and transformers.

• Type: Current Limiting Time Delay Fuse
• Voltage Rating: 600 VAC/VDC
• Interrupt Rating: 200/100 kA

Product Highlights

This fuse features a cylindrical body and is built for reliability in industrial settings. Its robust design helps prevent nuisance blows during motor startups and effectively limits current.

Product Information

Standard Information

• Manufacturer: Mersen
• UPC: 782001749309

Technical Specifications

• Amperage Rating: 600 A
• Mounting Type: Clip
• Body Size: 3-1/8 inches Diameter x 13-3/8 inches Length
• Element Type: Dual
• Terminal Type: Knife Blade
• Body Type: Cylindrical
• Standards: UL 248-12, CSA C22.2 No. 248.12, RoHS Compliant
• Material: Polyester
