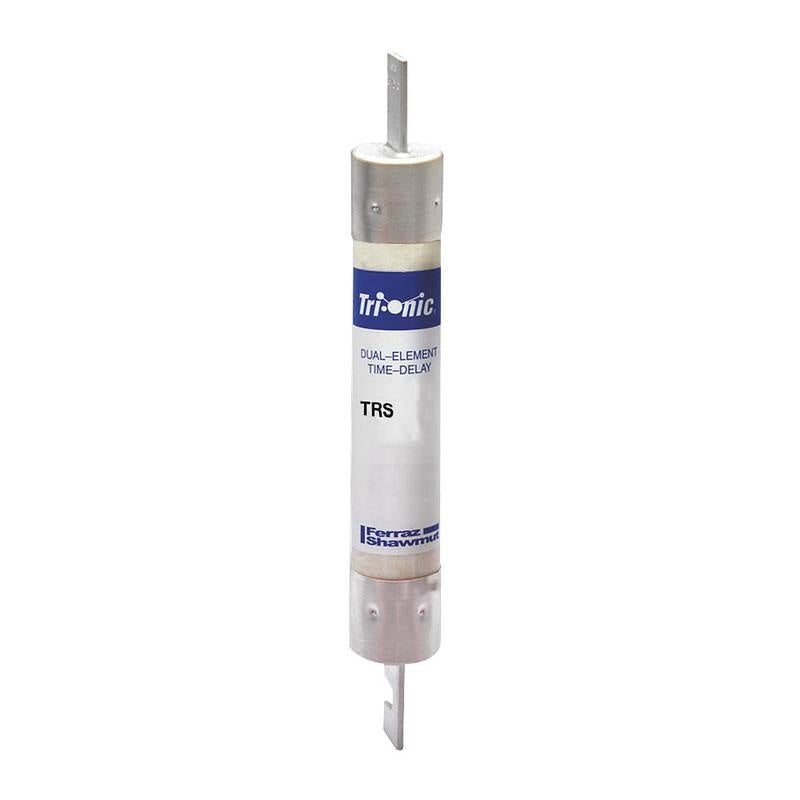

Mersen TRS500R TRS500R 600V 500A 13 3/8X3 1/8 TD

Product Description

The Mersen TRS500R is a 600V, 500A time delay fuse designed for current limiting applications. Its dual-element structure offers superior time delay performance, making it ideal for use in motor circuits and transformers.

• Rated at 500 Amps with a voltage of 600 VAC/VDC.
• Features a cylindrical body with a blade terminal connection.
• Designed for motor circuits, mains, feeders, and general-purpose equipment.

Product Highlights

This fuse provides an effective solution for overcurrent protection, allowing for harmless starting currents and inrush currents associated with motors. It includes a rejection-style design to prevent replacement errors, ensuring safety and reliability in electrical systems.

Product Information

Standard Information

• Manufacturer: Mersen
• Part Number: TRS500R

Technical Specifications

• Type: Current Limiting
• Fuse Class: RK5
• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 500 A
• Interrupt Rating: 200/100 kA
• Body Size: 3-1/8 inches Diameter x 13-3/8 inches Length
• Mounting Type: Clip
• Material: Polyester
