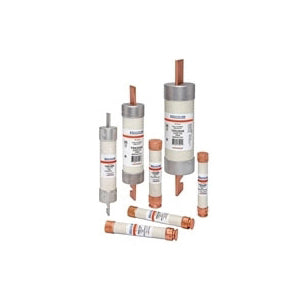

Mersen TRS350R Current Limiting Low Voltage Time Delay Fuse 350 A 600 VAC/VDC

Product Description

The Mersen TRS350R is a current limiting low voltage time delay fuse rated for 350 Amperes and 600 Volts AC/DC. This fuse is suitable for protecting motors, transformers, service entrance equipment, feeders, and branch circuits. The TRS350R is designed to manage harmless starting currents and inrush currents associated with modern electrical equipment.

• Type: Class RK5 Fuse
• Interrupt Rating: 200/100 kA
• Dimensions: Eleven and five-eighths inches long by two and nine-sixteenths inches diameter

Product Highlights

The TRS350R fuse provides protection against overcurrent events while ensuring reliable operation in demanding conditions.

Product Information

Standard Information

• Manufacturer: Mersen
• Part Number: TRS350R

Technical Specifications

• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 350 A
• Mounting Type: Clip
• Body Size: 2-9/16 in Dia x 11-5/8 in L
• Material: Polyester
• Features: Current limiting, Time-delay, Rejection style design
• UPC: 782001749248
• GTIN: 00782001749248
