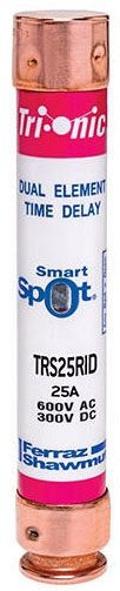

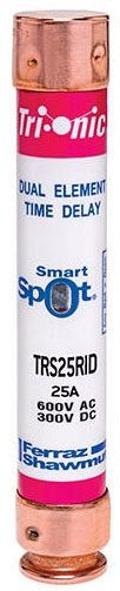

Mersen TRS25RID TRS-R time-delay fuse Class RK5 25 Amps 600V

Product Description

The Mersen TRS25RID is a time-delay fuse designed for overcurrent protection. This fuse provides reliable performance for motors, transformers, and other electrical systems. It is rated for twenty-five amps and operates at six hundred volts. This product is suitable for various applications, including service entrance equipment and branch circuits.

• Current-limiting feature for enhanced safety
• Time-delay capability for managing startup currents
• Rejection-style design to prevent replacement errors

Product Highlights

The Mersen TRS-R fuse is ideal for motor circuit protection and can handle inrush currents effectively.

Product Information

Standard Information

• Brand: Mersen
• MPN: TRS25RID

Technical Specifications

• Voltage Rating: 600 VAC / 300 VDC
• Amperage Rating: 25 A
• Interrupt Rating: 200 kA AC / 20 kA DC
• Body Size: 13/16 inches diameter x 5 inches length
• Terminal Type: Ferrule
• Mounting Type: Clip
• Category: Dual Element Fuses
• Approval: UL 248-12, CSA C22.2
