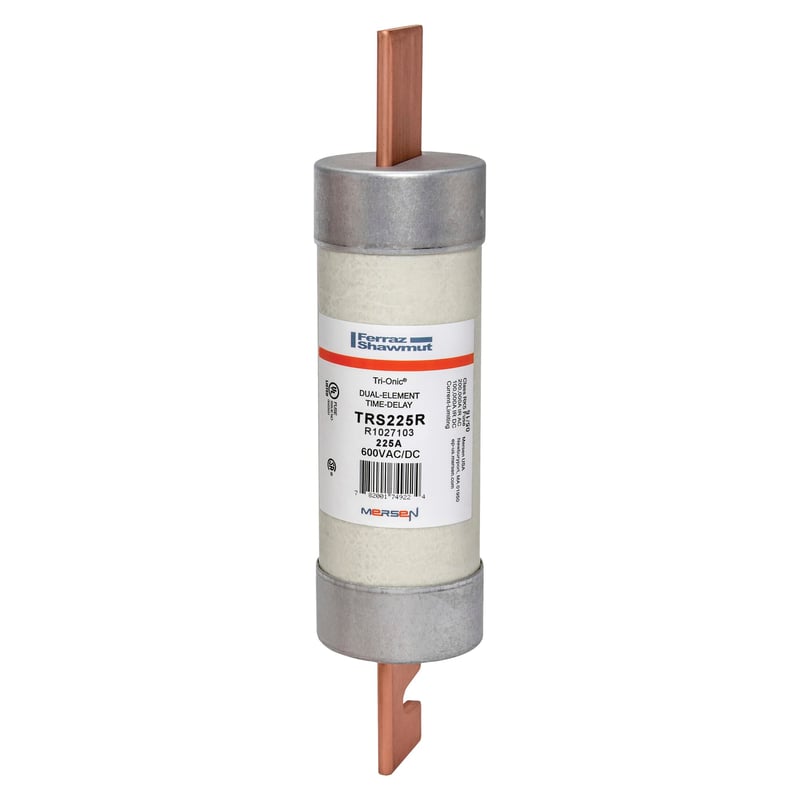

Mersen TRS225R Current Limiting Low Voltage Time Delay Fuse 225A 600VAC/VDC

Product Description

The Mersen TRS225R is a current-limiting low voltage time delay fuse designed for overload protection in various applications. This fuse provides reliable performance for motors and transformers, service entrance equipment, feeders, and branch circuits. With an amperage rating of two hundred twenty-five amps and a voltage rating of six hundred volts, it is suitable for both AC and DC circuits.

• Low voltage with current limiting design
• Class RK5 for enhanced performance
• Time delay function to handle inrush currents

Product Highlights

The TRS225R fuse safely manages harmless starting currents and prevents nuisance openings, making it ideal for industrial applications where motor start-ups occur frequently.

Product Information

Standard Information

• Brand: Mersen
• MPN: TRS225R

Technical Specifications

• Type: FUSE
• Fuse Type: TIME DELAY
• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 225 A
• Interrupt Rating: 200/100 kA
• Body Size: 2-9/16 in Dia x 11-5/8 in L
• Mounting Type: Clip
• Application: Motor circuits, mains, feeders, branch circuits, transformers, service entrance equipment
