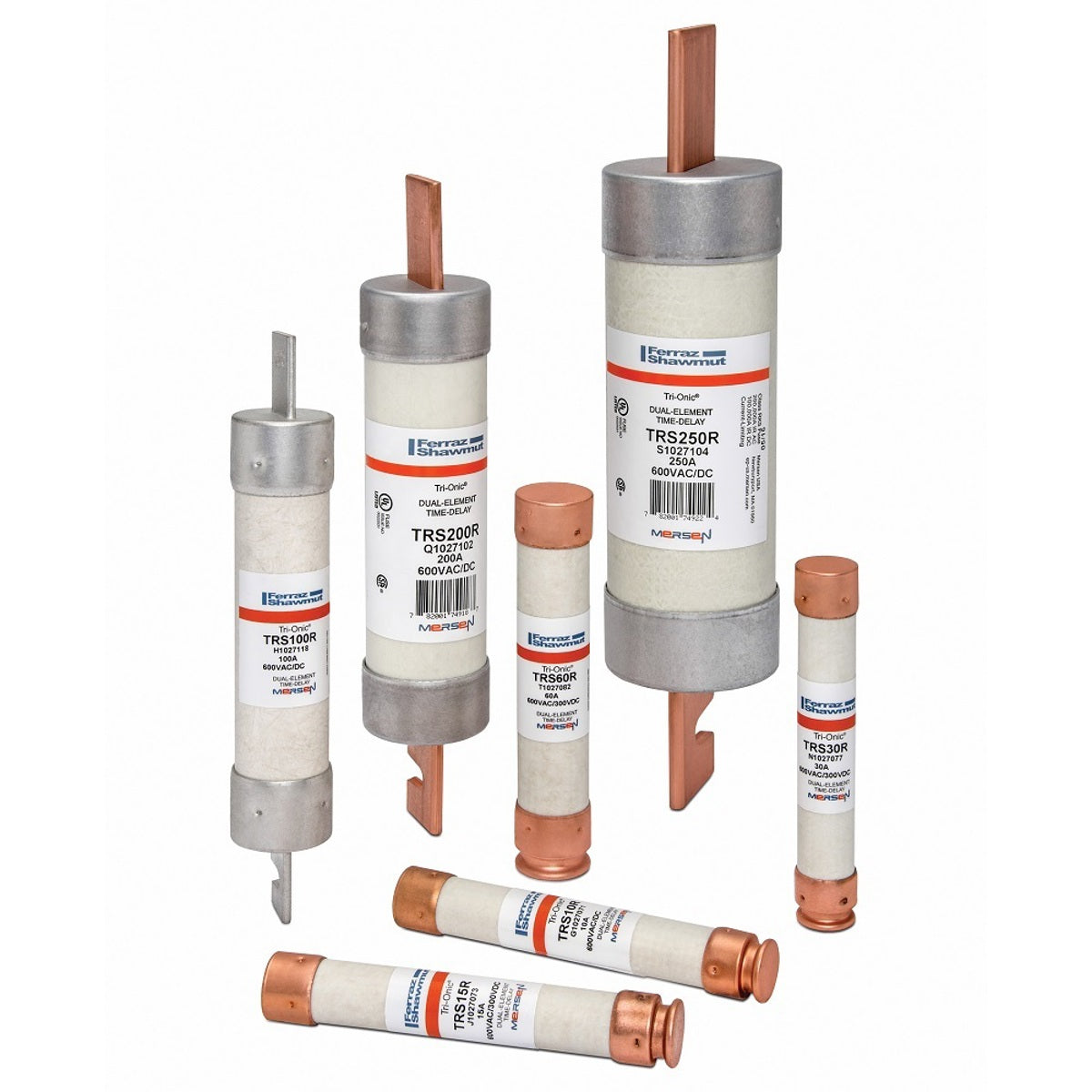

Mersen TRS200R TRS 200 AMP, 600V TIME DELAY/CLASS RK5

Product Description

The Mersen TRS200R is a time-delay fuse designed to protect electrical circuits with a rating of two hundred amperes and up to six hundred volts AC and DC. It is suitable for use in various applications such as motor circuits, mains, feeders, branch circuits, transformers, and general-purpose equipment. This class RK5 fuse offers a blend of thermal and current limiting characteristics to accommodate harmless starting currents and inrush currents without nuisance openings. The robust design ensures reliable performance in demanding environments.

• Two hundred amp rating
• Time delay operation
• Suitable for motor and transformer applications

Product Highlights

The TRS 200 AMP fuse features an easy-to-read label and is designed with a fiberglass body for stability in harsh conditions. Additionally, it includes a metal-embossed date and catalog number for traceability.

Product Information

Standard Information

• Manufacturer: Mersen
• Part Number: TRS200R
• Class: RK5

Technical Specifications

• Voltage Rating: 600V AC/DC
• Amperage Rating: 200A
• Interrupt Rating: 200 kA
• Mounting Type: Clip
• Size: 9.63 inches by 1.81 inches
• Body Style: Cylindrical
• Standards: UL 248-12, CSA C22.2 No. 248.12
• UPC: 782001749187
