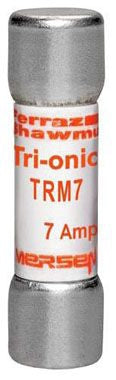

Mersen TRM7 Low-Voltage General Purpose Fuse, 7A at 250V AC, Time-Delay, Midget

Product Description

The Mersen TRM7 is a low-voltage general purpose fuse rated for two hundred fifty volts AC and seven amps. This time-delay fuse is designed to protect small motors, transformers, and other equipment from inrush currents. With a delay of twelve seconds at two hundred percent of its rated load, it offers reliable supplemental protection for various applications.

• Rated for 250 volts AC and 7 amps
• Time-delay feature for high inrush currents
• Compatible with UltraSafe fuse holders

Product Highlights

This fuse is ideal for circuits with high startup loads, such as small motors and lighting circuits. It is designed to handle inrush conditions effectively, ensuring a longer lifespan for your electrical components.

Product Information

Standard Information

• Manufacturer: Mersen
• Type: Fuses

Technical Specifications

• Fuse Type: Low voltage
• Amperage Rating: 7 A
• Voltage Rating: 250 VAC
• Interrupt Rating: 10 kA
• Body Style: Cylindrical
• Mounting Type: Clip
• Response Time: 0.45 seconds
• Country of Origin: Mexico
• Connection Type: Ferrule
