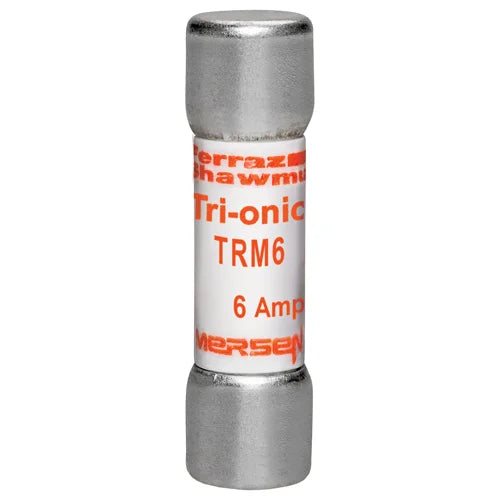

Mersen TRM6 Fuse TRM - Midget - Time-Delay 250VAC 6A Ferrule Tri-Onic

Product Description

The MERSEN TRM6 is a Tri-Onic® TRM time-delay midget fuse rated at 250 volts AC, with an ampere rating of 6A. It provides supplemental protection for small motors, transformers, and high inrush loads in various 250 volt applications. Note that it is not intended for branch circuit protection.

• Time-delay characteristic for handling inrush currents.
• Suitable for small motors and transformers.
• 250VAC voltage rating with a 10kA interrupt rating.

Product Highlights

Offers reliable time-delay protection for sensitive equipment with high inrush current.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: TRM6

Technical Specifications

• Item number: TRM6
• Description: Fuse TRM - Midget - Time-Delay 250VAC 6A Ferrule Tri-Onic
• EAN/UPC Code: 782001746483
• Rated voltage AC UL: 250 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 6 A
• ROHS Compliant: Yes
• AC or DC: AC
• Fuse Class: Midget
• Speed/Characteristic: Time Delay
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 10 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.41 in
• Product Length: 1.5 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: GMG
• Voltage rating: 250 Vac
• Interrupt rating: 10 kA
• Speed: Time Delay
• Class: Midget
• Shape: Cartridge Fuses
• Approvals: UL, CSA, RoHS
• Substitute parts: Bussmann FNM, Littelfuse FLM
• Dimensions: 0.41" Dia x 1.5" L (10.41x38.1mm)
• Body Size: 13/32 in Dia x 1-1/2 in L
• Body Style: Cylindrical
• Series: TRM
• Terminal Type: Ferrule
• Type: Time Delay
• Voltage Rating: 250 VAC
• Application: Small Motors, Small Transformers, Lighting Circuits and Control Circuits
• Standard & Approvals: UL File No. E33925, C22.2 No. 248.14, RoHS Compliant
• Amperage Rating: 6 A
