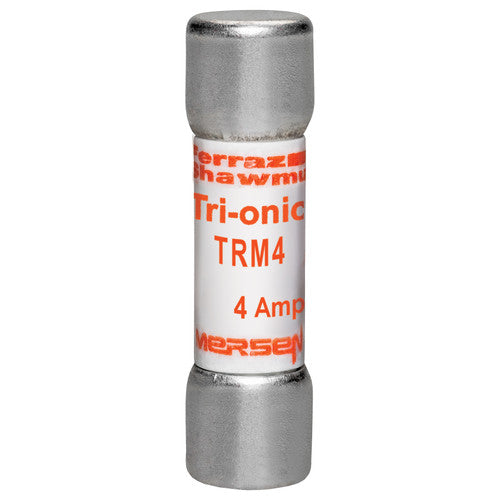

Mersen TRM4 Fuse Low-voltage General Purpose 250V 4A

Product Description

The MERSEN TRM4 is a low-voltage, general-purpose fuse with a time-delay feature. Rated at 250V and 4A, it provides supplemental protection for small motors, transformers, and other high inrush loads. It has a 12-second time delay at 200% rating and an interrupt rating of 10kA. The fuse is UL listed and CSA certified.

• Numerous ratings for a wide variety of applications
• 250 V AC rating in all sizes
• Time-delay for circuits with high inrush current

Product Highlights

This MERSEN TRM4 fuse is ideal for lighting circuits and control circuits. It can be used with UltraSafe Fuseholders.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: TRM4
• Country of Origin: Mexico

Technical Specifications

• Type: FUSES
• Fuse Types: LOW VOLTAGE
• UNSPSC Code: 39121600
• Catalog Number: TRM4
• Manufacturer: Mersen
• Brand: Mersen
• Sub Brand: Tri-Onic®
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 4 A
• Application: Small motors Small transformers Lighting circuits Control circuits
• Connection: Ferrule
• Interrupt Rating: 10 kA
• Mounting: Clip
• Standard: UL listed to standard 248-14 File E33925 CSA Certified to Standard C22.2 No. 248.14
• UPC: 782001743413
• GTIN: 00782001743413
• Item Type: Midget Fuses
• Voltage Rating: 250 V AC
• Fuse Type: Time Delay
• Body Style: Cylindrical
• Series: TRM
• Response Time: 0.065 sec
• Body Material: Epoxy Polymer
• Contact Material: Tin-plated Copper
• Current Rating: 4 A
• Manufacturer Part Number: TRM4
• Numeric ID: 2510416
• Primary Type: Single Use Fuses
• Speed: Time Lag sec
• Standards: UL Listed to Standard 248-14 CSA Certified to Standard C22.2 No. 248.14 RoHS Compliant
• Termination: Cartridge
• AC Voltage Rating: 250V
• Connection Material: Tin-Plated Copper
• Mfr. #: TRM4
• Mfr.: Mersen
• Fuse Size: 1 1/2x13/32 MID TD
• Time Delay: 12-second time delay at a 200% rating
