MERSEN Mersen TRM3/10 250V 3/10A 1 1/2X13/32 Mid Td
MERSEN Mersen TRM3/10 250V 3/10A 1 1/2X13/32 Mid Td

Mersen TRM3/10 250V 3/10A 1 1/2X13/32 Mid Td

Brand: MERSEN
SKU: TRM3/10
Availability: Out Of Stock
$22.00
$22.00
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

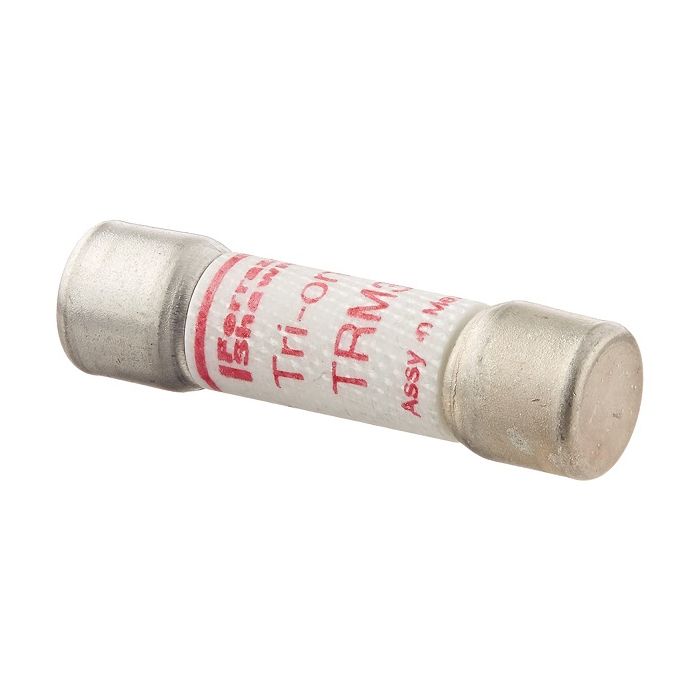

The Mersen TRM3/10 is a 250V 3/10A 1 1/2X13/32 MID TD fuse. This Tri-Onic time delay midget fuse is rated for 250 VAC and provides supplemental protection for small motors, transformers, and other high inrush loads. It features a 12-second time delay at 200% of the rated load.

  • Time-delay for circuits with high inrush current
  • Tin-plated copper contact
  • Can be used with UltraSafe™ fuse holders

Product Highlights

Mersen TRM series fuses provide reliable supplemental protection for various 250V applications with high inrush current.

Product Information

Standard Information

  • Brand: MERSEN
  • Manufacturer Part Number: TRM3/10
  • Country of Origin: MX
Technical Specifications
Type
FUSES
Fuse Types
LOW VOLTAGE
UNSPSC Code
39121600
Class
Midget
Series
TRM
Material
Poly Tube
Body Size
13/32 in Dia x 1-1/2 in L
Body Type
Cylindrical
Mounting Type
Clip
Terminal Type
Ferrule
Voltage Rating
250 VAC
Amperage Rating
0.3 A
Interrupt Rating
10 kA
Country of Origin
MX
Rejection/Non-Rejection
Non-Rejection
Catalog Number
TRM3/10
Manufacturer
Mersen
Brand
Mersen
Sub Brand
Tri-Onic
Made in USA
No
Application
Small motors Small transformers Lighting circuits Control circuits
Connection
Ferrule
Special Features
Numerous ratings for a wide variety of applications 250VAC rating in all sizes up to 30A Time-delay for circuits with high inrush currrent Can be used with UltraSafeTM fuse holders 1 1/2" x 13/32" (10mm x 38mm) dimensions
Standard
UL listed to standard 248-14 File E33925 CSA Certified to Standard C22.2 No. 248.14
UPC
782001743079
GTIN
00782001743079
Item Type
Midget Fuses
Size
1.5 x 0.41
Current Rating
3/10 Ampere
Diameter
0.41 Inch
Length
1.5 Inch
Approval
UL 248-14, CSA C22.2
Body Material
Poly Tube, Glass-Melamine Laminate
Contact Material
Tin Plated Copper
Time Delay
Tri-Onic® Time Delay
Physical Size
13/32" x 1 1/2"
Time Delay at 200% Rating
12 Seconds
Ampere
0.3 A
Voltage rating
250 Vac
Speed
Time Delay
Shape
Cartridge Fuses
Approvals
UL, CSA, RoHS
Substitute parts
Bussmann FNM, Littelfuse FLM
Dimensions
0.41" Dia x 1.5" L (10.41x38.1mm)
Mpn
TRM3-10
