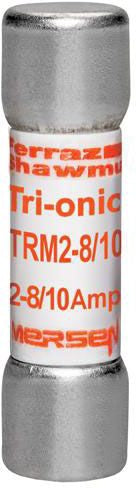

Mersen TRM2-8/10 250V Midget Time-delay Fuse 10-pack

Product Description

The MERSEN TRM2-8/10 is a 250-volt midget time-delay fuse rated at 8/10 amp, designed for use in low-amperage branch circuits and control circuits found in HVAC equipment, motor control panels, and light industrial applications. The time-delay characteristic allows the fuse to tolerate brief inrush currents without nuisance opening while still providing reliable overcurrent protection. Each pack contains 10 fuses, making it a practical choice for service technicians stocking a van or a shop. Installation follows standard midget fuse holder requirements, and the compact form factor fits the 13/32-inch by 1-1/2-inch midget fuse block format common in commercial and residential control panels.

This fuse is suited for residential and light commercial HVAC control circuits, transformer secondary protection, small motor loads, and instrumentation panels where a 250-volt, sub-one-amp time-delay device is required. The 10-per-pack quantity supports both field service calls and bench stock replenishment for electrical and HVAC contractors.

Key Features

• 250-volt midget fuse rating for use in low-voltage control and branch circuits
• Time-delay design tolerates motor and transformer inrush without nuisance tripping
• 8/10-amp current rating suits sub-one-amp overcurrent protection applications
• 10-fuse pack reduces per-unit cost for shops and field service stock
• Compact midget body fits standard 13/32-inch by 1-1/2-inch midget fuse holders

Compatibility

Designed as an OEM-style replacement midget time-delay fuse for use in standard 13/32-inch by 1-1/2-inch midget fuse holders rated for 250 volts or higher.

Installation Notes

Fuse replacement should be performed by a qualified electrician or licensed HVAC technician. Always de-energize and lock out the circuit before removing or installing a fuse, following NFPA 70E safe work practices. Verify that the replacement fuse matches the voltage rating, amperage, and time-delay class of the original before installation. Never substitute a fuse with a higher current rating to resolve repeated opening events; investigate the underlying fault first.

Technical Specifications

• Voltage Rating: 250 volts
• Current Rating: 8/10 amp
• Fuse Type: Midget Time-Delay
• Quantity per Pack: 10
• Length: 1.62 inches
• Width: 0.88 inches
• Height: 2.12 inches
• Weight: 0.13 pounds
• UPC: 78200174335

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: TRM2-8/10
